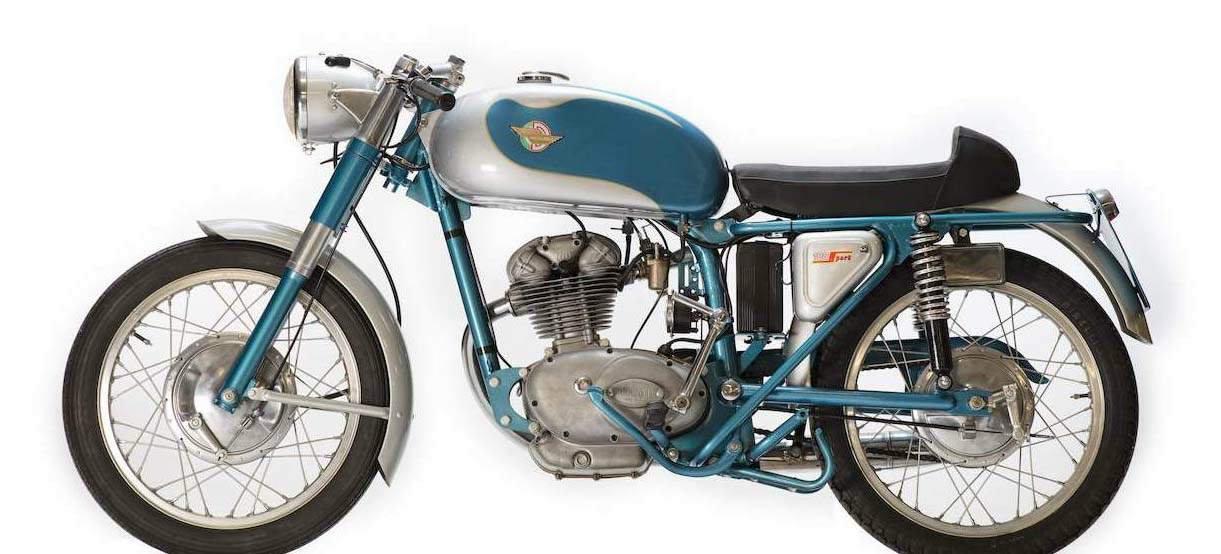

Ducati 100 Sport (1958-60) technical specifications

Ducati 100 Sport is produced in 1958-60. Engine is Four stroke, single-cylinder, OHC, shaft and bevel gears exhaust valve, displacement 98 cc / 6.0 cu in , produces power 6 kW / 8 hp @ 8000 rpm. Ducati 100 Sport top speed is 105 km/h / 65 mph. Ducati 100 Sport weighs 100 kg / 220 lbs. Ducati 100 Sport has 4 photos.

Technical specifications

+ Add to 'Compare list'

Model:	100 Sport
Years:	1958-60
Engine:	Four stroke, single-cylinder, OHC, shaft and bevel gears exhaust valve
Capacity:	98 cc / 6.0 cu in
Bore x Stroke:	49 x 52 mm
Compression Ratio:	9.0:1
Cooling System:	Air cooled
Lubrication System:	Forced oil sump
Induction:	Dell'Orto MA18B
Ignition:	Battery coil, 6V 40W generator
Spark Plug:	Marelli CW260N
Battery:	SAFA 3L3, 13.5 Ah
Starting:	Kick
Max Power:	6 kW / 8 hp @ 8000 rpm
Clutch:	Wet, multi-plate
Primary Drive Ratio:	3.00:1
Transmission:	4 Speed
Gear Ratios:	1st 2.75 / 2nd 1.65 / 3rd 1.18 / 4th 0.97:1
Final Drive:	Chain
Final Drive Ratio:	3.066:1
Frame:	Single tube, open cradle frame in tubular steel
Front Suspension:	Hydraulically damped telescopic forks, Marzocci
Rear Suspension:	Swingarm, dual shocks, 3-way adjustable
Front Brakes:	Drum, Amadori
Rear Brakes:	Drum, Amadori
Front Tyre:	2.50 -17 CEAT
Rear Tyre:	2.75 -17 CEAT
Dimensions:	Length:1910 mm / 72.2 in Width: 580 mm / 22.8 in Height: 920 mm / 36.2 in
Wheelbase:	1320 mm / 52.0 in in
Seat Height:	750 mm / 29.5 in
Dry Weight:	100 kg / 220 lbs
Fuel Capacity:	17 L / 4.5 US gal / 3.7 Imp gal
Top Speed:	105 km/h / 65 mph
