Technical specifications
|
| Model: |

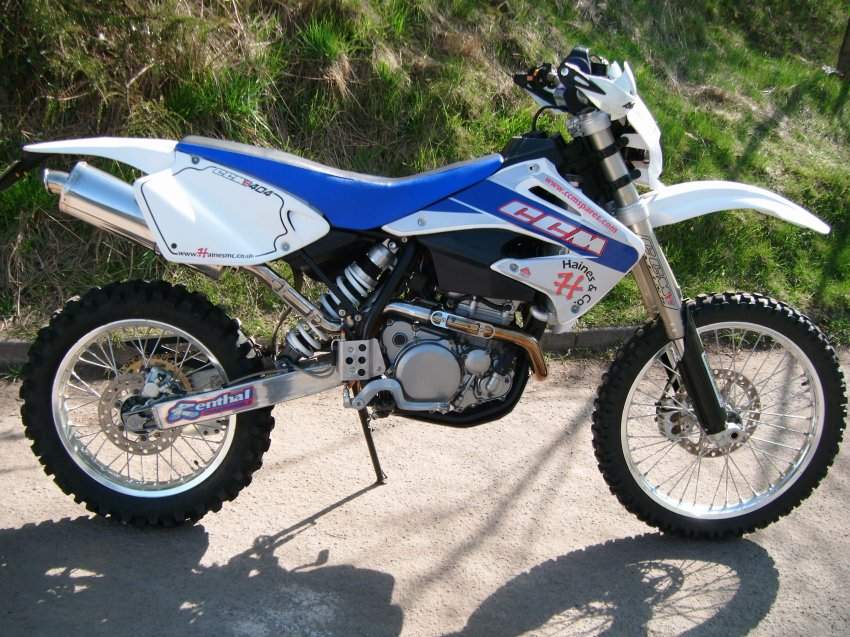

404 DS Trail |
| Years: |
2006-07 |
|
Engine:
|
Four stroke, single cylinder, DOHC, 4 valves
|
|
Capacity:
|
398 cc / 24.3 cu in
|
|
Bore x Stroke:
|
90 x 62.6 mm
|
|
Compression Ratio:
|
12.2:1
|
|
Lubrication System:
|
Dry sump
|
|
Cooling System:
|
Liquid cooled
|
|
Exhaust:
|
Stainless steel with stainless steel silencer
|
|
Induction:
|
Keihin FCR 39
|
|
Ignition:
|
Electronic CDI
|
|
Starting:
|
Electric
|
|
Battery:
|
YUASA 6.5 Ah
|
|
Max Power:
|
39.5 kW / 53 hp @ 7000 rpm
|
|
Transmission:
|
5 Speed
|
|
Final Drive:
|
Chain, 520 Heavy duty, O-ring
|
|
Frame:
|
Aluminium triple box, swingarm
|
|
Rake:
|
28.5°
|
|
Trail:
|
126 mm / 4.9"
|
|
Front Suspension:
|
WP 48mm adjustable for compression and rebound
|
|
Front Wheel Travel:
|
275 mm / 10.8"
|
|
Rear Suspension:
|
WP PDS adjustable for compression, rebound and preload
|
|
Rear Wheel Travel:
|
256 mm / 10.1"
|
|
Front Brakes:
|
Single 260 mm disc, Brembo 2 piston caliper
|
|
Rear Brakes:
|
Single 220 mm disc, Brembo 1 piston caliper
|
|
Front Tyre:
|
90/90-21
|
|
Rear Tyre:
|
120/70-18
|
|
Wheelbase:
|
1501 mm / 59.1 in
|
|
Ground Clearance:
|
352 mm / 13.9"
|
|
Seat Height:
|
950 mm / 37.4 in
|
|
Dry Weight:
|
124 kg / 273.4 lb
|
|
Fuel Capacity:
|
11 L / 2.9 US gal
|
