Cagiva Navigator 1000 (2000-01) technical specifications

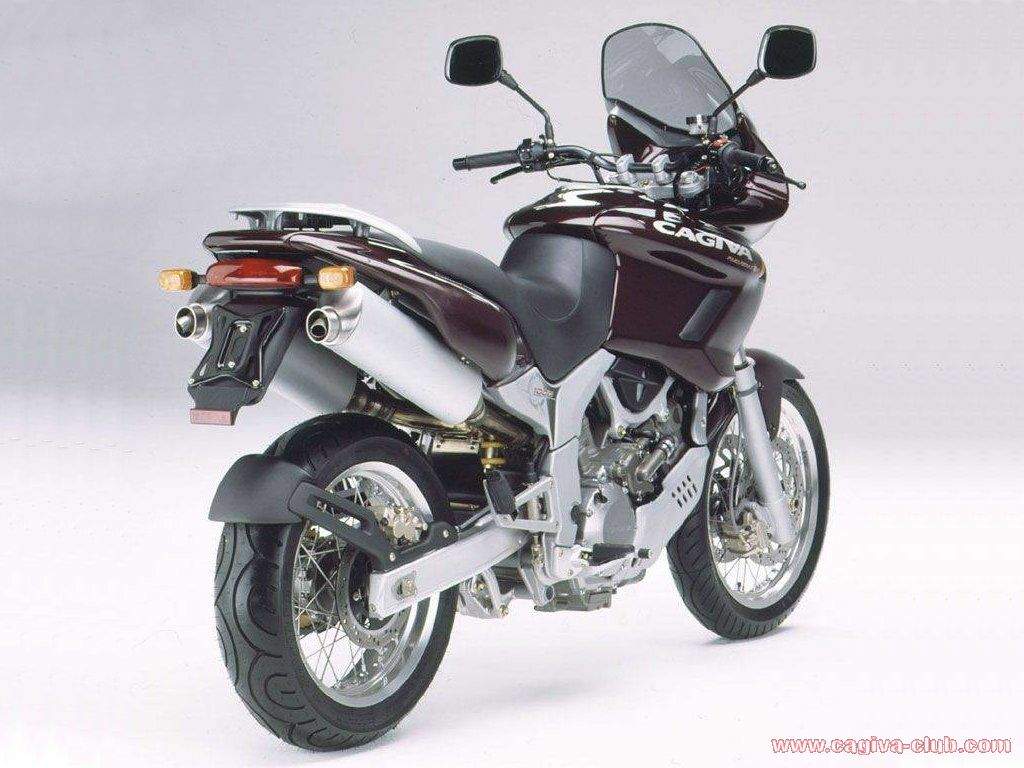

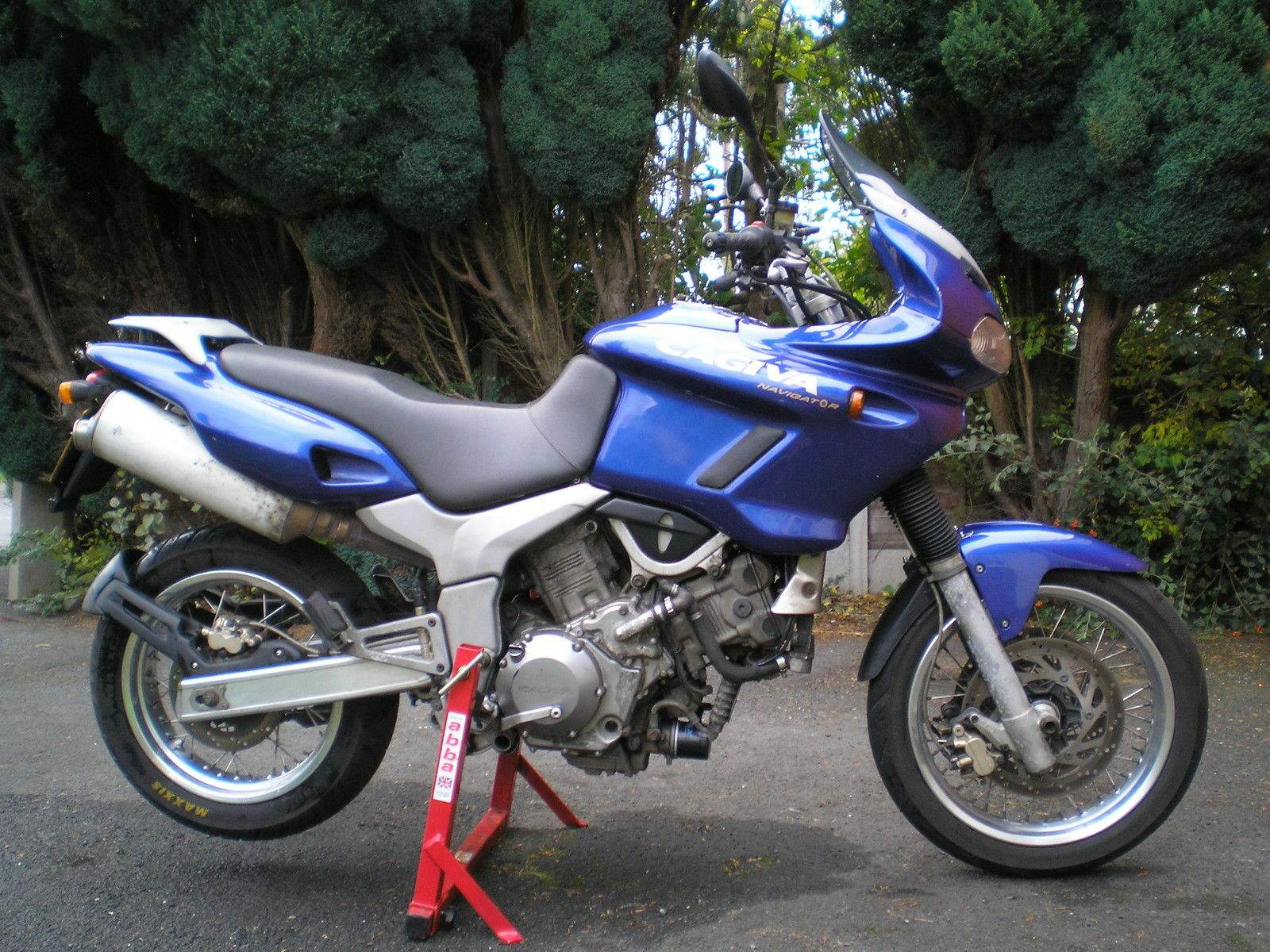

Cagiva Navigator 1000 is produced in 2000-01. Engine is Four stroke, 90°-V-twin, DOHC, 4 valves per cylinder (Suzuki TL1000), displacement 996 cc / 60.7 cu-in , produces power 99 ho / 73 kW @ 8500 rpm and 95 Nm / 9.7 kgf-m @ 7000 rpm. Cagiva Navigator 1000 top speed is 211.6 km/h. Cagiva Navigator 1000 weighs 210 kg / 463 lbs. Cagiva Navigator 1000 has 4 photos.
Technical specifications
+ Add to 'Compare list'Model: | Navigator 1000 |
Years: | 2000-01 |
Engine: | Four stroke, 90°-V-twin, DOHC, 4 valves per cylinder (Suzuki TL1000) |
Capacity: | 996 cc / 60.7 cu-in |
Bore x Stroke: | 98 X 66 mm |
Cooling System: | Liquid cooled |
Compression Ratio: | 11.3:1 |
Induction: | Electronic fuel injection |
Ignition: | Electronic, transistorized |
Starting: | Electric |
Max Power: | 99 ho / 73 kW @ 8500 rpm |
Max Torque: | 95 Nm / 9.7 kgf-m @ 7000 rpm |
Clutch: | Cable-operated multi-plate wet clutch. |
Transmission: | 6 Speed |
Final Drive: | Chain |
Front Suspension: | 45mm Telescopic hydraulic fork |
Front Wheel Travel: | 150 mm / 5.9 in |
Rear Suspension: | Progressive with hydraulic monoshock, preload and rebound damping adjustable. |
Rear Wheel Travel: | 160 mm / 6.3 in |
Front Brakes: | 2x 298mm discs 4 piston calipers |
Rear Brakes: | Single 220mm disc 2 piston caliper |
Front Tyre: | 110/80-18 |
Rear Tyre: | 150/70-17 |
Seat Height: | 850 mm / 33.5 in |
Ground Clearance: | 150 mm / 5.9 in |
Dry Weight: | 210 kg / 463 lbs |
Wet Weight: | 225 kg / 496 lbs |
Fuel Capacity: | 20 Litres / 5.3 US gal |
Consumption Average: | 17.3 km/lit |
Standing ¼ Mile: | 12.0 sec |
Top Speed: | 211.6 km/h |
