Technical specifications
|
| Model: |

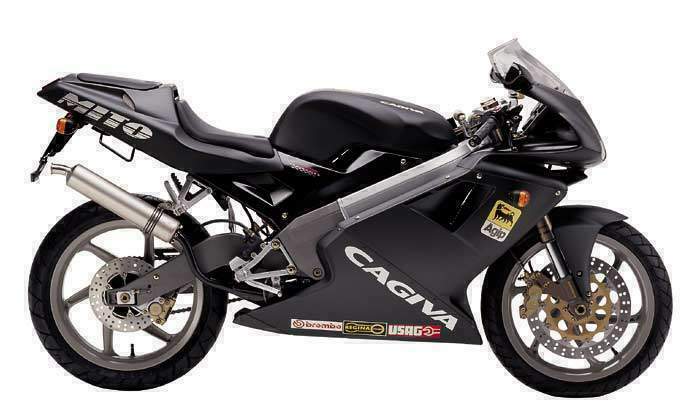

Mito 125 |
| Years: |
2002-03 |
|
Engine:
|
Two stroke, single cylinder, electric variable power read valve
|
|
Capacity:
|
125.6 cc / 7.6 cu-in
|
|
Bore x Stroke:
|
56 x 50.6 mm
|
|
Compression Ratio:
|
6.3:1
|
|
Cooling System:
|
Liquid cooled
|
|
Induction:
|
Dell'Orto carb
|
|
Ignition:
|
CDI
|
|
Starting:
|
Electric
|
|
Max Power:
|
34 hp / 24.8 kW @ 12000 rpm
|
|
Max Torque:
|
23 Nm / 16.9 lb-ft @ 11000 rpm
|
|
Clutch:
|
Wet, multiple discs, cable operated
|
|
Transmission:
|
6 Speed
|
|
Final Drive:
|
Chain
|
|
Front Suspension:
|
40mm Marzocchi telescopic forks
|
|
Front Wheel Travel:
|
120 mm / 4.7 in
|
|
Rear Suspension:
|
Progressive with hydralyc shock, adjustable spring preload
|
|
Rear Wheel Travel:
|
133 mm / 5.2 in
|
|
Front Brakes:
|
Single 320mm disc 4 piston caliper
|
|
Rear Brakes:
|
Single 230mm disc 2 piston caliper
|
|
Front Tyre:
|
110/70 ZR17
|
|
Rear Tyre:
|
150/60 ZR17
|
|
Dimensions:
|
Height 1100 mm / 43.3 in Length 1980 mm / 78.0 in
|
|
Wheelbase:
|
1375 mm / 54.1 in
|
|
Seat Height:
|
760 mm / 29.9 in
|
|
Ground Clearance:
|
150 mm / 5.9 in
|
|
Dry Weight:
|
129.0 kg / 284.4 lbs
|
|
Fuel Capacity:
|
14 Litres / 3.7 US gal
|
