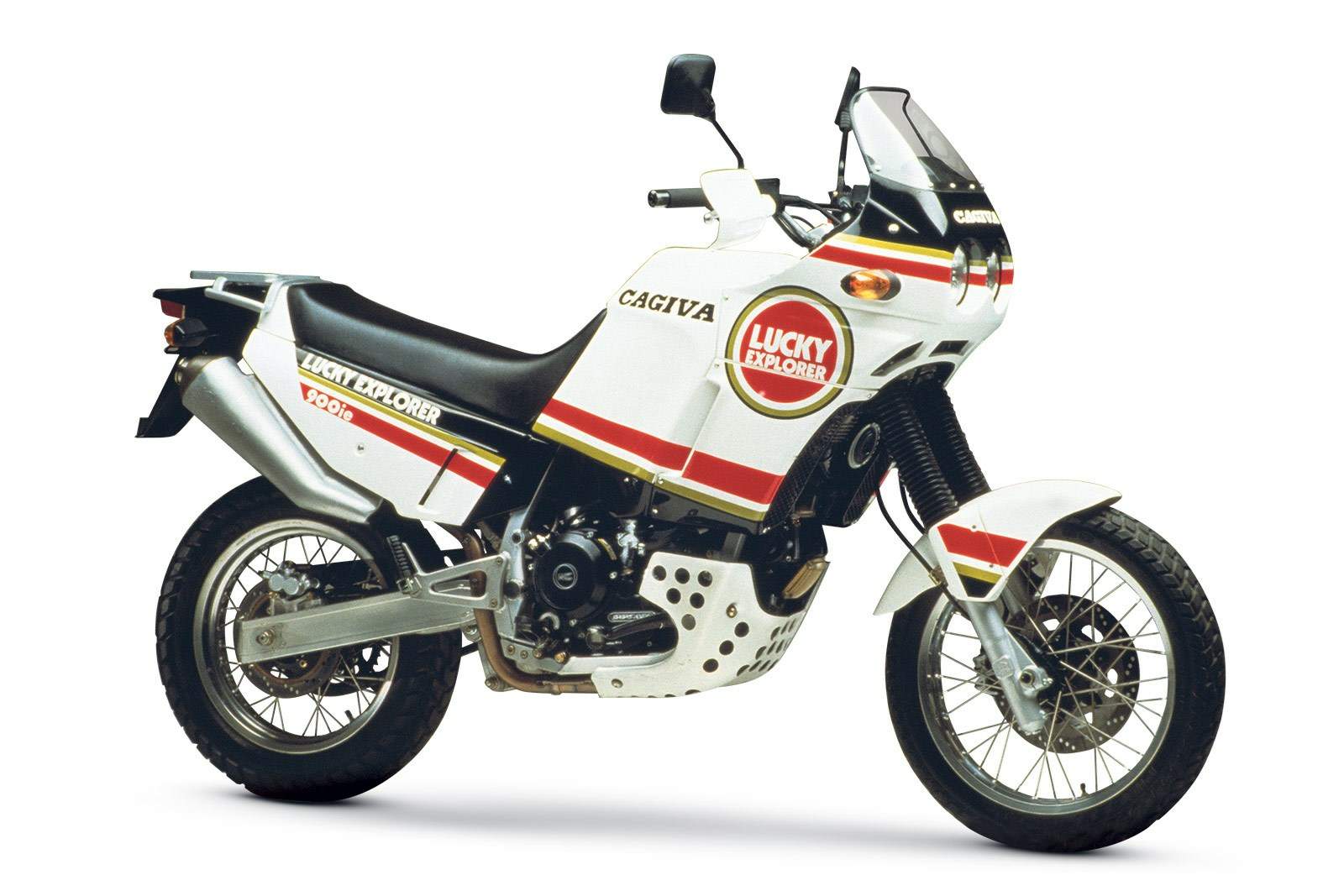

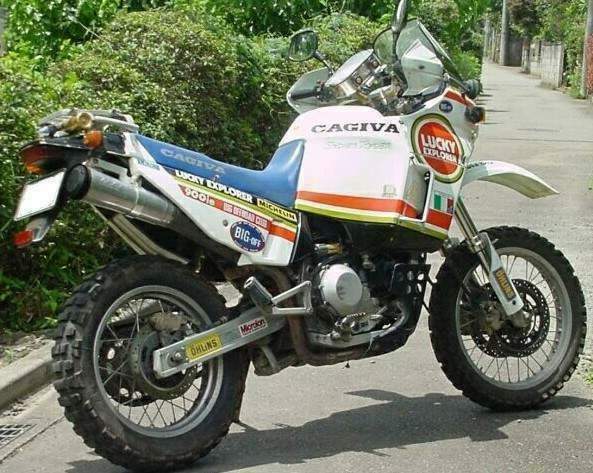

Cagiva Elefant 900ie Lucky Explorer (1992) technical specifications
Cagiva Elefant 900ie Lucky Explorer is produced in 1992. Engine is Four stroke, 90° “L” twin cylinder, SOHC, desmodromic 2 valve per cylinder, displacement 904 cc / 55.1 cu-in , produces power 68 hp / 49.6 kW @ 8000 rpm and 78 Nm / 57.5 lb-ft @ 5250 rpm. Cagiva Elefant 900ie Lucky Explorer top speed is 190.2 km/h / 118 mph. Cagiva Elefant 900ie Lucky Explorer weighs 189 kg / 416.6 lbs. Cagiva Elefant 900ie Lucky Explorer has 3 photos.
Technical specifications
+ Add to 'Compare list'| Model: | Elefant 900ie Lucky Explorer |
| Years: | 1992 |
| Engine: | Four stroke, 90° “L” twin cylinder, SOHC, desmodromic 2 valve per cylinder |
| Capacity: | 904 cc / 55.1 cu-in |
| Bore x Stroke: | 92 x 68 mm |
| Cooling System: | Air cooled |
| Compression Ratio: | 9.2:1 |
| Induction: | 42mm Weber L.A.W fuel injection |
| Ignition: | Marelli electronic inductive discharge |
| Starting: | Electric |
| Max Power: | 68 hp / 49.6 kW @ 8000 rpm |
| Max Power Rear Tyre: | 63.0 hp @ 7900 rpm |
| Max Torque: | 78 Nm / 57.5 lb-ft @ 5250 rpm |
| Clutch: | Dry Multi-disc |
| Transmission: | 5 Speed |
| Final Drive: | Chain |
| Frame: | Double steel tubular cradle |
| Front Suspension: | 42.7mm Marzocchi clamped stanchion telescopic forks non adjustable |
| Rear Suspension: | Öhlins Rising rate box, monoshock adjustable for preload |
| Front Brakes: | Single 296mm disc |
| Rear Brakes: | Single 240mm disc 4 piston caliper |
| Front Tyre: | 100/90-19 |
| Rear Tyre: | 140/80-17 |
| Dimensions: | Length 2295 / 90.3 in Width 860 mm / 33.8 in Height 970 mm / 38.1 in |
| Wheelbase: | 1570 mm / 61.8 in |
| Seat Height: | 900 mm / 35.4 in |
| Ground Clearance: | 260 mm / 10.2 in |
| Dry Weight: | 189 kg / 416.6 lbs |
| Wet Weight: | 208 kg / 458.5 lbs |
| Fuel Capacity: | 24 Litres / 6.3 US gal |
| Consumption average: | 17.5 km/lit |
| Braking 60 - 0 / 100 - 0: | 14.0 m / 40.6 m |
| Standing ¼ Mile: | 12.8 sec / 160.9 km/h |
| Top Speed: | 190.2 km/h / 118 mph |
| Road Test: | Motosprint Adventure Group Test 1990 |
| Manual: | 1990 900ie Work Shop Manual / 1991 900ie GT Work Shop Manual / EFI information |
