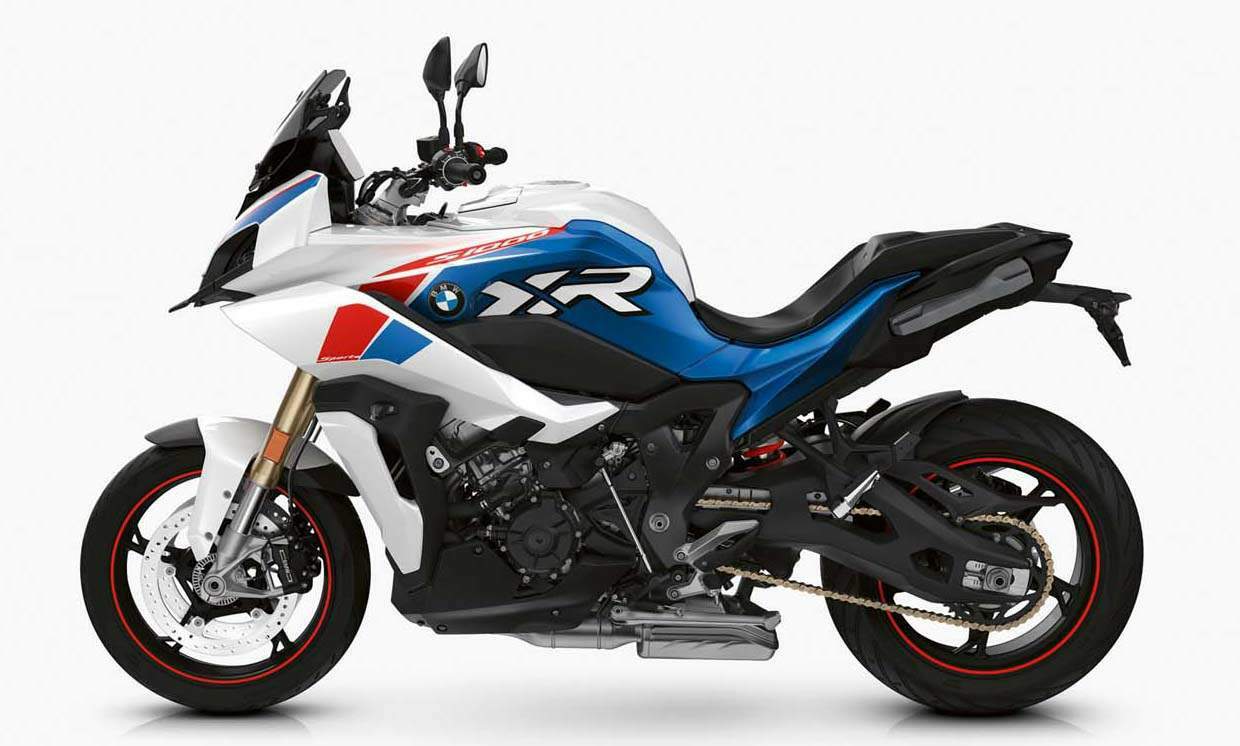

BMW S 1000XR (2021) technical specifications

BMW S 1000XR is produced in 2021. Engine is Four stroke, transverse four cylinder, DOHC, 4 valves per cylinder, Intake/outlet mm 33.5/27.2, displacement 999 cc / 60.9 cu-in , produces power 121 kW / 165 hp @ 11000 rpm and 114 Nm / 84 lb-ft @ 9250 rpm. BMW S 1000XR wet weight is 226 kg / 498 lbs. BMW S 1000XR has 4 photos.

Technical specifications

+ Add to 'Compare list'

Model:	S 1000XR
Years:	2021
Engine:	Four stroke, transverse four cylinder, DOHC, 4 valves per cylinder, Intake/outlet mm 33.5/27.2
Capacity:	999 cc / 60.9 cu-in
Bore x Stroke:	80 x 49.7 mm
Cooling System:	Liquid/oil cooled
Compression Ratio:	12.5:1
Lubrication:	Wet sump
Mixture Control:	Electronic injection, throttle valve 48 mm
Engine Management:	Electronic intake pipe injection
Emission Control:	Regulated three-way catalytic converter - EURO5
Starting:	Electric
Max Power:	121 kW / 165 hp @ 11000 rpm
Max Torque:	114 Nm / 84 lb-ft @ 9250 rpm
Clutch:	Multiplate clutch in oil bath, slipper clutch, self-reinforcing
Transmission:	Six-speed synchromesh gearbox with spur gears
Final Drive:	Chain drive, 17/45
Primary Ratio:	1.652
Gear Ratio:	1st 2.647 2nd 2.091 3rd 1.727 4th. 1.476 5th 1.304 lth. 1.167
Transmission Ratio:	2.647
Frame:	Aluminum composite bridge frame, partially self-supporting engine
Front Suspension:	45mm Upside-down telescopic fork electronic self-adjusting rebound/compression damping (Dynamic ESA)
Front Wheel Travel:	150 mm / 5.9 in
Rear Suspension:	Aluminium double-sided swing-arm, central spring strut, electronic preload adjuster, electronic self-adjusting rebound/compression damping (Dynamic ESA)
Rear Wheel Travel:	150 mm / 5.9 in
Front Brakes:	2x 320mm floating discs, radial four-piston fixed calipers
Rear Brakes:	Single 265mm disc brake, twin-piston floating caliper
ABS:	BMW Motorrad Race ABS, partially integral
Traction Control:	BMW Motorrad DTC
Wheels:	Cast aluminum wheels
Front Rim:	3.50 x 17
Rear Rim:	6.00 x 17
Front Tyre:	120/70 ZR 17
Rear Tyre:	190/55 ZR 17
Castor:	116 mm / 4.6 in
Steering Head Angle:	65.1°
Dimensions:	Length 2333 mm / 91.8 in Width 917 mm / 36.1 Height 411 mm / 55.5 in
Wheelbase:	1522 mm / 59.9 in
Seat Height:	840 mm / 33.0 in - 790 mm / 31.1 with optional lowered suspension
Wet Weight:	226 kg / 498 lbs
Fuel Capacity:	20 Litres / 5.2 US gal
