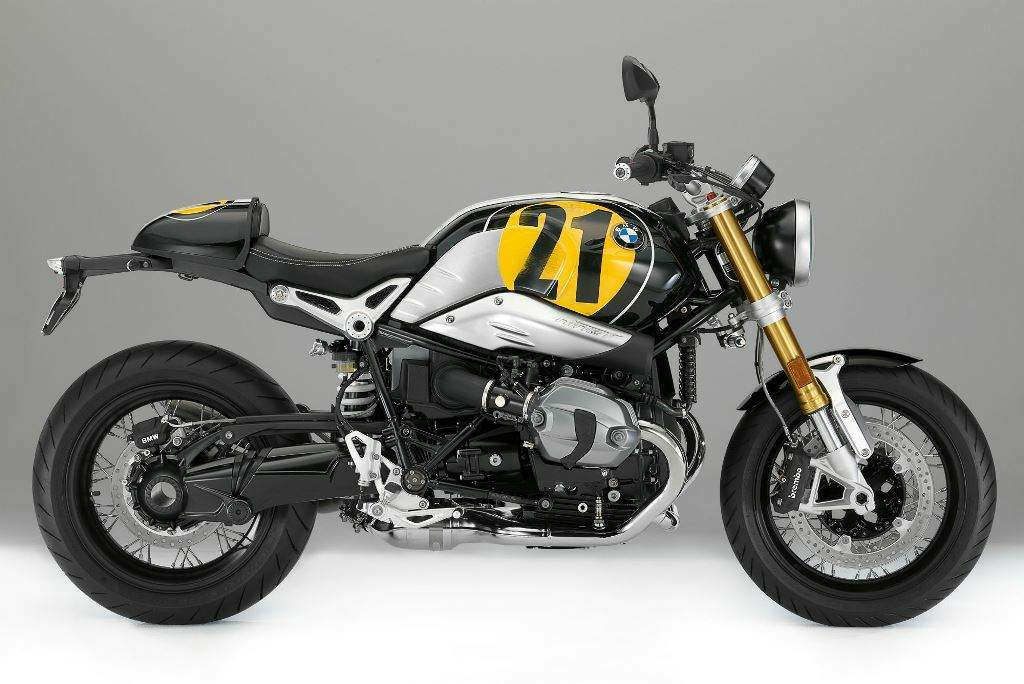

BMW RNineT (2017-18) technical specifications

BMW RNineT is produced in 2017-18. Engine is Four stroke, two cylinderhorizontally opposed Boxer, two camshafts and four radially alignedvalves per cylinder, central counterbalancer shaft., displacement 1170 cc /71.4 cub in. , produces power 81 kW / 110 hp @ 7550 rpm and 116 Nm / 11.8 kgf-m/ 85.6 lb-ft @ 6000rpm. BMW RNineT weighs 220kg / 485 lbs. BMW RNineT has 5 photos.

Technical specifications

+ Add to 'Compare list'

Model:	RNineT
Years:	2017-18
Engine:	Four stroke, two cylinderhorizontally opposed Boxer, two camshafts and four radially alignedvalves per cylinder, central counterbalancer shaft.
Capacity:	1170 cc /71.4 cub in.
Bore x Stroke:	101 x 73 mm
Cooling System:	Air/Oil cooled
Compression Ratio:	12.0:1
Lubrication:	Wetsump
Induction:	Electronic intake pipe injection / digital enginemanagement with overrun cutoff, twin-spark ignition
Emission Control:	Controlled 3-way catalytic converter, exhaust emissionstandards EU-4
Alternator:	Three-phase alternator 600W
Battery:	12 V / 14 Ah, maintenance-free
Starting:	Electric
Max Power:	81 kW / 110 hp @ 7550 rpm
Max Torque:	116 Nm / 11.8 kgf-m/ 85.6 lb-ft @ 6000rpm
Clutch:	Single dry plate clutch, hydraulically operated
Transmission :	Constant mesh6-speed
Final Drive:	Shaft
Gear Ratios:	Ist 2.375 / 2nd 1.696 /3rd 1.296 / 4th 1.065 / 5th 0.939 / 6th0.848:1
Frame:	Four-part frame concept with front frameand three-part rear frame, load-bearing engine-gearbox unit,rear-seat frame removeable for one-up riding
Front Suspension:	Upside-down telescopic forks, 46 mm fixed-fork-tube diameter
Front Wheel Travel:	120 mm / 4.7 in
Rear Suspension:	Cast aluminium single swinging arm with BMW MotorradParalever; central spring strut,spring preload fully adjustable byhook wrench, adjustable rebound-stage damping
Rear Wheel Travel:	120 mm / 4.7 in
Front Brakes:	2 x 320 mm Foating brake discs, 4 pistonradial calipers
Rear Brakes:	Single 265 mmdisc, 2 piston floating caliper
ABS:	BMW Motorrad ABS
Rim Front:	3.50 x 17, Cast alloy
Rim Rear:	5.50 x 17, Cast alloy
Front Tyre:	120/70 - ZR17
Rear Tyre:	180/55 - ZR17
Castor:	107.9mm / 4.2in
Steering Head Angle:	63.2 °
Dimensions:	Length 2110 mm/ 83.1 inWidth 900 mm / 35.4in (incl.mirrors) Height 1240 mm /48.8 in (excl.mirrors)
Wheelbase:	1522 mm / 59.9 in
Seat Height:	820 mm / 32.3in
Inner Leg Curve:	1795 mm / 70.7 in unladen
GVWR:	430kg / 948 lbs
Dry Weight:	220kg / 485 lbs
Fuel Capacity :	18 Litres / 4.7 US gal / 3.7 Impgal
