BMW R NineT Urban G/S (2017-18) technical specifications

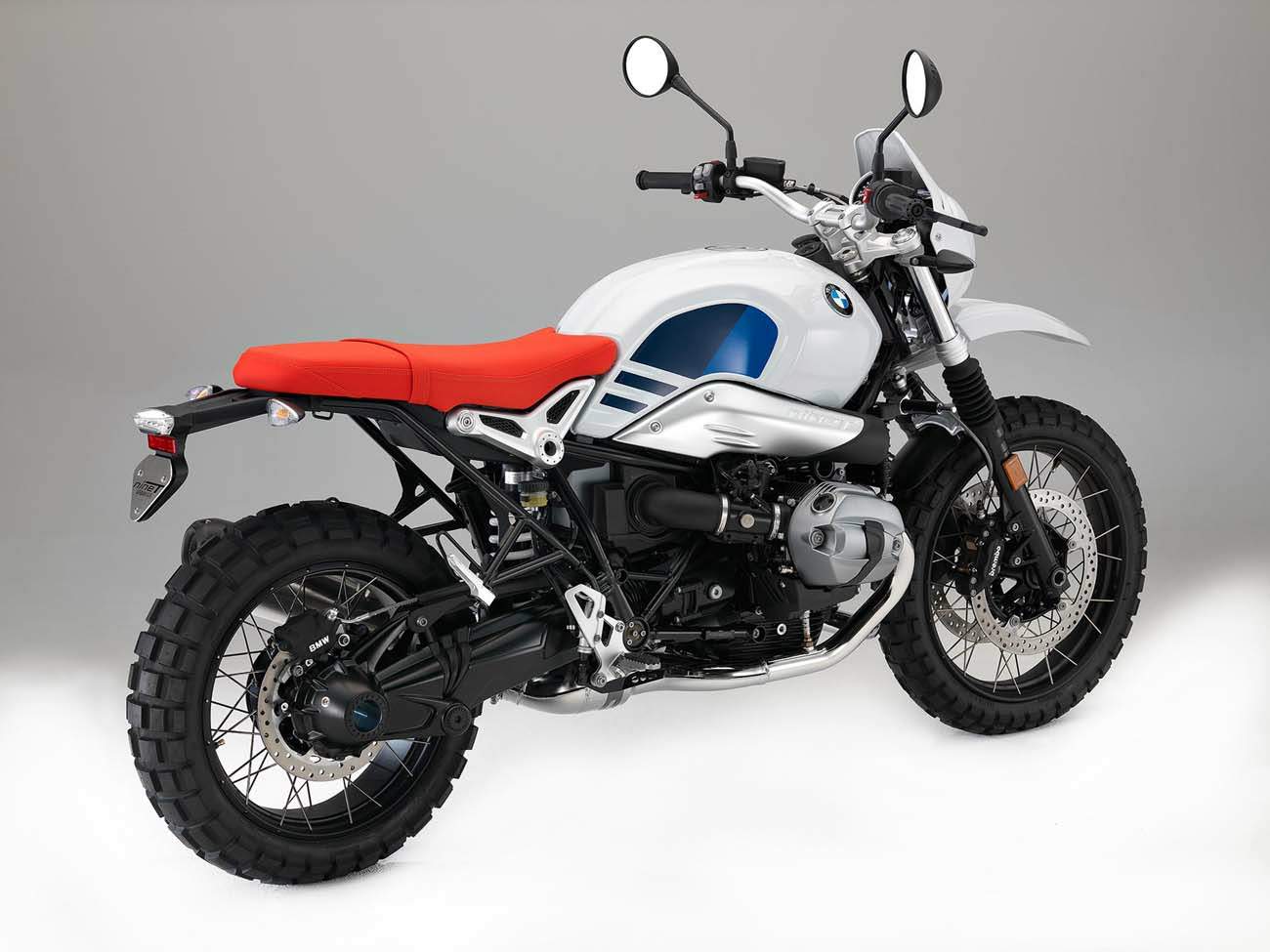

BMW R NineT Urban G/S is produced in 2017-18. Engine is Four stroke, two cylinder horizontally opposed Boxer, two camshafts and four radially aligned valves per cylinder, central counterbalancer shaft., displacement 1170 cc / 71.4 cub in. , produces power 81 kW / 110 hp @ 7550 rpm and 116 Nm / 11.8 kgf-m / 85.6 lb-ft @ 6000 rpm. BMW R NineT Urban G/S weighs 209 kg / 461 lbs. BMW R NineT Urban G/S has 4 photos.

Technical specifications

+ Add to 'Compare list'

Model:	R NineT Urban G/S
Years:	2017-18
Engine:	Four stroke, two cylinder horizontally opposed Boxer, two camshafts and four radially aligned valves per cylinder, central counterbalancer shaft.
Capacity:	1170 cc / 71.4 cub in.
Bore x Stroke:	101 x 73 mm
Cooling System:	Air/Oil cooled
Compression Ratio:	12.0:1
Lubrication:	Wet sump
Induction:	Electronic intake pipe injection / digital engine management with overrun cutoff, twin-spark ignition
Emission Control:	Controlled 3-way catalytic converter, exhaust emission standards EU-4
Alternator:	Three-phase alternator 720W
Battery:	12 V / 14 Ah, maintenance-free
Starting:	Electric
Max Power:	81 kW / 110 hp @ 7550 rpm
Max Torque:	116 Nm / 11.8 kgf-m / 85.6 lb-ft @ 6000 rpm
Clutch:	Single dry plate clutch, hydraulically operated
Transmission:	Constant mesh 6-speed
Final Drive:	Shaft
Gear Ratios:	Ist 2.375 / 2nd 1.696 / 3rd 1.296 / 4th 1.065 / 5th 0.939 / 6th 0.848:1
Frame:	Three-part frame concept with front frame and two-part rear frame, load-bearing enginegearbox unit, rear-set frame removeable for one-up riding
Front Suspension:	Telescopic forks, 43 mm fixed-tube diameter
Front Wheel Travel:	125 mm / 4.7 in
Rear Suspension:	Cast aluminium single swinging arm with BMW Motorrad Paralever; central spring strut,spring preload fully adjustable by hook wrench, adjustable rebound-stage damping
Rear Wheel Travel:	140 mm / 5.5 in
Front Brakes:	2 x 320 mm Foating brake discs, 4 piston radial calipers
Rear Brakes:	Single 265 mm disc, 2 piston floating caliper
ABS:	BMW Motorrad ABS
Rim Front:	3.00 x 19, Cast alloy
Rim Rear:	4.50 x 17, Cast alloy
Front Tyre:	120/70 - R19
Rear Tyre:	170/60 - R17
Castor:	110.6 mm / 4.4 in
Steering Head Angle:	61.5 °
Dimensions:	Length 2175 mm / 85.6 in Width 870 mm / 34.3 in (incl. mirrors) Height 1330 mm / 52.4 in (excl. mirrors)
Wheelbase:	1527 mm / 60.1 in
Seat Height:	850 mm / 33.5 in unladen
Inner Leg Curve:	1890 mm / 74.4 in unladen
GVWR:	430 kg / 948 lbs
Dry Weight:	209 kg / 461 lbs
Wet Weight:	221 kg / 487 lbs
Fuel Capacity:	17 Litres / 4.8 US gal
Reserve:	3 Litres / 0.8 gal
