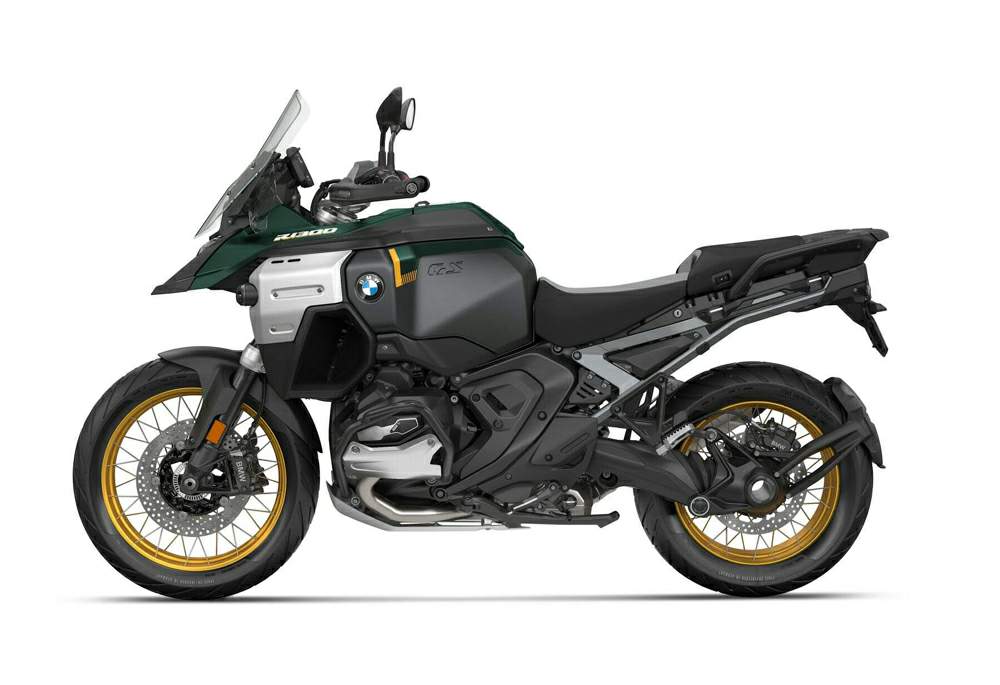

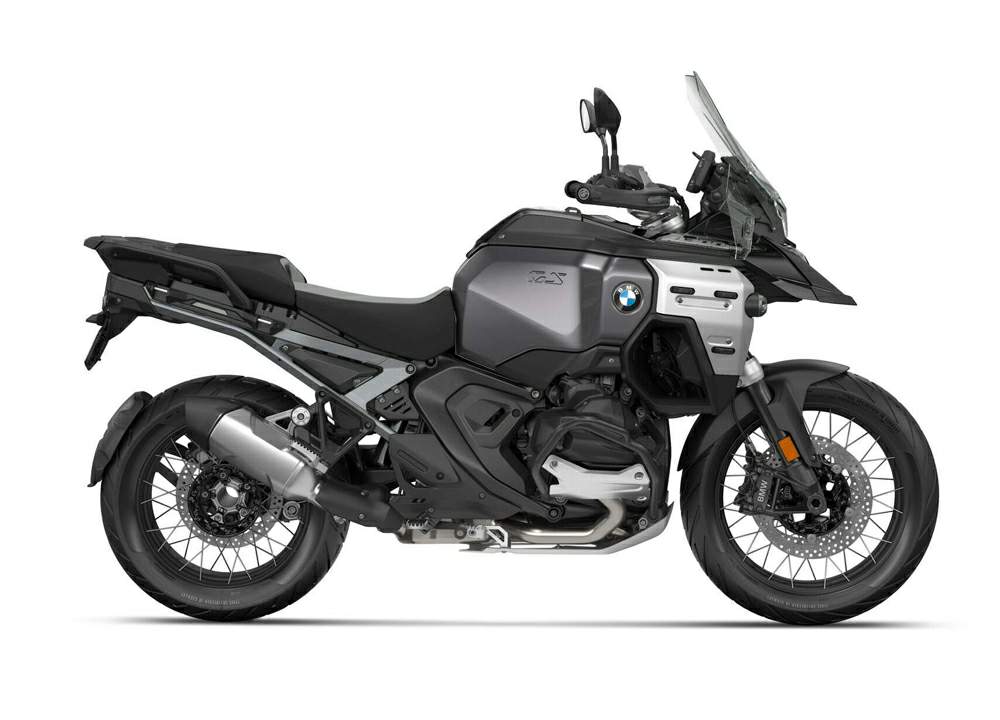

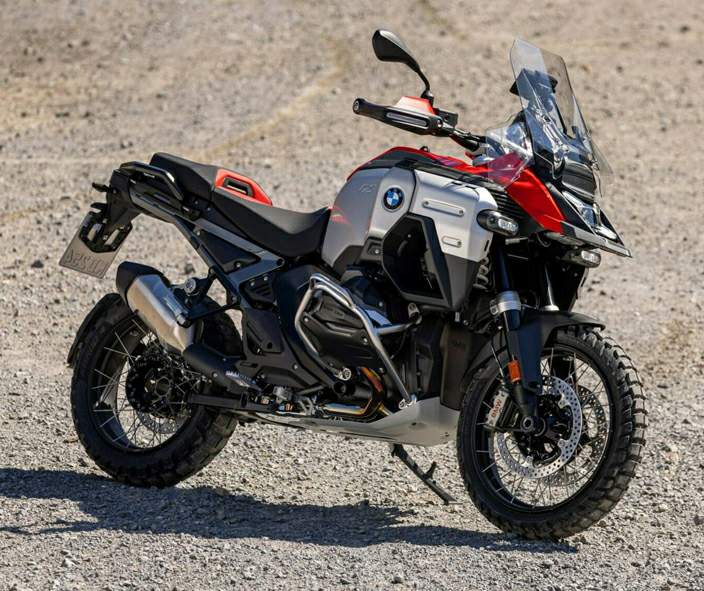

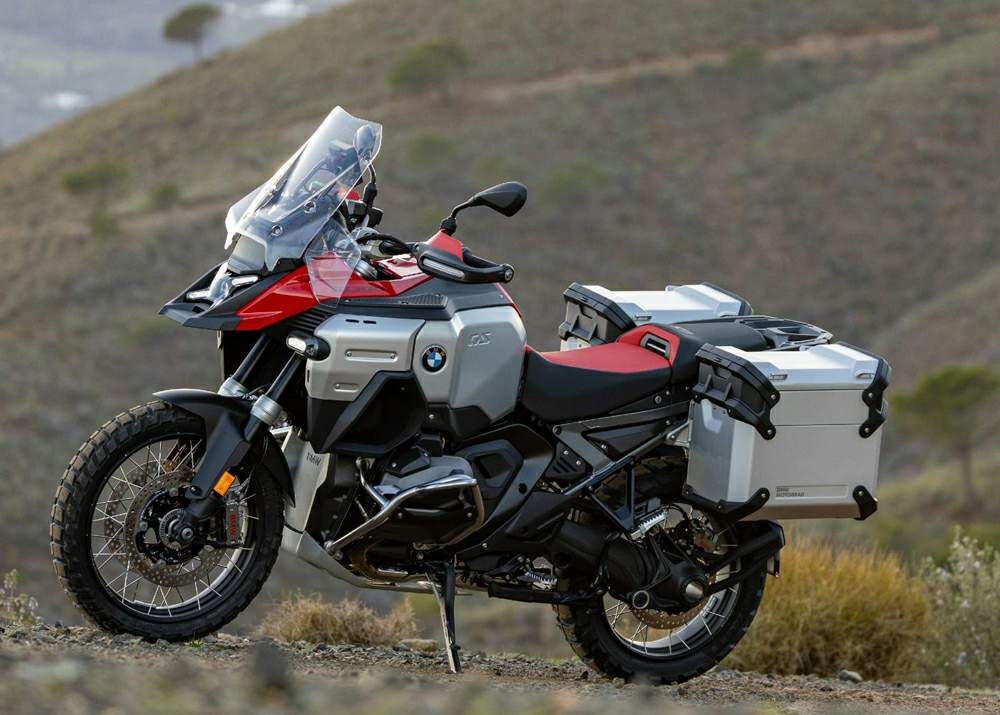

BMW R 1300GS Adventure / Trophy / Triple Black / Option 719 Karakorum (2024) technical specifications
![BMW R 1300GS Adventure / Trophy / Triple Black / Option 719 Karakorum technical specifications BMW R 1300GS Adventure / Trophy / Triple Black / Option 719 Karakorum technical specifications](https://www.moto-data.net/media/bmw/pics/bmw-r-1300gs-adventure-trophy-triple-black-option-719-karakorum-2024[1].jpg)

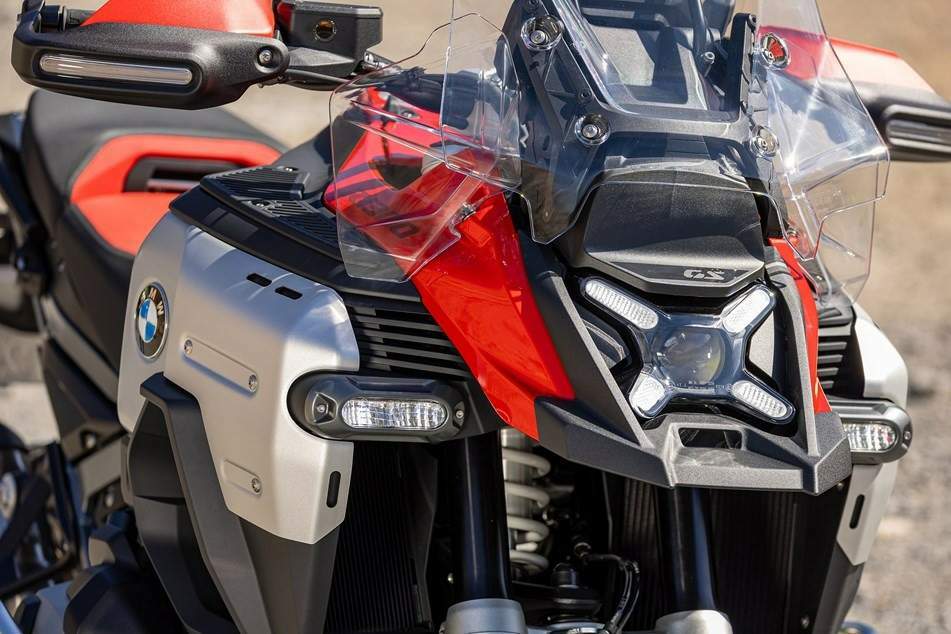

BMW R 1300GS Adventure / Trophy / Triple Black / Option 719 Karakorum is produced in 2024. Engine is Four stroke, two cylinder horizontally opposed Boxer, with two overhead spur gear driven camshafts, a counterbalance shaft and variable intake camshaft control system BMW ShiftCam, 4 valves per cylinder, intake 40mm, outlet 34 mm, displacement 1300 cc / 79 cu-in , produces power 108kW / 145hp @ 7750 rpm and 149 Nm / 110 lb-ft @ 6500 rpm. BMW R 1300GS Adventure / Trophy / Triple Black / Option 719 Karakorum wet weight is 269 kg / 593 lbs. BMW R 1300GS Adventure / Trophy / Triple Black / Option 719 Karakorum has 9 photos.
Technical specifications
+ Add to 'Compare list'Model: | R 1300GS Adventure / Trophy / Triple Black / Option 719 Karakorum |
Years: | 2024 |
Engine: | Four stroke, two cylinder horizontally opposed Boxer, with two overhead spur gear driven camshafts, a counterbalance shaft and variable intake camshaft control system BMW ShiftCam, 4 valves per cylinder, intake 40mm, outlet 34 mm |
Capacity: | 1300 cc / 79 cu-in |
Bore x Stroke: | 106.5 x 73 mm |
Compression Ratio: | 13.3:1 |
Cooling System: | Liquid / Air cooled |
Emission: | Closed-loop 3-way catalytic converter, EU5 |
Induction: | Electronic intake pipe injection, 52mm ? throttle valve |
Fuel: | Unleaded super, octane number 95 (RON) |
Engine Control: | BMS-O |
Battery: | 12 V / 10Ah, maintenance-free |
Starting: | Electric |
Max Power: | 108kW / 145hp @ 7750 rpm |
Max Torque: | 149 Nm / 110 lb-ft @ 6500 rpm |
Clutch: | Wet clutch with anti-hopping function, hydraulically activated |
Transmission: | Claw-shift constant mesh 6-speed gearbox |
Final Drive: | Cardan Shaft |
Primary Ratio: | 1.479 |
Gear Ratios: | 1st 2.438 2nd 1.714 3rd. 1.296 4th 1.059 5th 0.906 6th 0.795 |
Secondary Ratio: | 2.910 |
Frame: | Steel, two-section with bolt on rear frame, load bearing engine |
Front Suspension: | EVO Telelever, handlebar tilting decoupled via flex element, central DSA shock absorber |
Front Wheel Travel: | 210 mm / 8.3 in |
Rear Suspension: | Cast aluminium single-sided swing arm with BMW Motorrad Paralever; WAD strut (travel-related damping), spring pre-load hydraulically adjustable (continuously variable) at handwheel, rebound damping adjustable at handwheel |
Rear Wheel Travel: | 221 mm / 8.7 in |
Front Brakes: | 2 x 310mm semi-floating discs, 4-piston radial brake calipers |
Rear Brakes: | Single 285mm disc, 2-piston floating caliper |
ABS System: | BMW Motorrad Integral ABS Pro (lean angle optimised) |
Wheels: | Cast aluminium wheels |
Front Wheel: | 3.00 x 19″ |
Rear Wheel: | 4.50 x 17″ |
Front Tyre: | 120/70 R19 |
Rear Tyre: | 170/60 R17 |
Castor: | 118.8 mm / 4.7 in |
Steering Angle: | 63.8? |
Dimensions: | Length: 2280 mm / 89,8 in Width: 1011 mm / 39.8 in Height: 1587.5 mm / 62.5 in |
Wheelbase: | 1534 mm / 60.4 in |
Seat Height: | 870 mm - 890 mm / 34.25 - 35 in |
Wet Weight: | 269 kg / 593 lbs |
Permitted Total Weight: | 485 kg / 1069 lbs |
Fuel Capacity: | 30 Litres / 7.9 US gal |
