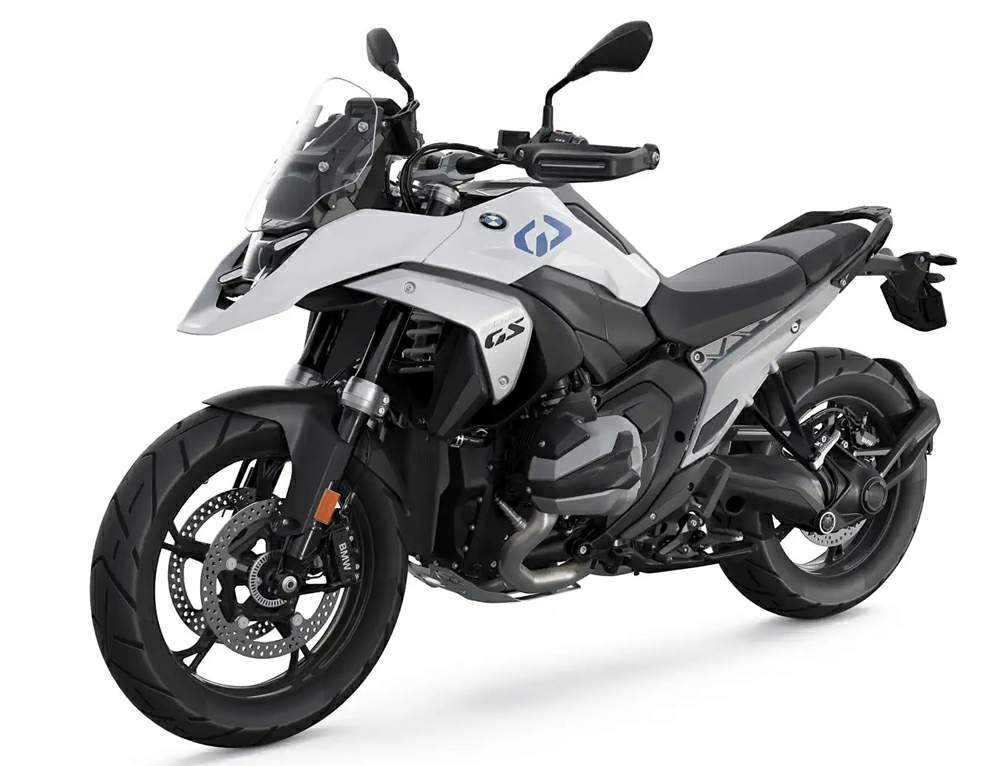

BMW R 1300GS (2024) technical specifications

BMW R 1300GS is produced in 2024. Engine is Four stroke, two cylinder horizontally opposed Boxer, with two overhead spur gear driven camshafts, a counterbalance shaft and variable intake camshaft control system BMW ShiftCam, 4 valves per cylinder, intake 40mm, outlet 34 mm, displacement 1300 cc / 79 cu-in , produces power 108kW / 145hp @ 7750 rpm and 149 Nm / 110 lb-ft @ 6500 rpm. BMW R 1300GS wet weight is 237 kg / 523 lbs. BMW R 1300GS has 9 photos.

Technical specifications

+ Add to 'Compare list'

Model:	R 1300GS
Years:	2024

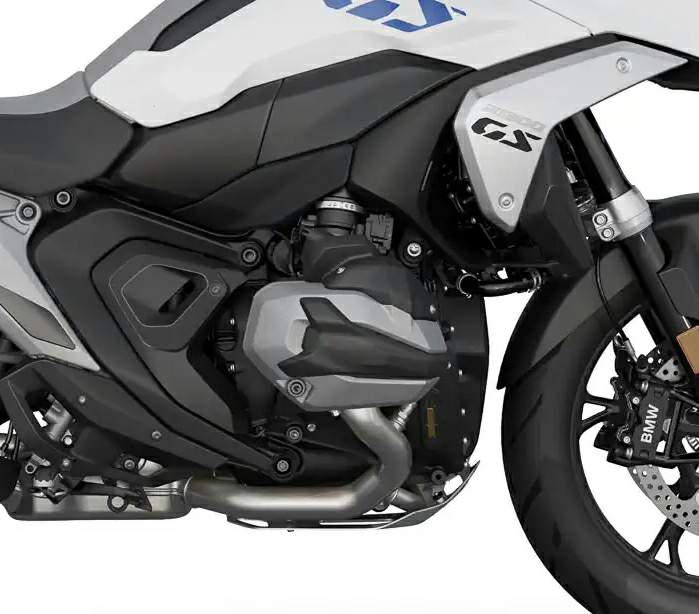

Engine:	Four stroke, two cylinder horizontally opposed Boxer, with two overhead spur gear driven camshafts, a counterbalance shaft and variable intake camshaft control system BMW ShiftCam, 4 valves per cylinder, intake 40mm, outlet 34 mm
Capacity:	1300 cc / 79 cu-in
Bore x Stroke:	106.5 x 73 mm
Compression Ratio:	13.3:1
Cooling System:	Liquid / Air cooled
Emission:	Closed-loop 3-way catalytic converter, EU5
Induction:	Electronic intake pipe injection, 52mm ? throttle valve
Fuel:	Unleaded super, octane number 95 (RON)
Engine Control:	BMS-O
Battery:	12 V / 10Ah, maintenance-free
Starting:	Electric
Max Power:	108kW / 145hp @ 7750 rpm
Max Torque:	149 Nm / 110 lb-ft @ 6500 rpm
Clutch:	Wet clutch with anti-hopping function, hydraulically activated
Transmission:	Claw-shift constant mesh 6-speed gearbox
Final Drive:	Shaft
Primary Ratio:	1.479
Gear Ratios:	1st 2.438 2nd 1.714 3rd. 1.296 4th 1.059 5th 0.906 6th 0.795
Secondary Ratio:	2.910
Frame:	Steel, two-section with bolt on rear frame, load bearing engine
Front Suspension:	EVO Telelever, central spring strut
Front Wheel Travel:	192 mm / 7.5 in
Rear Suspension:	Cast aluminium single-sided swing arm with BMW Motorrad Paralever; WAD strut (travel-related damping), spring pre-load hydraulically adjustable (continuously variable) at handwheel, rebound damping adjustable at handwheel
Rear Wheel Travel:	200 mm / 7.8 in
Front Brakes:	2x 310mm floating discs, 4-piston radial brake calipers
Rear Brakes:	Single 285mm disc, 2-piston semi-floating caliper
ABS System:	BMW Motorrad Integral ABS Pro (part-integral, slant-layer-optimized)
Wheels:	Cast aluminium wheels
Front Wheel:	3.00 x 19″
Rear Wheel:	4.50 x 17″
Front Tyre:	120/70 R19
Rear Tyre:	170/60 R17
Castor:	112 mm / 4.0 in
Steering Angle:	63.8?
Dimensions:	Length 2212 mm / 87.1 in Width 1000 mm / 39.4 in
Wheelbase:	1518 mm / 59.8 in
Seat Height:	850 mm / 33.5
Wet Weight:	237 kg / 523 lbs
Permitted Total Weight:	465 kg / 1025 lbs
Fuel Capacity:	19 Litres / 5.0 US gal
