BMW R 1200ST (2006) technical specifications

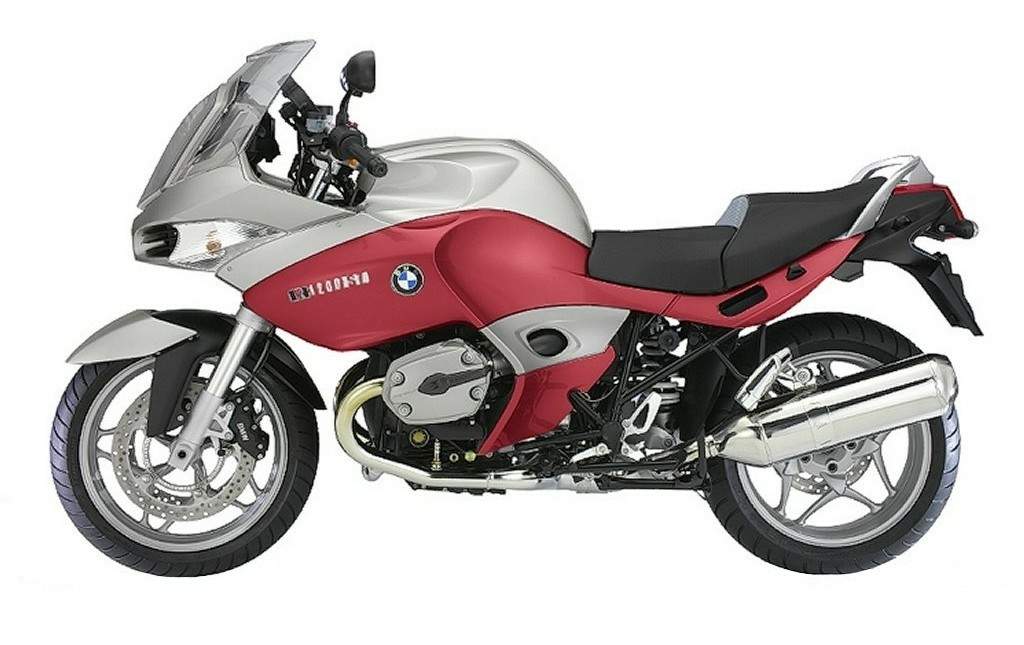

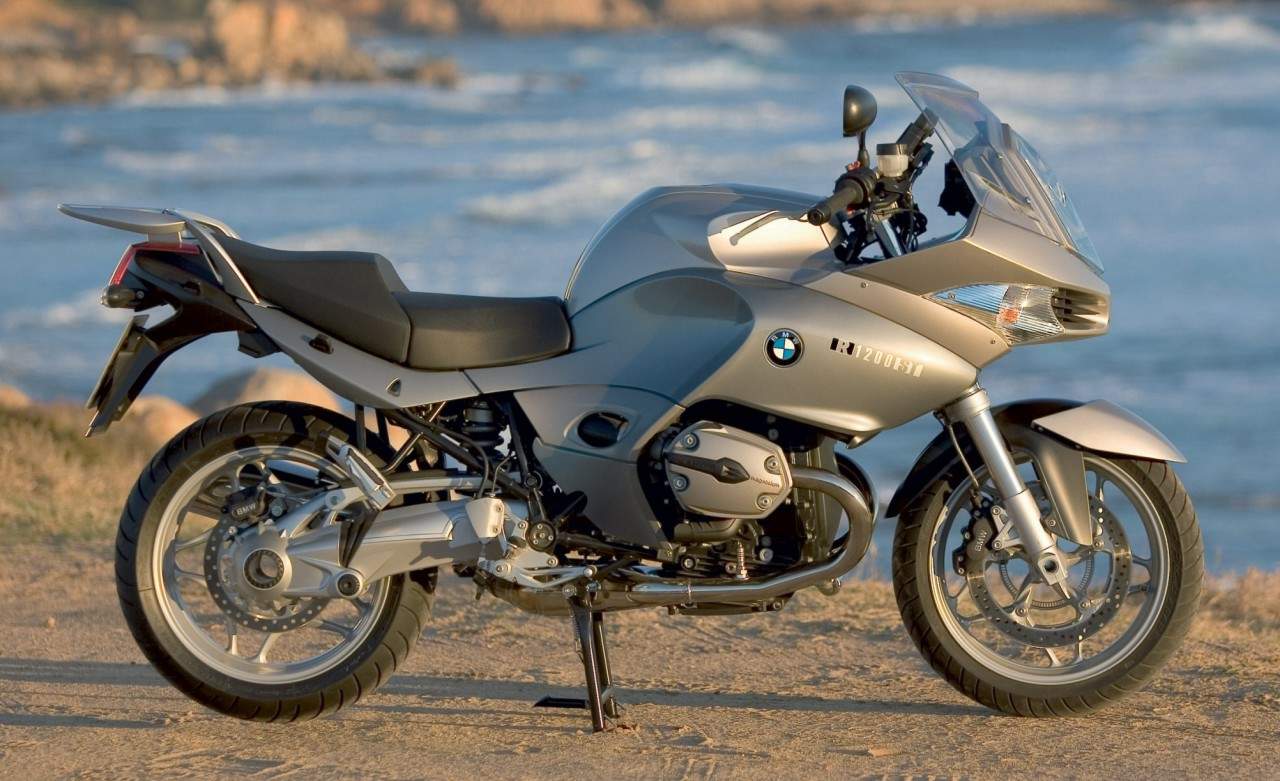

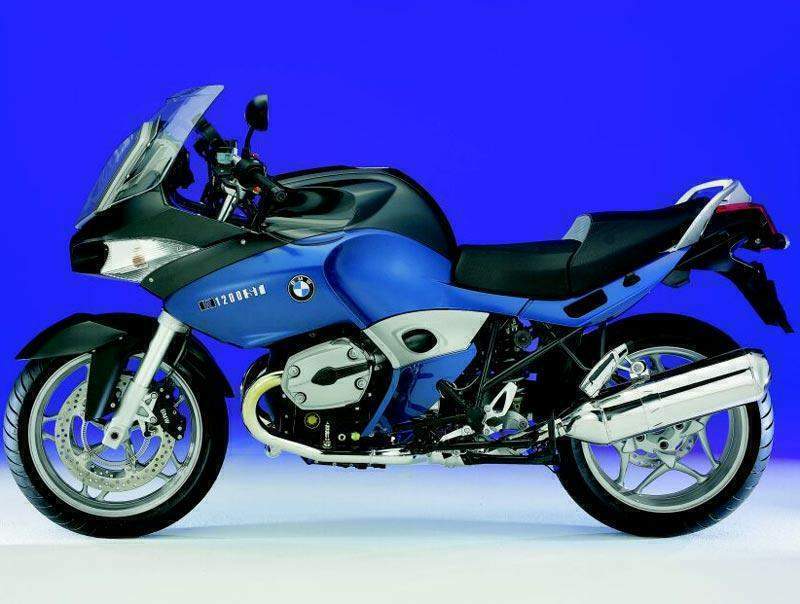

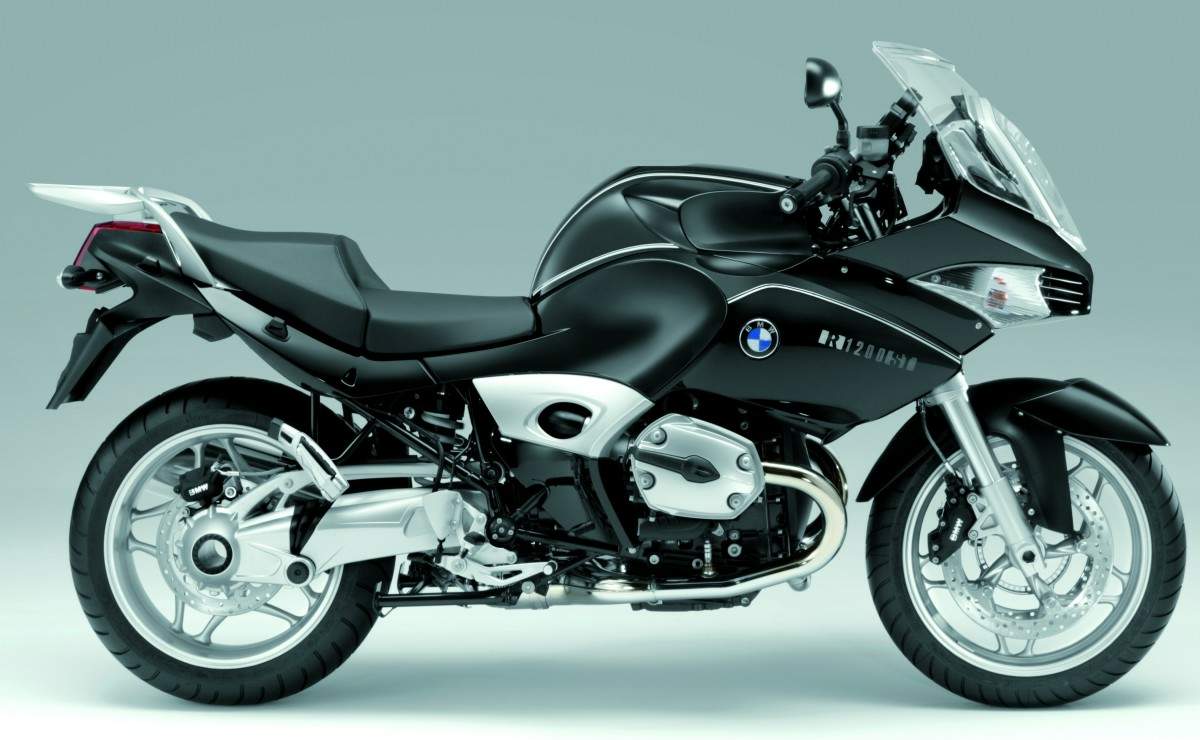

BMW R 1200ST is produced in 2006. Engine is Four stroke, two cylinder horizontally opposed Boxer, 4 valves per cylinder, displacement 1170 cc / 71.4 cu in , produces power 81 kW / 110 hp @ 7500 rpm and 115 Nm / 11.7 kgf-m / 85 lb-ft @ 6000 rpm. BMW R 1200ST top speed is 233.6 km/h / 145 mph. BMW R 1200ST weighs 205 kg / 451.9 lbs. BMW R 1200ST has 4 photos.

Technical specifications

+ Add to 'Compare list'

Model:	R 1200ST
Years:	2006
Engine:	Four stroke, two cylinder horizontally opposed Boxer, 4 valves per cylinder
Capacity:	1170 cc / 71.4 cu in
Bore x Stroke:	101 x 73 mm
Cooling System:	Air/Oil-cooled
Compression Ratio:	11.0:1
Induction:	BMW engine management, BMS-K
Ignition:	Digital engine management
Starting:	Electric
Battery:	12 V / 14 Ah, maintenance-free
Alternator:	Three-phase alternator 720 W
Max Power:	81 kW / 110 hp @ 7500 rpm
Max Torque:	115 Nm / 11.7 kgf-m / 85 lb-ft @ 6000 rpm
Clutch:	Single dry plate clutch, hydraulically
Transmission:	6 Speed
Final Drive:	System enclosed driveshaft with two universal joints
Final Drive Ratio:	2.62:1
Gear Ratio:	1st 2.28 / 2nd 1.58 / 3rd 1.26 / 4th 1.03 / 5th 0.90 / 6th 0.81:1
Frame:	Three-section frame consisting of front and rear section, load bearing engine-gearbox unit
Front Suspension:	Three-section frame consisting of front and rear section, load bearing engine-gearbox unit
Front Wheel Travel:	110 mm / 4.3 in
Rear Suspension:	BMW Motorrad Telelever, stanchion diameter 35mm, central spring strut, rebound damping electronically adjustable with standard ESA
Rear Wheel Travel:	140 mm / 5.5 in
Front Brakes:	2 x 305 mm Discs, 4 piston calipers
Rear Brakes:	Single 265mm disc, 2 piston caliper
Wheels:	Cast aluminium
Rim, front:	3.50 x 17
Rim, rear:	5.50 x 17
Front Tyre:	120/70 ZR17
Rear Tyre:	180/55 ZR17
Castor:	104 mm / 4.1 in
Steering Head Angle:	64.3°
Dimensions:	Length 2165 mm / 85.2 in Width 890 mm / 35.0 in (incl. mirrors) Height 1220 mm / 48.0 in (excl. mirrors)
Wheelbase:	1495 mm / 59.1 in
Seat Height:	826 mm - 806 mm / 32.5 in - 31.7 in 780 mm / 800 mm / 30.7 - 31.4 in (special equipment low seat bench)
Dry Weight:	205 kg / 451.9 lbs
Wet-Weight:	229 kg / 504.8 lbs
Fuel Capacity:	21 Liters / 5.5 US gal
Reserve:	4 Litres / 1.0 US gal
Consumption Average:	5.6 L/100 km / 17.9 km/l / 42.1 US mpg
Standing ¼ Mile:	12.0 sec
Standing 0 - 100km:	3.7 sec
Standing 0 - 140km:	6.0 sec
Standing 0 - 200km:	11.8 sec
Acceleration 60-100 km/h:	4.9 sec
Acceleration 60-140 km/h:	9.7 sec
Acceleration 100-140 km/h:	4.8 sec
Acceleration 140-180 km/h:	6.3 sec
Top Speed:	233.6 km/h / 145 mph
