BMW R 1200R LC Black Edition (Italy only) (2017) technical specifications

BMW R 1200R LC Black Edition (Italy only) is produced in 2017. Engine is Four stroke, two cylinder horizontally opposed Boxer, DOHC, 4 valves per cylinder, intake 40mm, outlet 34 mm, displacement 1170 cc / 71.4 cub in. , produces power 92 kW / 125 hp @ 7750 rpm and 125 Nm / 12.7 kgf-m / 92 lb-ft @ 6500 rpm. BMW R 1200R LC Black Edition (Italy only) wet weight is 231 kg / 509.2 lbs. BMW R 1200R LC Black Edition (Italy only) has 5 photos.

Technical specifications

+ Add to 'Compare list'

Model:	R 1200R LC Black Edition (Italy only)
Years:	2017
Engine:	Four stroke, two cylinder horizontally opposed Boxer, DOHC, 4 valves per cylinder, intake 40mm, outlet 34 mm
Capacity:	1170 cc / 71.4 cub in.
Bore x Stroke:	101 x 73 mm
Cooling System:	Liquid / Air cooled
Compression Ratio:	12.5:1
Induction:	Throttle valve mm 52 Carburetion BMS-X Emission control Closed-loop 3-way catalytic converter
Fuel:	Premium unleaded (95 RON)
Ignition:	BMS-K
Alternator:	Three-phase alternator 510 W (nominal power)
Battery:	12 V / 11,8 Ah, maintenance-free
Starting:	Electric

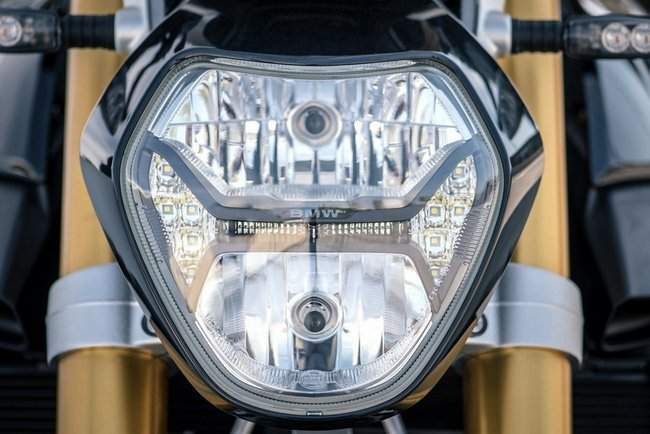

Electrical system:	Alternator three-phase alternator 508 W (nominal power) Battery /Ah 12V/12 maintenance-free Headlight H7W / LED (SA) Starter 0.9 kW
Max Power:	92 kW / 125 hp @ 7750 rpm
Max Torque:	125 Nm / 12.7 kgf-m / 92 lb-ft @ 6500 rpm
Clutch:	Oil lubricated clutch, hydraulically operated
Transmission:	Constant mesh 6-speed gearbox with helical gear teeth
Final Drive:	Shaft
Frame:	Two-section frame, front- and bolted on rear frame, load-bearing engine
Front Suspension:	Telescopic Upside-Down fork; stanchion diameter 45 mm
Front Wheel Travel:	140 mm / 5.5 in
Rear Suspension:	Cast aluminium single-sided swing arm with BMW Motorrad Paralever; WAD strut (travel-related damping), spring pre-load hydraulically adjustable (continuously variable) at handwheel, rebound damping adjustable at handwheel
Rear Wheel Travel:	140 mm / 5.5 in
Front Brakes:	2 x 320 floating discs, 4 piston calipers
Rear Brakes:	Single 275mm disc, 2 piston caliper
ABS:	BMW Motorrad Integral ABS (part-integral), disengageable
Front Rim:	3.50 x 17"
Rear Rim:	5.50 x 17"
Front Tyre:	120/70 ZR 17
Rear Tyre:	180/55 ZR 17
Wheel Castor:	125,6 mm / 4.9 in
Steering Head Angle:	62.3°
Dimensions:	Length 2165 mm / 85.2 in Width 880 mm / 34.6 in (incl. mirrors) Height 1300 mm / 51.1 in (excl. mirrors)
Wheelbase:	1515 mm / 59.6 in
Seat Height:	760 mm - 820 mm / 29.9 in - 32.2 in
Wet Weight:	231 kg / 509.2 lbs
Permitted Total Weight:	450 kg / 992 lbs
Fuel Capacity:	18 Liters / 5.3 US gal
Reserve:	4 Litres / 1.0 US gal
