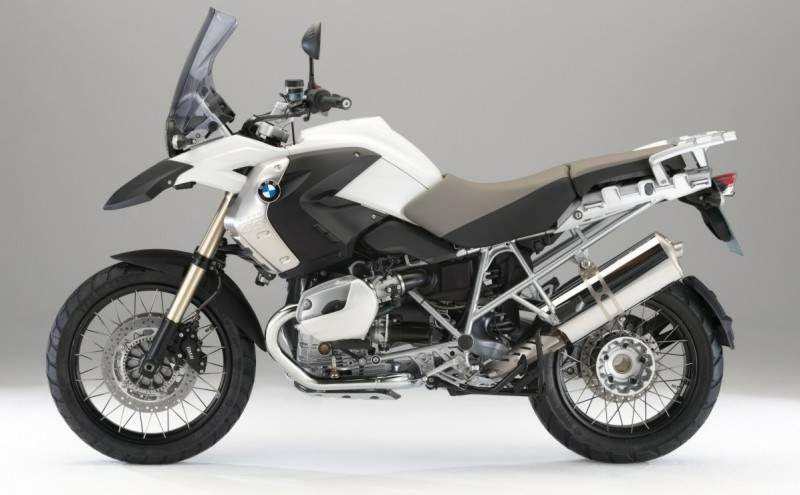

BMW R 1200GS Alpine White Special (2009) technical specifications

BMW R 1200GS Alpine White Special is produced in 2009. Engine is Four stroke, two cylinder horizontally opposed Boxer, 4 valves per cylinder, displacement 1170 cc / 71.4 cub in. , produces power 77 kW / 105 hp @ 7500 rpm and 115 Nm / 11.7 kgf-m / 84.8 ft/lb @ 5750 rpm. BMW R 1200GS Alpine White Special top speed is 208.4 km/h / 129.5 mph. BMW R 1200GS Alpine White Special weighs 199 kg / 439 lbs. BMW R 1200GS Alpine White Special has 4 photos.

Technical specifications

+ Add to 'Compare list'

Model:	R 1200GS Alpine White Special
Years:	2009
Engine:	Four stroke, two cylinder horizontally opposed Boxer, 4 valves per cylinder
Capacity:	1170 cc / 71.4 cub in.
Bore x Stroke:	101 x 73 mm
Compression Ratio:	12.0:1
Cooling System:	Air/oil cooled
Induction:	Electronic intake pipe injection/digital engine management: BMS-K with overrun fuel cut off, dual ignition
Ignition:	BMS-K
Starting:	Electric
Alternator:	Three-phase alternator 720W
Battery:	Battery 12 V / 14 Ah, maintenance-free
Clutch:	Single plate dry clutch, ∅180 mm, hydraulically operated
Max Power:	77 kW / 105 hp @ 7500 rpm
Max Torque:	115 Nm / 11.7 kgf-m / 84.8 ft/lb @ 5750 rpm
Transmission:	6 Speed
Drive:	Shaft
Gear Ratios:	1st 2.37 / 2nd 1.64 / 3rd 1.29 / 4th 1.06 / 5th 0.93 / 6th 0.84:1
Frame:	Tubular space frame, engine load-bearing
Front Suspension:	Telelever, stanchion diameter 41mm, central spring strut, spring preload 9 times mechanically adjustable.
Front Wheel Travel:	190 mm / 7.5 in
Rear Suspension:	Die-cast aluminium single-sided swinging arm with BMW Motorrad Paralever, WAD strut (travel-related damping), spring pre-load hydraulically adjustable to continuously variable levels by means of handwheel, rebound damping adjustable.
Rear Wheel Travel:	200 mm / 7.9 in
Front Brakes:	2 x 305 mm discs, 4 piston caliper
Rear Brakes:	Single 265 mm disc, 2 piston caliper
Front Tyre:	110/80 ZR19
Rear Tyre:	150/70 ZR17
Rake:	25.7°
Trail:	101 mm / 3.97 in
Dimensions:	Length: 2210 mm / 87.0 in Width: 915 mm / 36.0 in Height: 1450 mm / 57.1 in
Wheel Base:	1506 mm / 59.3 in
Seat Height:	850 mm - 870 mm / 33.4 in - 34.2 in
Dry Weight:	199 kg / 439 lbs
Wet Weight:	229 kg / 505 lbs
Fuel Capacity:	20 Litres / 5.2 US gal
Tank Reserve:	4L / 1.1 US gal
Consumption Average:	5.8 L/100 km / 17.2 km/l / 40.5 US mpg
Standing ¼ Mile:	12.3 sec
Standing 0 - 100 km/h:	3.6 sec
Standing 0 - 140 km/h:	5.9 sec
Standing 0 - 200 km/h:	16.0 sec
Acceleration 60-100 km/h:	4.0 sec
Acceleration 60-140 km/h:	8.1 sec
Acceleration 100-140 km/h:	4.1 sec
Acceleration 140-180 km/h:	4.8 sec
Top Speed:	208.4 km/h / 129.5 mph
