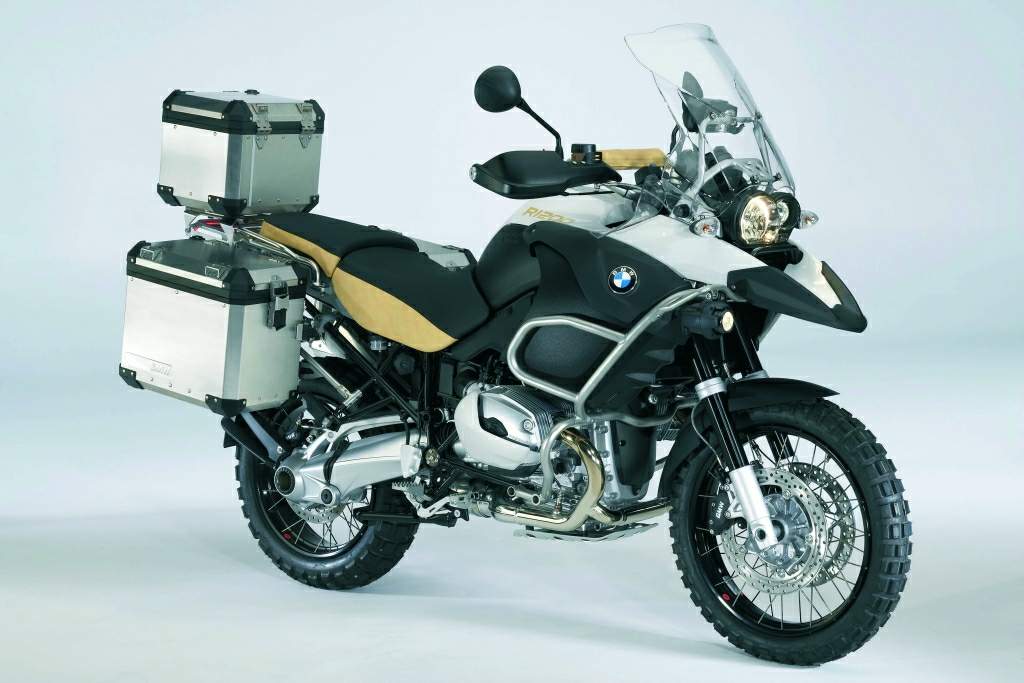

BMW R 1200GS Adventure Heroes Legend Edition (2007) technical specifications
BMW R 1200GS Adventure Heroes Legend Edition is produced in 2007. Engine is Four stroke, two cylinder horizontally opposed Boxer, 4 valves per cylinder, displacement 1170 cc / 71.4 in. , produces power 73 kW / 98 hp @ 7000 rpm and 115 Nm / 11.7 kgf-m / 84.8 ft-lbs @ 5500 rpm. BMW R 1200GS Adventure Heroes Legend Edition top speed is 193 km/h / 120 mph. BMW R 1200GS Adventure Heroes Legend Edition weighs 223 kg / 492 lbs. BMW R 1200GS Adventure Heroes Legend Edition has 1 photos.
Technical specifications
+ Add to 'Compare list'| Model: | R 1200GS Adventure Heroes Legend Edition |
| Years: | 2007 |
| Engine: | Four stroke, two cylinder horizontally opposed Boxer, 4 valves per cylinder |
| Capacity: | 1170 cc / 71.4 in. |
| Bore x Stroke: | 101 x 73 mm |
| Compression Ratio: | 11.0:1 |
| Cooling System: | Air/oil cooled |
| Induction: | Electronic intake pipe injection/digital engine management: BMS-K with overrun fuel cut off, dual ignition |
| Ignition: | BMS-K |
| Starting: | Electric |
| Alternator: | Alternator three-phase alternator 720 W |
| Battery: | Battery 12 V / 14 Ah, maintenance-free |
| Clutch: | Single plate dry clutch, ∅180 mm, hydraulically operated |
| Max Power: | 73 kW / 98 hp @ 7000 rpm |
| Max Torque: | 115 Nm / 11.7 kgf-m / 84.8 ft-lbs @ 5500 rpm |
| Transmission: | 6 Speed |
| Final Drive: | Shaft |
| Gear Ratios: | 1st 1.583 / 2nd 1.259 / 3rd 1.033 / 4th 0.903 / 5th 0.903 / 6th 0.805:1 |
| Frame: | Tubular space frame, engine load-bearing |
| Front Suspension: | Telelever, stanchion ∅41mm, central spring strut, spring preload 9 times mechanically adjustable. |
| Front Wheel Travel: | 210 mm / 8.3 in |
| Rear Suspension: | Die-cast aluminium single-sided swinging arm with BMW Motorrad Paralever, WAD strut (travel-related damping), spring pre-load hydraulically adjustable to continuously variable levels by means of handwheel, rebound damping adjustable. |
| Rear Wheel Travel: | 220 mm / 8.7 in |
| Front Brakes: | 2 x 305mm discs, 4 piston caliper |
| Rear Brakes: | Single 265 mm disc, 2 piston caliper |
| Front Rim: | 2.50 x 19 |
| Rear Rim: | 4.00 x 17 |
| Front Tyre: | 110/80 ZR19 |
| Rear Tyre: | 150/70 ZR17 |
| Castor: | 101 mm / 4.0 in |
| Dimensions: | Length 2210 mm / 87.0 in Width 915 mm / 36.0 in (incl. mirrors) Height 1450 mm / 57.1 in (excl. mirrors) |
| Wheelbase: | 1507 mm / 59.3 in |
| Seat Height: | 890 - 910 mm / 35.0 - 35.8 in |
| Dry Weight: | 223 kg / 492 lbs |
| Fuel Capacity: | 33 Litres / 8.7 US gal |
| Tank Reserve: | 4L / 1.1 US gal |
| Consumption Average: | 6.3 L/100 km / 15.7 km/l / 36.9 US mpg |
| Standing ¼ Mile: | 12.9 sec / 170.7 km/h / 106 mph |
| Standing 0 - 1000m: | 24.7 sec / 190.5 km/h / 1118 mph |
| Top Speed: | 193 km/h / 120 mph |
