BMW R 1150GS Adventure (2002) technical specifications

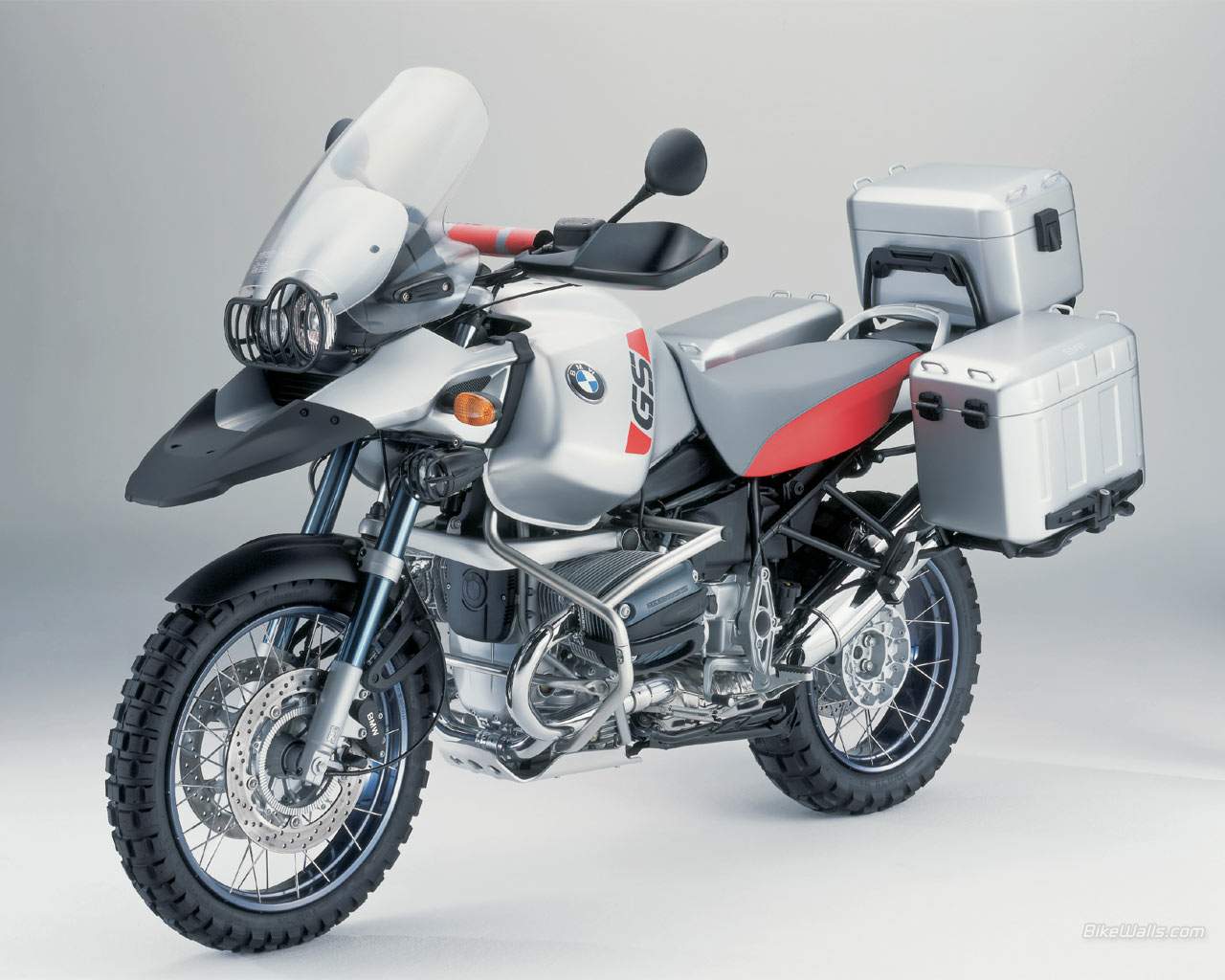

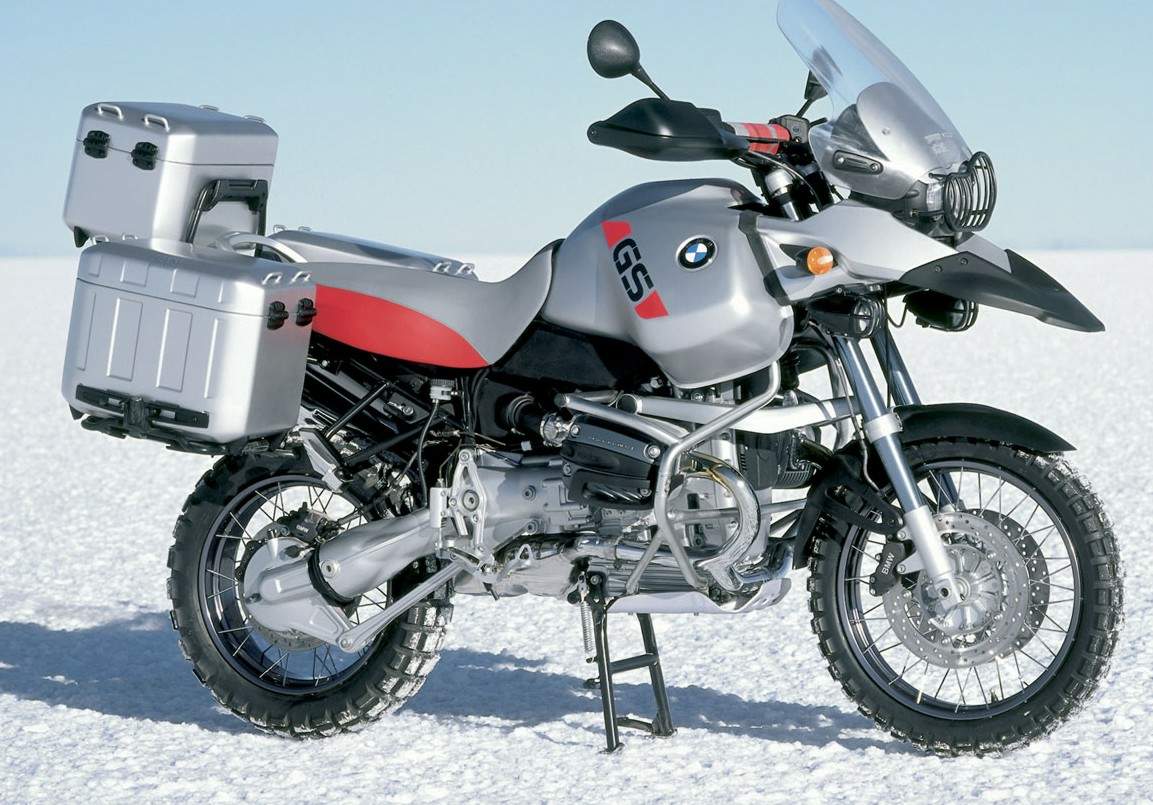

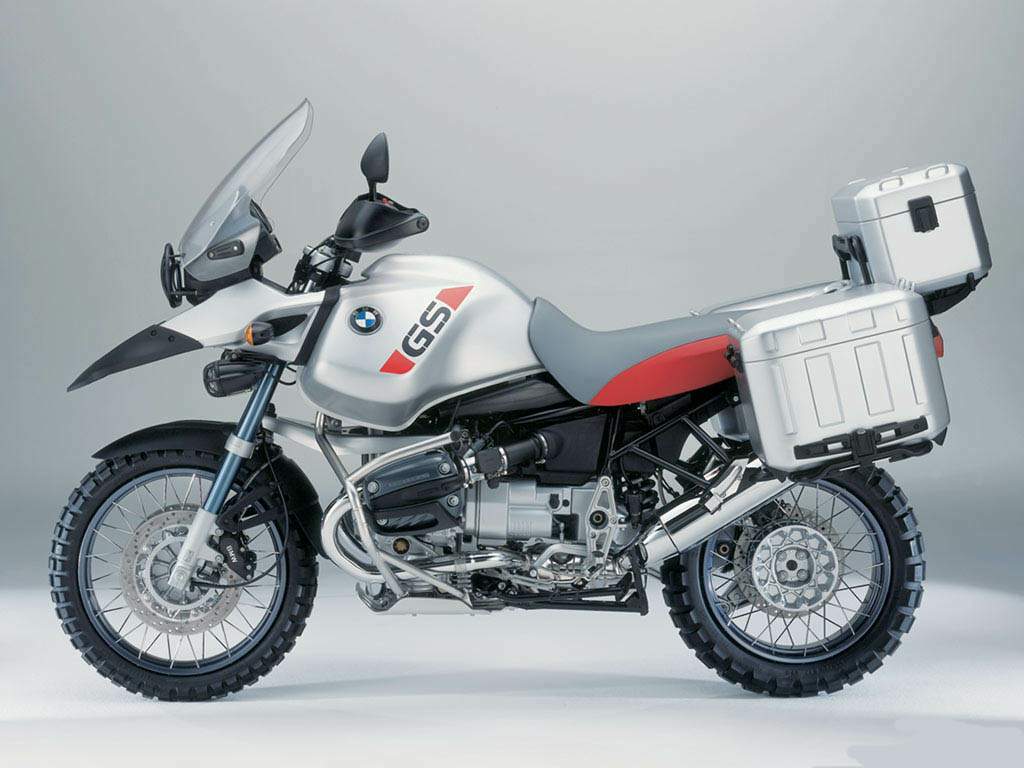

BMW R 1150GS Adventure is produced in 2002. Engine is Four stroke, two cylinder horizontally opposed Boxer, 4 valves per cylinder, displacement 1130 cc / 69 cu in , produces power 62.5 kW / 85 hp @ 6750 rpm (rear tyre 58.9 kW / 79 hp @ 6750 rpm) and 98 Nm / 10.0 kgf-m / 71 lb-ft @ 5250 rpm. BMW R 1150GS Adventure top speed is 190 km/h / 118 mph. BMW R 1150GS Adventure weighs 232 kg / 511 lbs. BMW R 1150GS Adventure has 3 photos.
Technical specifications
+ Add to 'Compare list'| Model: | R 1150GS Adventure |
| Years: | 2002 |
| Engine: | Four stroke, two cylinder horizontally opposed Boxer, 4 valves per cylinder |
| Capacity: | 1130 cc / 69 cu in |
| Bore x Stroke: | 101 x 70.5 mm |
| Cooling System: | Air/Oil cooled |
| Compression Ratio: | 10.3:1 |
| Lubrication: | Wet sump |
| Induction: | Bosch Motronic MA 2.4 Fuel injection |
| Ignition: | Electronic ignition MA 2.2 Bosch Motronic |
| Starting: | Electric |
| Max Power: | 62.5 kW / 85 hp @ 6750 rpm (rear tyre 58.9 kW / 79 hp @ 6750 rpm) |
| Max Torque: | 98 Nm / 10.0 kgf-m / 71 lb-ft @ 5250 rpm |
| Clutch: | Single disc dry clutch, hydraulically operated |
| Transmission: | 6 Speed |
| Final Drive: | Shaft |
| Gear Ratios: | 1st 2.375 / 2nd 1.600 / 3rd 1.267 / 4th 1.038 / 5th 0.900 / 6th 0.800 |
| Frame: | Three section composite frame consisting of front & rear section, load bearing engine |
| Front Suspension: | Light. Telelever with central spring strut, progressive coil spring, twin-tube gas-filled shock, |
| Front Wheel Travel: | 210 mm / 8.2 in |
| Rear Suspension: | Patented BMW Paralever swing arm & shaft drive, single shock with variable rebound and damping adjustments |
| Rear Wheel Travel: | 220 mm / 8.6 in |
| Front Brakes: | 2 x 304mm discs, 4 piston calipers |
| Rear Brakes: | Single 276mm disc, 2 piston caliper |
| Wheels: | Cross spoke wheels |
| Front Wheel: | 2.50 x 19 |
| Rear Wheel: | 4.00 x 17 |
| Front Tyre: | 110/80 R19 |
| Rear Tyre: | 150/70 R17 |
| Rake: | 26.2° |
| Trail: | 121 mm / 4.8 in |
| Dimensions: | Length 2,180 mm / 85.8 in Width 980 mm / 38.6 in Height 1,435 mm / 56.5 in |
| Wheelbase: | 1,501 mm / 59.1 in |
| Seat Height: | 860 -900 mm / 33.8 - 35.4 in |
| Dry Weight: | 232 kg / 511 lbs |
| Wet Weight: | 258 kg / 570 lbs |
| Fuel Capacity: | 30 Litres / 7.9 US US gal |
| Reserve: | 4.0 Litres / 1.05 US gal |
| Consumption Average: | 5.7 L/100 km / 17.5 km/l / 41.2 US mpg |
| Standing ¼ Mile: | 13.3 sec / 160.8 km/h / 99.9 mph |
| Top Speed: | 190 km/h / 118 mph |
