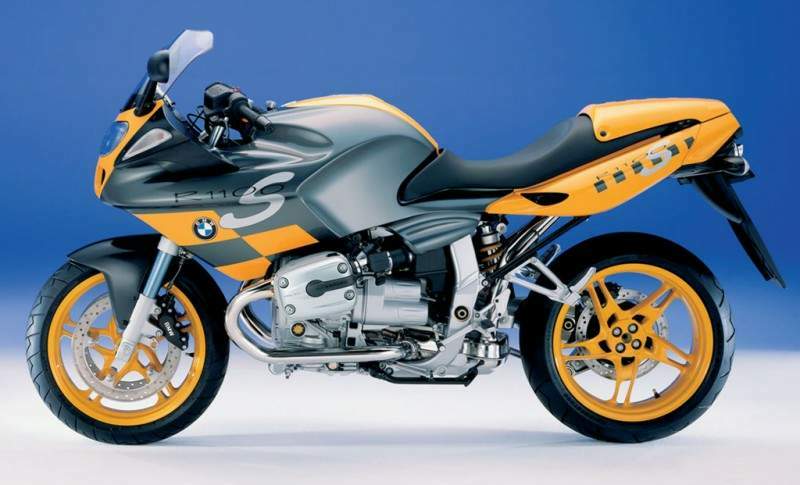

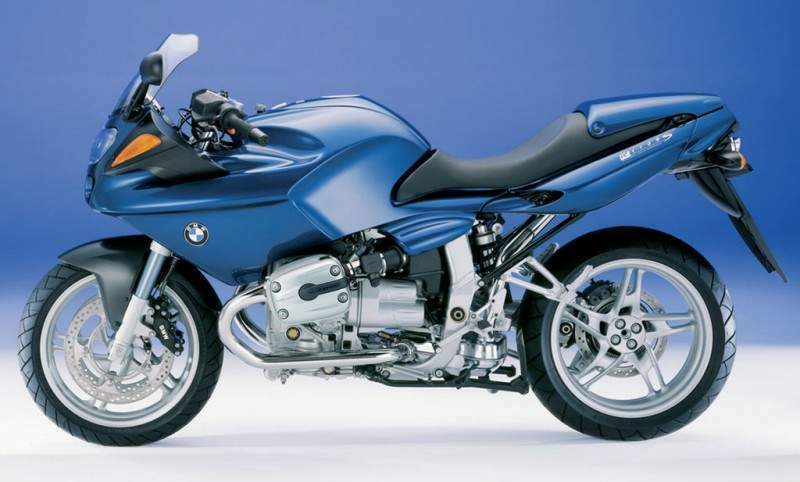

BMW R 1100S (2003-04) technical specifications

BMW R 1100S is produced in 2003-04. Engine is Four stroke, two cylinder horizontally opposed Boxer, 4 valves per cylinder, displacement 1085 cc / 66.2 cu in , produces power 71.4 kW / 98 hp @ 7500 rpm and 97 Nm / 9.9 kgf-m / 71.5 lb-ft.@ 5750 rpm. BMW R 1100S top speed is 227 km/h / 141 mph. BMW R 1100S weighs 229 kg / 505 lbs. BMW R 1100S has 4 photos.

Technical specifications

+ Add to 'Compare list'

Model:	R 1100S
Years:	2003-04
Engine:	Four stroke, two cylinder horizontally opposed Boxer, 4 valves per cylinder
Capacity:	1085 cc / 66.2 cu in
Bore x Stroke:	99 x 70.5 mm
Cooling System:	Air/Oil cooled
Compression Ratio:	11.3:1
Lubrication:	Wet sump
Induction:	Bosch fuel injection
Ignition:	Bosch electronic
Battery:	12 V, 14 Ah (special equipment: 12V, 19 Ah)
Starting:	Electric
Max Power:	71.4 kW / 98 hp @ 7500 rpm
Max Torque:	97 Nm / 9.9 kgf-m / 71.5 lb-ft.@ 5750 rpm
Clutch:	Dry, single plate, cable operated
Transmission:	6 Speed
Final Drive:	Shaft
Gear Ratio:	1st 2.050 / 2nd 1.600 / 3rd 1.270 / 4th 1.040 / 5th 0.900 / 6th 0.800
Rear Wheel Ratio:	1:2.81
Frame:	Three section composite frame consisting of front & rear section, load bearing engine
Front Suspension:	Motorrad Telelever, stanchion diameter 35mm, central strut, rebound damping adjustable.
Front Wheel Travel:	110 mm / 4.3 in
Rear Suspension:	Paralever, central strut, spring preload adjustable to continuously variable levels by mean of a hydraulic handwheel, rebound adjustable damping.
Rear Wheel Travel:	130 mm / 5.1 in
Front Brakes:	2 x 320mm discs, 4 piston calipers
Rear Brakes:	Single 276mm disc, 2 piston caliper
Wheels:	Die cast aluminium wheels
Front Rim:	3.50 x 17"
Rear Rim:	5.00 x 17" (special equipment: 5.50 x 17")
Front Tyre:	120/70-ZR17
Rear Tyre:	160/60-ZR18
Dimensions:	Length 2180 mm / 85.8 in Width 880 mm / 34.6 in Height 1160 mm / 45.6 in
Wheelbase:	1478 mm / 58.2 in
Seat Height:	800 mm / 31.4 in
Dry Weight:	229 kg / 505 lbs
Wet Weight:	236 kg / 520 lbs
Fuel Capacity:	18 Litres / US 4.76 gal
Reserve:	4 Litres / 1.05 US gal
Consumption Average:	6.0 L/100 km / 16.6 km/l / 39.0 US mpg
Braking 60 km/h- 0:	13.5 m / 44.3 ft
Braking 100 km/h - 0:	40.0 m / 131 ft
Standing ¼ Mile:	12.1 sec / 177.5 km/h / 110.3 mph
Top Speed:	227 km/h / 141 mph
