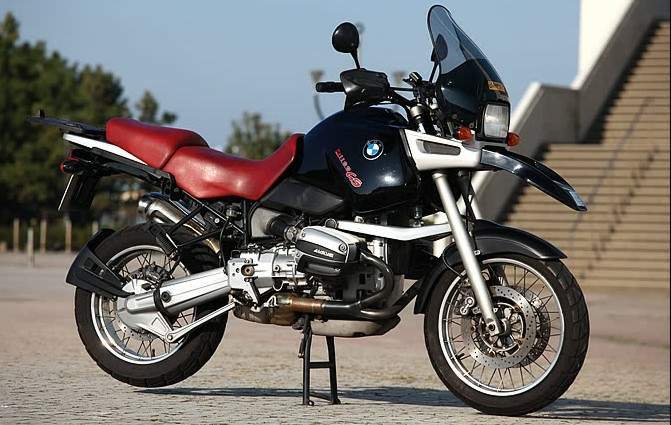

BMW R 1100GS (1994) technical specifications

BMW R 1100GS is produced in 1994. Engine is Four stroke, two cylinder horizontally opposed Boxer, 4 valves per cylinder, displacement 1084 cc / 66.1 cu in , produces power 59 kW / 80 hp @ 6750 rpm and 97Nm / 9.9 kgf-m / 71 lb-ft / @ 5250 rpm. BMW R 1100GS top speed is 201.6 km/h / 125.3 mph. BMW R 1100GS weighs 225 kg / 496.0 lbs. BMW R 1100GS has 6 photos.

Technical specifications

+ Add to 'Compare list'

Model:	R 1100GS
Years:	1994
Engine:	Four stroke, two cylinder horizontally opposed Boxer, 4 valves per cylinder
Capacity:	1084 cc / 66.1 cu in
Bore x Stroke:	99 x 70.5 mm
Cooling System:	Air/oil-cooled
Compression Ratio:	10.3:1
Lubrication:	Wet sump
Induction:	Bosch Motronic 2.2 with fuel cutoff when coasting
Ignition:	Electronic MA 2.2 controlled by Bosch Motronic
Battery:	12V, 19 Amp
Alternator:	700W
Charging System:	14 V, 50 Amp
Headlamp:	Single H4 55/60W quartz bulb
Spark Plug:	Bosch, FR5 DTC
Starting:	Electric
Max Power:	59 kW / 80 hp @ 6750 rpm
Max Power Rear Tyre:	55.4 kW / 74.3 hp @ 6600 rpm
Max Torque:	97Nm / 9.9 kgf-m / 71 lb-ft / @ 5250 rpm
Clutch:	∅180mm Dry single plate with diaphram spring
Transmission:	5 Speed
Final Drive:	Shaft
Final Drive Ratio:	3.0:1 (33:11)
Gear Ratio:	1st 4.16 / 2nd 2.91 / 3rd 2.13 / 4th 1.74 / 5th 1.45
Frame:	Three piece (front and rear sections with load-bearing engine)
Front Suspension:	BMW Telelever Single gas-filled shock absorber with progressive coil spring, Preload adjustment (five steps)
Front Wheel ravel:	190 mm / 7.5 in
Rear Suspension:	BMW Paralever (single-sided swinging arm) Single gas-filled shock absorber with coil spring, Preload adjustment (continuously adjustable by handwheel), Rebound damping (continuously adjustable by screw)
Rear Wheel Travel:	200 mm / 7.9 in
Front Brakes:	2 x ∅297mm Discs, 3 piston calipers
Rear Brakes:	Single ∅250mm disc, 3 piston caliper
Front Tyre:	110/80 R19
Front Wheel:	4 x 17 inch patented cross spoke
Rear Tyre:	150/70 R17
Dimensions:	Length 2189 mm / 85.4 in Width 920 mm / 35.9 in Height 1366 mm / 53.7 in
Wheelbase:	1509 mm / 59.4 in
Seat Height:	840 mm / 33.0 in - 860 mm / 33.8 in
Dry Weight:	225 kg / 496.0 lbs
Wet Weight:	240 kg / 549 lbs
Ground Clearance:	200 mm / 7.8 in
Fuel Capacity:	24 Liters / US 6.3 gal
Consumption Average:	6.1 L/100 km / 16.4 km/l / 35.6 US mpg
Braking 60 km/h - 0:	14.0 m / 46 ft
Braking 100 km/h - 0:	40.5 m / 133 ft
Standing ¼ Mile:	12.5 sec / 168.2 km/h /104.5 mph
Top Speed:	201.6 km/h / 125.3 mph
