Technical specifications
|
| Model: |

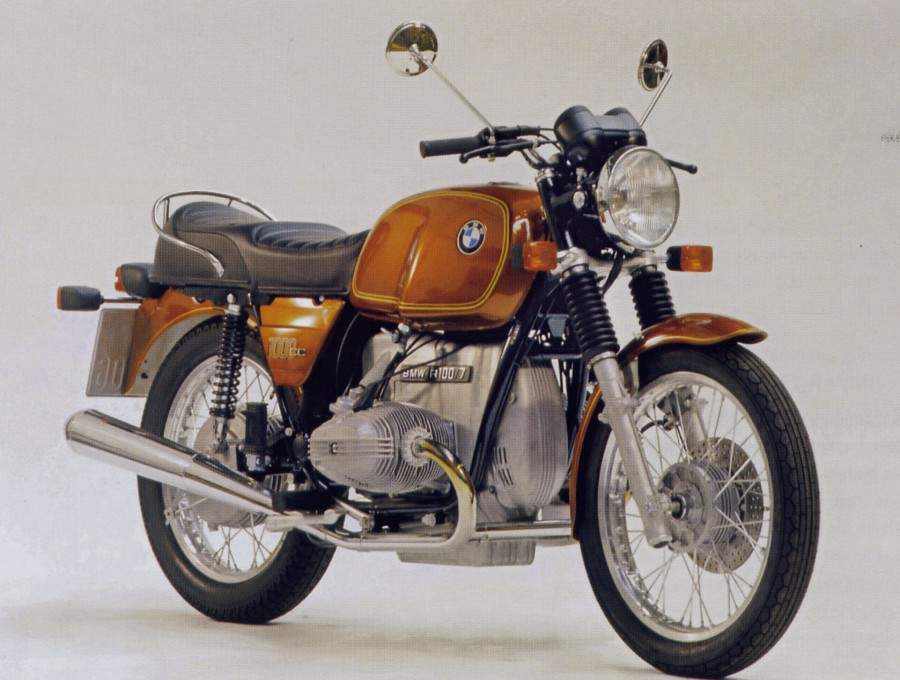

R 100/7 |
| Years: |
1976-77 |
|
Engine:
|
Four stroke, two cylinder horizontally opposed Boxer, 2 valves per cylinder
|
|
Capacity:
|
980 cc / 59.8 cu in.
|
|
Bore x Stroke:
|
94 x 70.6 mm
|
|
Cooling System:
|
Air cooled
|
|
Compression Ratio:
|
9.1:1
|
|
Induction:
|
2 x 36mm Bing V94 carburetors
|
|
Ignition:
|
Battery ignition
|
|
Alternator:
|
Bosch 12V/240 W
|
|
Starting:
|
Electric
|
|
Max Power:
|
44.1 KW / 60 hp @ 7000 rpm
|
|
Max Torque:
|
71.5 Nm / 7.29 kgf-m / 53 ft-lb @ 6500 rpm
|
|
Clutch:
|
Single dry plate
|
|
Transmission:
|
5 Speed
|
|
Final Drive:
|
Shaft
|
|
Gear Ratio:
|
1st 4.40 / 2nd 2.86 / 3rd 2.07 / 4th 1.67 / 5th 1.50:1
|
|
Gear Ratio Sport Version:
|
1st 3.38 / 2nd 2.43 / 3rd 1.93 / 4th 1.67 / 5th 1.50:1
|
|
Bevel / Crown wheel:
|
11 / 34 teeth or 10 / 32 teeth
|
|
Frame:
|
Double sown tubs, dual cradle
|
|
Front Suspension:
|
Telescopic fork with hydraulic shock absorber.
|
|
Front Wheel Travel:
|
200 mm / 7.8 in
|
|
Rear Suspension:
|
Long swinging arm with adjustable strut.
|
|
Rear Wheel Travel:
|
125 mm / 4.9 in
|
|
Front Brakes:
|
Single ∅260mm disc
|
|
Rear Brakes:
|
200mm Drum
|
|
Front Wheel:
|
1.85 - B19
|
|
Rear Wheel:
|
2.15 - B18
|
|
Front Tyre:
|
3.25 - H19
|
|
Rear Tyre:
|
4.00 - H18
|
|
Wheelbase:
|
1465 mm / 57.67 in
|
|
Seat Height:
|
810 mm / 31.9 in
|
|
Ground Clearance:
|
165 mm / 6.49 in
|
|
Wet Weight:
|
215 kg / 474 lbs
|
|
Fuel Capacity:
|
24 L / 6.3 US gal
|
|
Top Speed:
|
188 km/h / 117 mph
|
