BMW HP 4 (2014) technical specifications

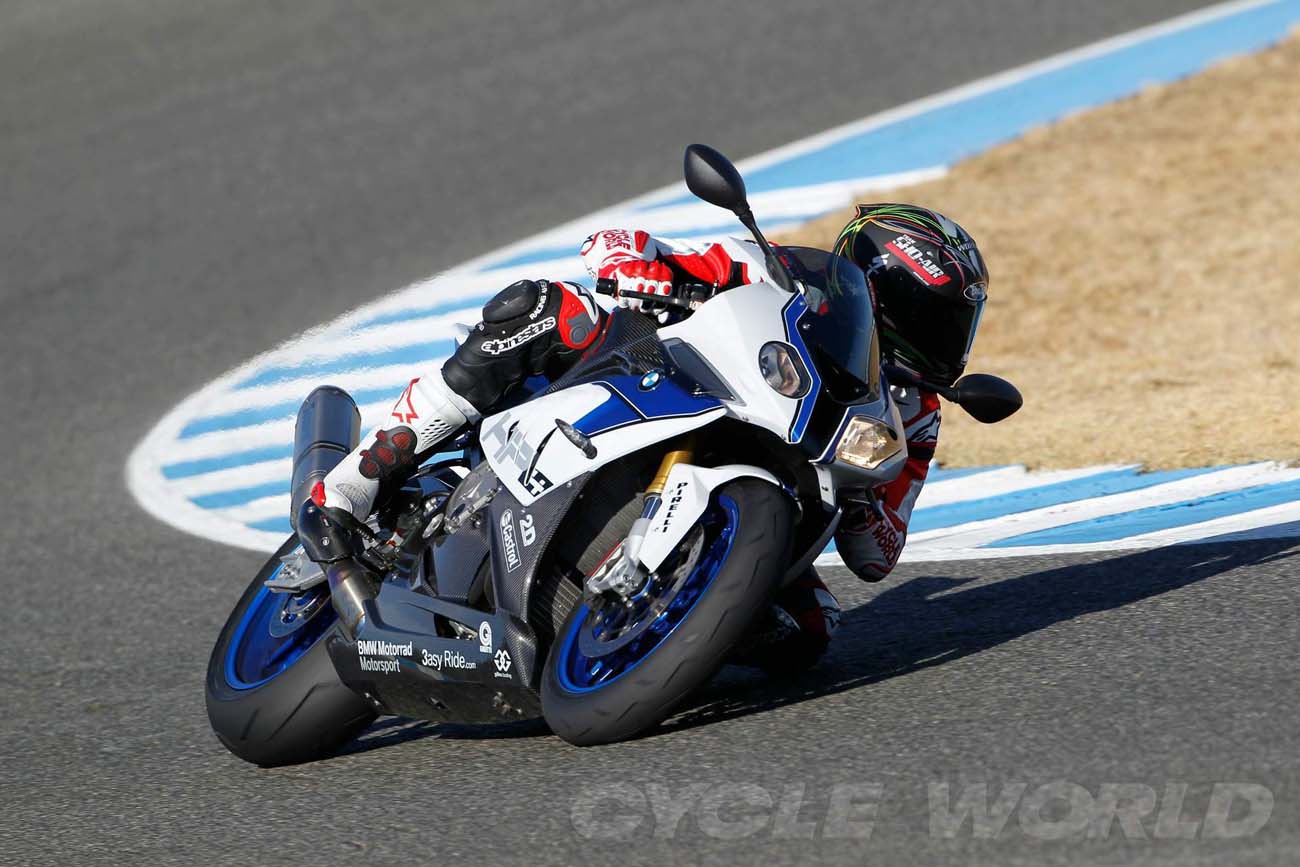

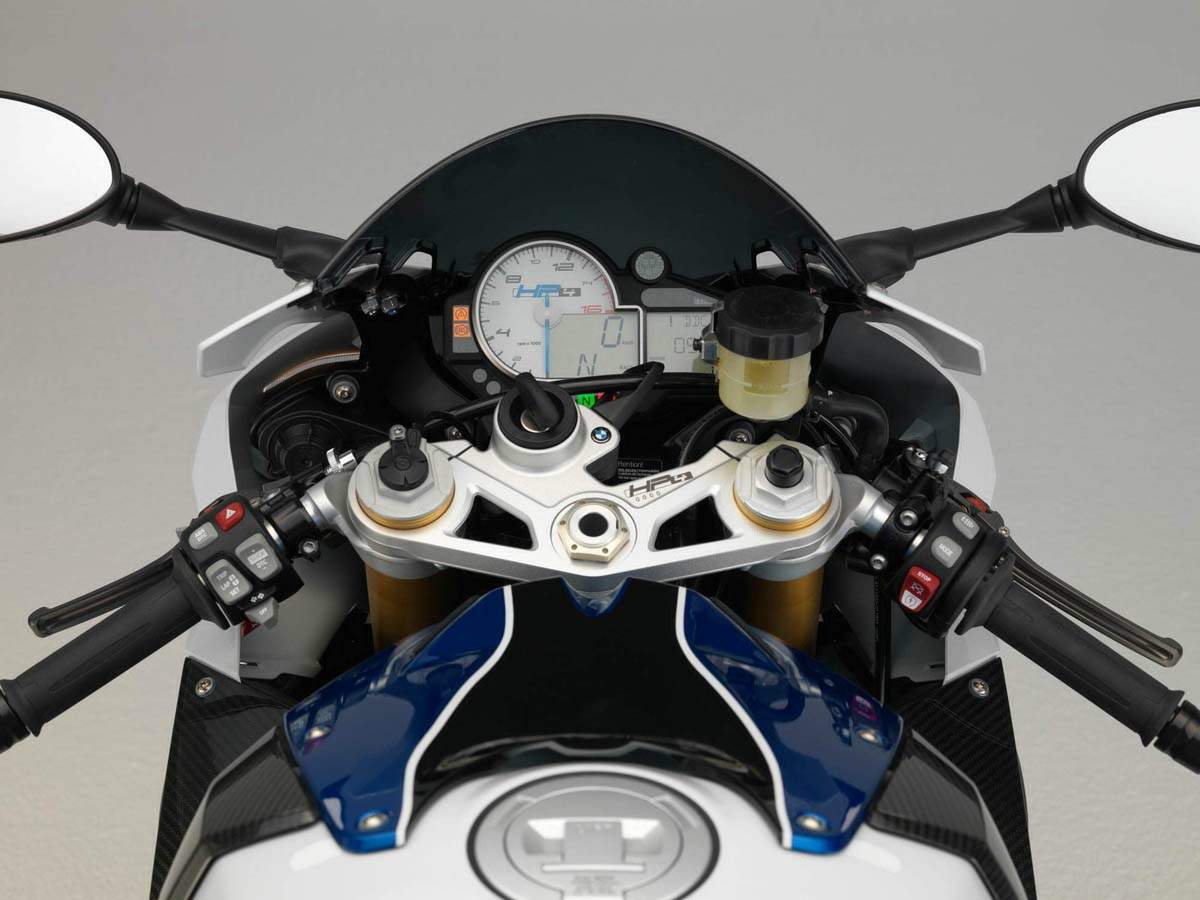

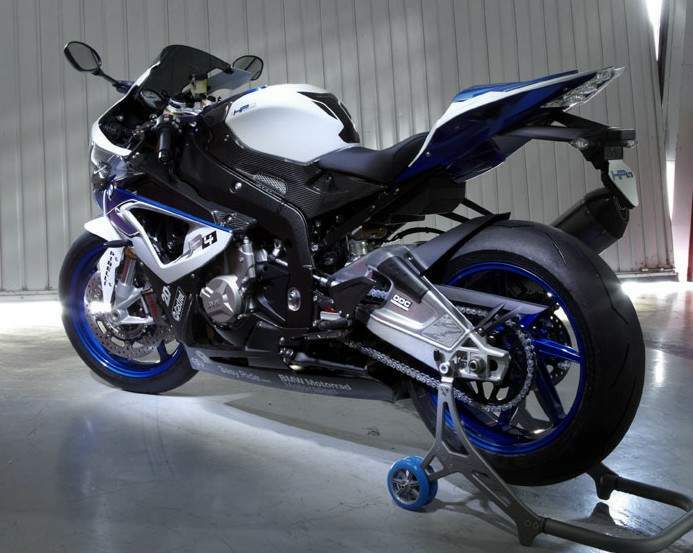

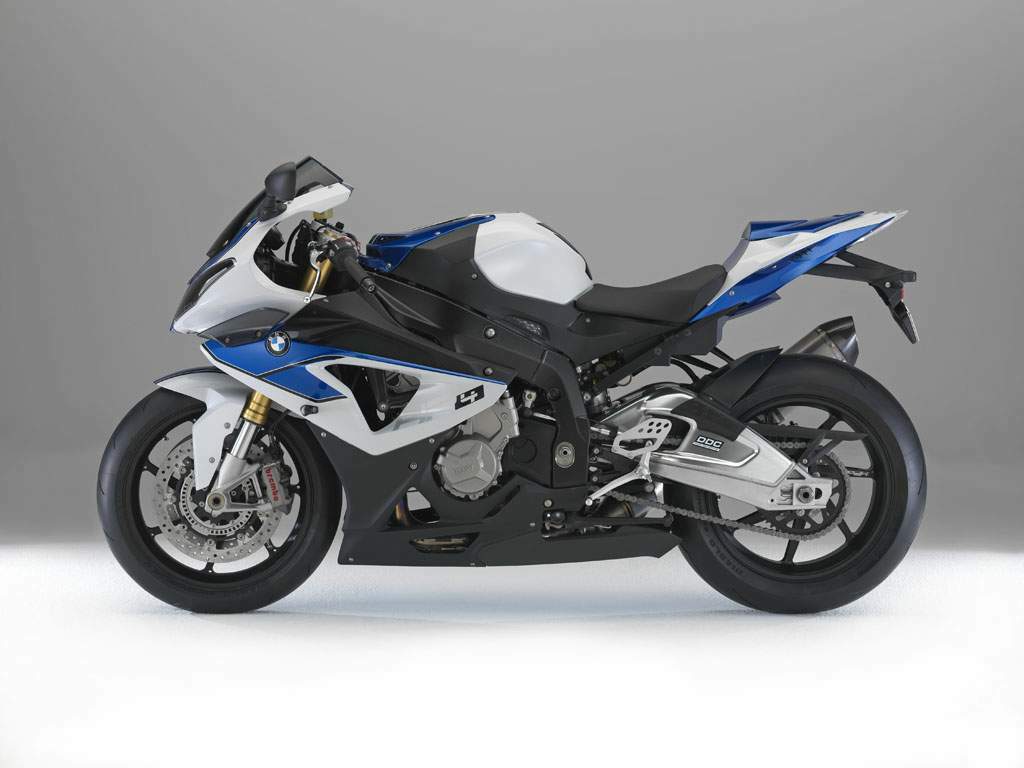

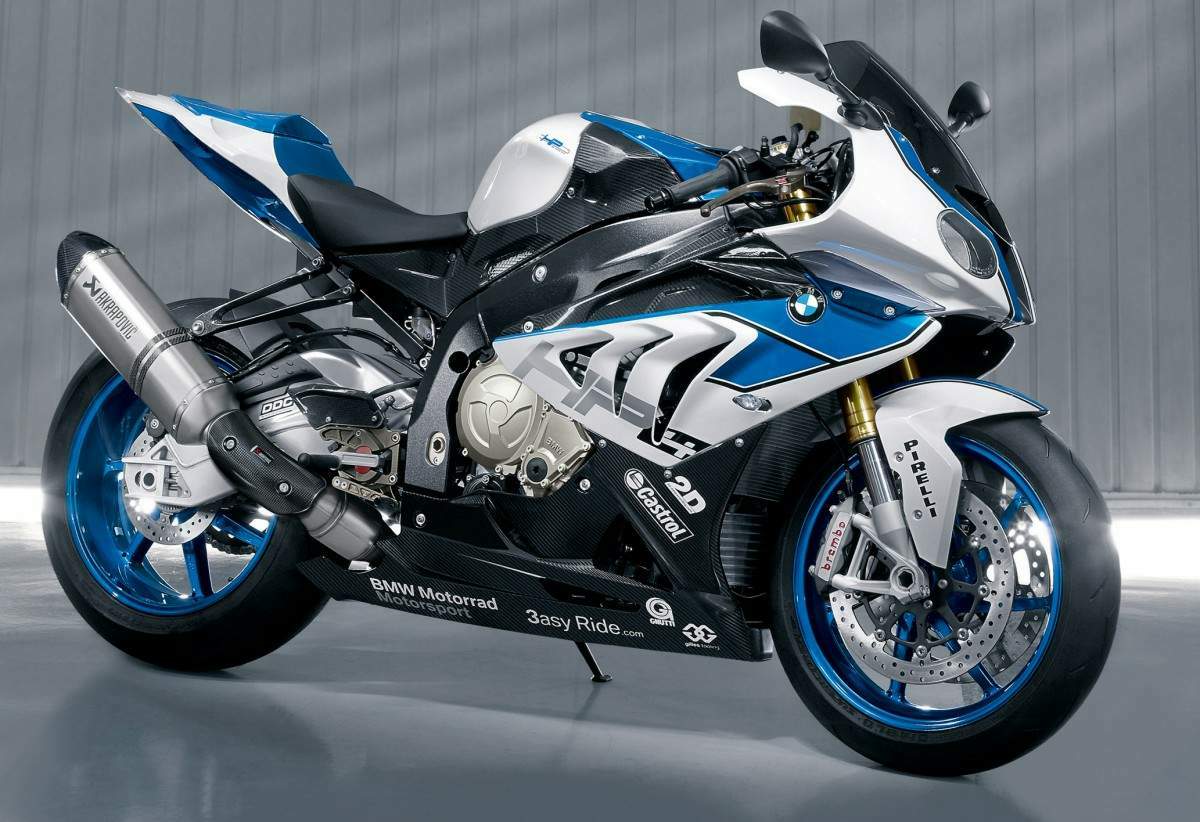

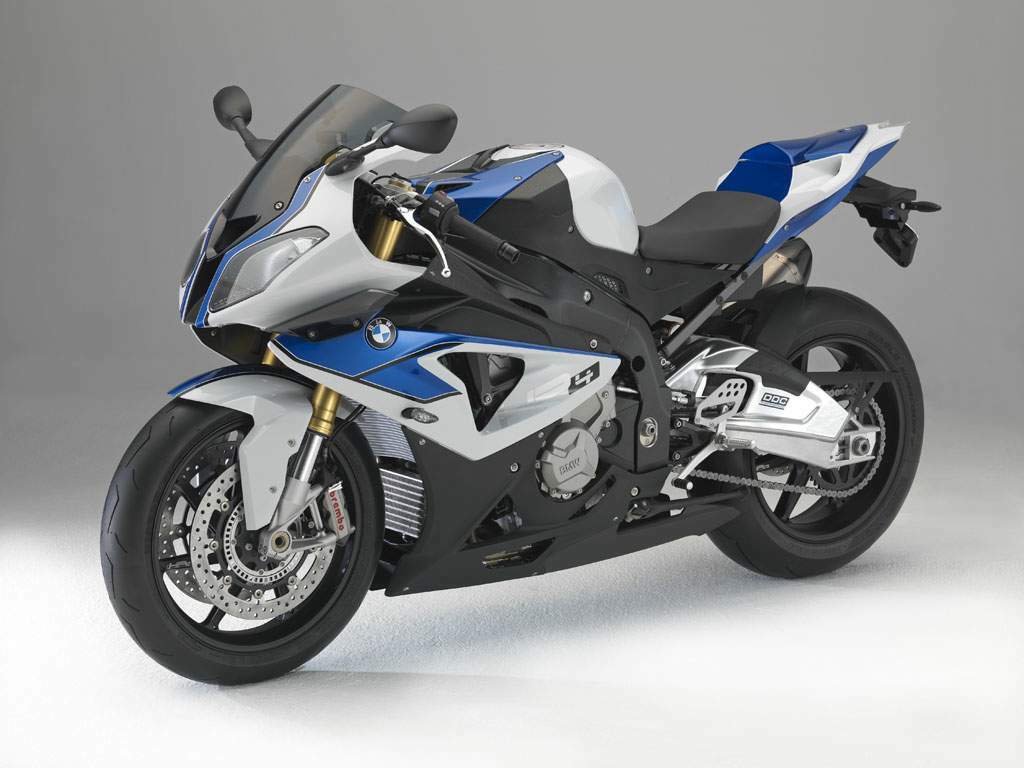

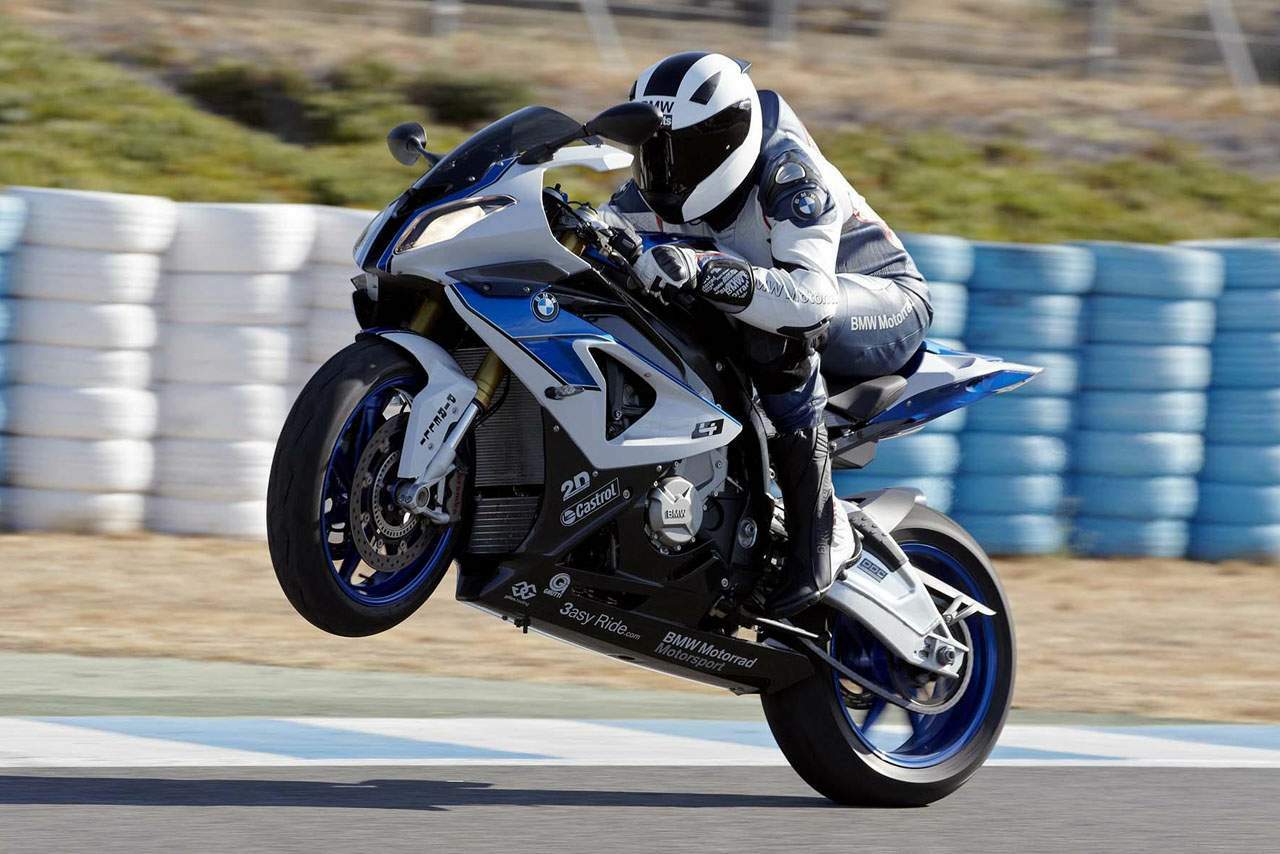

BMW HP 4 is produced in 2014. Engine is Four stroke, transverse four cylinder, DOHC, 4 valves per cylinder, displacement 999 cc / 61 cu in. , produces power 144 kW / 193 hp @ 13000 rpm and 112 Nm / 11.4 kgf-m / 82.6 lb-ft @ 9750 rpm. BMW HP 4 weighs 169 kg / 373 lbs.. BMW HP 4 has 7 photos.

Technical specifications

+ Add to 'Compare list'

Model:	HP 4
Years:	2014
Engine:	Four stroke, transverse four cylinder, DOHC, 4 valves per cylinder
Capacity:	999 cc / 61 cu in.
Bore x Stroke:	80 x 49,7 mm
Intake / exhaust Ø:	∅33.5 mm / ∅27.2 mm
Compression Ratio:	13:1
Cooling:	Liquid cooled
Induction:	Electronic fuel injection, digital motor electronics BMS-KP
Throttle valve diameter:	∅48 mm
Emission control:	Two regulated three-way catalytic converters, EU-3
Starting:	Electric
Alternator:	Three-phase generator 350 W
Battery:	12 V / 7 Ah, maintenance-free
Max Power:	144 kW / 193 hp @ 13000 rpm
Max Torque:	112 Nm / 11.4 kgf-m / 82.6 lb-ft @ 9750 rpm
Clutch:	Multiple disc antihopping clutch in oil bath, mechanically operated
Transmission:	6 Speed
Final Drive:	Chain
Gear Ratio:	1st 2.647 / 2nd 2.091 /3rd 1.727 / 4th 1.500 / 5th 1.360 / 6th 1.261:1
Transmission ratio:	1:2.647
Frame:	Bridge-type aluminium frame, load-bearing engine
Front Suspension:	USD fork with DEC, fixed fork tube diameter 46 mm damping electronically adjustable, spring preload adjustable,
Front Wheel Travel:	120 mm / 4.7 in.
Rear Suspension:	Aluminum double-sided swing arm with DDC central spring strut, compression and rebound stage electronically adjustable, spring preload hydraulicaily adjustable
Rear Wheel Travel:	130 mm / 5.1 in.
Front Brakes:	2 x ∅320mm discs radial monoblock, 4-piston fixed caliper
Rear Brakes:	Single ∅220mm disc, 1 piston floating caliper
ABS:	BMW Motorrad Race ABS (partially integral, disengageable)
Front Wheel:	3.50x17 Forged light alloy, 7 spoke
Front Tyre:	120/70 ZR17
Rear Wheel:	6.00 x 17 Forged light alloy, 7 spoke
Rear Tyre:	200/55 ZR17
Rake:	24.0°
Trail:	99 mm / 3.9 in
Dimensions:	Length: 2056 mm / 80.9 in. Width: 826 mm / 32.5 in. (incl. mirrors) Height: 1138 mm / 44.8 in. (excl. mirrors)
Wheelbase:	1422 mm / 56 in.
Seat Height:	820 mm / 33.3 in.
Dry Weight:	169 kg / 373 lbs.
Wet Weight:	199 kg / 439 lbs
Fuel Capacity:	17.5 Litres / US 4.6 gal.
Fuel Reserve:	Approx. 4 L / 1.1 US gal
