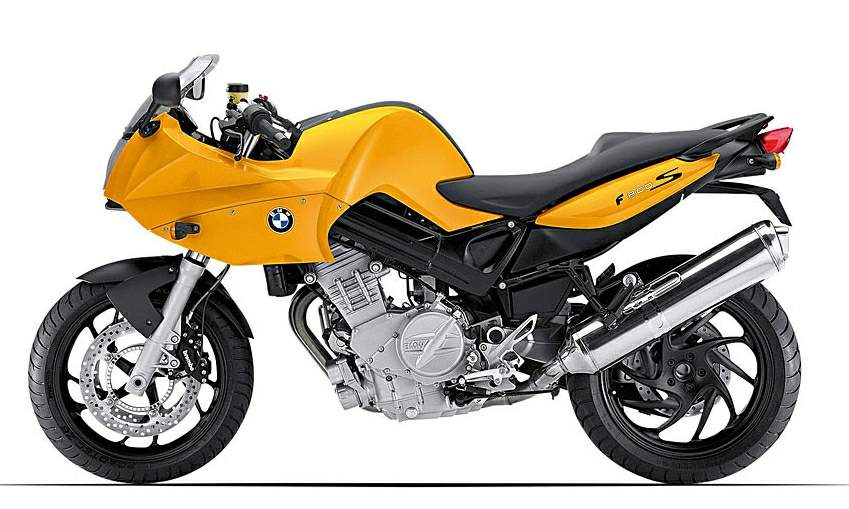

BMW F 800S (2009) technical specifications
BMW F 800S is produced in 2009. Engine is Four stroke, parallel twin cylinder, DOHC, 4 valves per cylinder, displacement 798 cc / 47.7 cub. in. , produces power 62.5 kW / 85 hp @ 8000 rpm and 80 Nm / 8.2 kgf-m / 59 lb-ft. @ 5800 rpm. BMW F 800S top speed is 219.7 km/h / 136.5 mph. BMW F 800S weighs 182 kg / 401 lbs. BMW F 800S has 2 photos.
Technical specifications
+ Add to 'Compare list'| Model: | F 800S |
| Years: | 2009 |
| Engine: | Four stroke, parallel twin cylinder, DOHC, 4 valves per cylinder |
| Capacity: | 798 cc / 47.7 cub. in. |
| Bore x Stroke: | 82 x 75.8 mm |
| Compression Ratio: | 12.0:1 |
| Cooling: | Liquid cooled |
| Lubrication: | Dry sump |
| Induction: | Electronic intake injection |
| Ignition: | Knock control and oxygen sensors. |
| Alternator: | Three-phase alternator 400 W |
| Battery: | 12V / 14 Ah, maintenance-free |
| Starting: | Electric |
| Max Power: | 62.5 kW / 85 hp @ 8000 rpm |
| Max Torque: | 80 Nm / 8.2 kgf-m / 59 lb-ft. @ 5800 rpm |
| Clutch: | Cable-operated multiplate-plate wet clutch |
| Transmission: | 6 Speed |
| Final Drive: | Belt drive with shock damper |
| Gear Ratio: | 1st 2.46 / 2nd 1.75 / 3rd 1.38 / 4th 1.17 / 5th 1.04 / 6th 0.96:1 |
| Frame: | Bridge-type aluminium frame |
| Front Suspension: | 43mm Telescopic forks |
| Front Wheel Travel: | 140 mm / 5.5 in. |
| Rear Suspension: | Die-cast aluminium single sided swinging arm with rear wheal axle and eccentric adjustment, central spring stud , spring pre-loaded hydraulically adjustable to continuously variable levels by means of handwheel, rebound damping adjustable. |
| Rear Wheel Travel: | 140 mm / 5.5 in |
| Front Brakes: | 2 x ∅320 mm discs, 4 piston calipers |
| Rear Brakes: | Single ∅265 mm disc, 2 piston caliper |
| Wheels: | Cast aluminium |
| Rim, Front: | 3.50 x 17" |
| Rim, Rear: | 5.50 x 17" |
| Front Tyre: | 120/70 ZR17 |
| Rear Tyre: | 180/55 ZR17 |
| Castor: | 95 mm / 3.7 in. |
| Steering Head Angle: | 64.2° |
| Dimensions: | Length 2082 mm / 82 in. Width 860 mm / 33.9 in. (incl. mirrors) Height 1155 mm / 45.5 in. (excl. mirrors) |
| Wheelbase: | 1466 mm / 57.7 in. |
| Seat Height: | 820 mm / 32.3 in. (low seat: 790 mm / 31.1 in.) |
| Dry Weight: | 182 kg / 401 lbs |
| Wet-Weight: | 209 kg / 461 lbs |
| Fuel Capacity: | 16 Litres / 4.2 US gal. |
| Standing ¼ Mile: | 12.2 sec |
| Top Speed: | 219.7 km/h / 136.5 mph |
