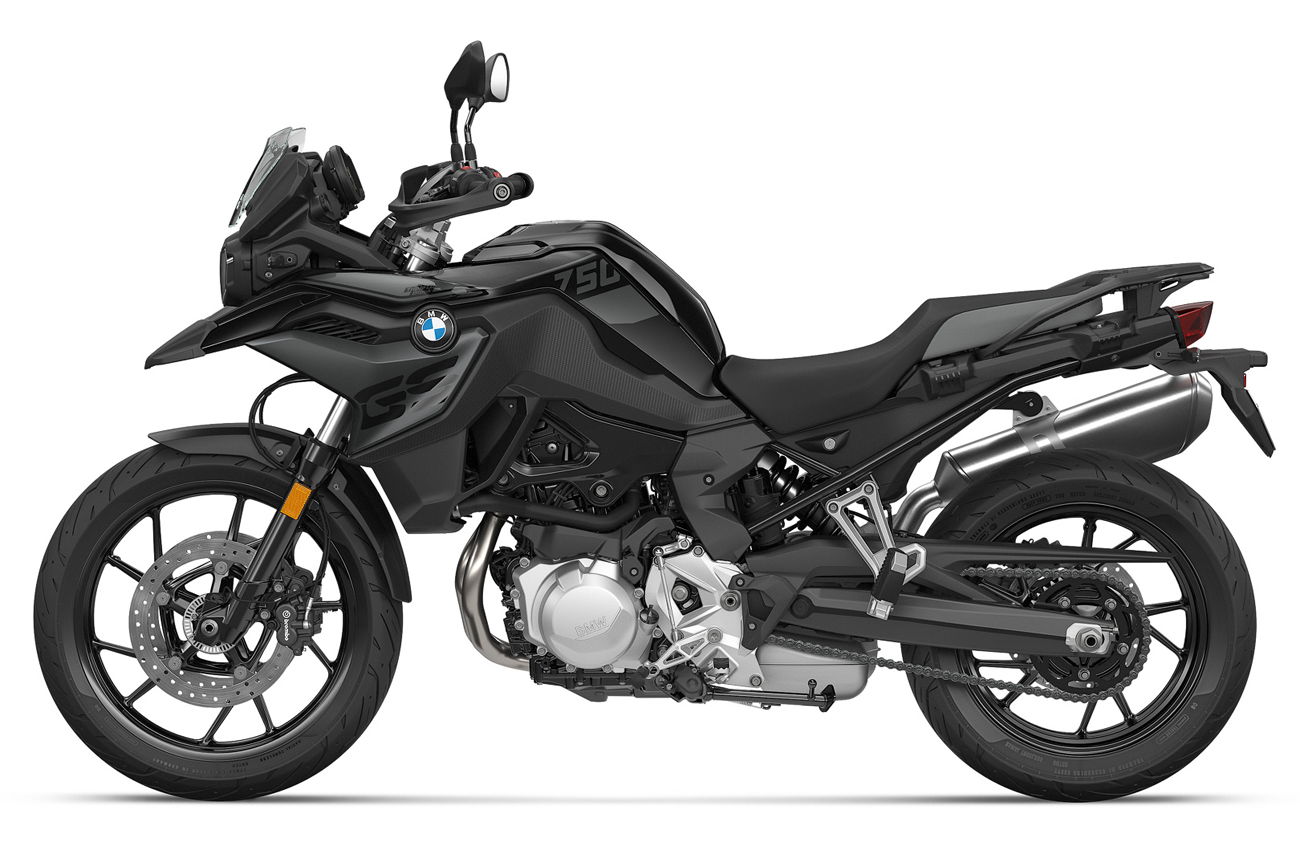

BMW F 750GS (2022) technical specifications

BMW F 750GS is produced in 2022. Engine is Four stroke, parallel twin cylinder, DOHC, 4 valves per cylinder, displacement 853 cc / 52 ci-in , produces power 77 hp / 57.4 kW @ 7500rpm and 83 Nm / 61.2 lb-ft @ 6000rpm. BMW F 750GS wet weight is 227 kg / 500 lbs. BMW F 750GS has 4 photos.

Technical specifications

+ Add to 'Compare list'

Model:	F 750GS
Years:	2022
Engine:	Four stroke, parallel twin cylinder, DOHC, 4 valves per cylinder
Capacity:	853 cc / 52 ci-in
Bore x Stroke:	84 x 77mm
Compression Ratio:	12.7:1
Cooling:	Liquid cooled
Lubrication:	Dry sump
Induction:	Electronic intake injection
Emission:	Closed-loop 3-way catalytic converter, emission standard EU-5
Ignition:	Knock control and oxygen sensors
Starting:	Electric
Max Power:	77 hp / 57.4 kW @ 7500rpm
Max Torque:	83 Nm / 61.2 lb-ft @ 6000rpm
Clutch:	Multiplate wet clutch (anti-hopping), mechanically controlled
Transmission:	Constant-Mesh 6 speed gearbox integrated in crankcase
Final Drive:	Endless O-ring chain with shock damping in rear wheel hub
Frame:	Steel bridge frame in monocoque design, load-bearing engine
Front Suspension:	41mm telescopic forks
Front Wheel Travel:	170 mm / 6.7 in - OE suspension lowing kit 150mm / 5.9 in
Rear Suspension:	Cast aluminium dual swing arm, central spring strut, spring pre-load hydraulically adjustable, rebound damping adjustable
Rear Wheel Travel:	170 mm / 6.7 in - OE suspension lowing kit 150mm / 5.9 in
Front Brakes:	2 x 305mm discs, 2 piston floating calipers
Rear Brakes:	Single 265mm disc,1 piston floating caliper
ABS:	BMW Motorrad ABS
Front Wheel:	Cast aluminum 19 x 2.5 in
Rear Wheel:	Cast aluminum 17 x 4.25 in
Front Tyre:	110/80 R19
Rear Tyre:	150/70 R17
Steering Head Angle:	63°
Castor:	104.5 mm / 4.1 in
Dimensions:	Length: 2255 mm / 88.8 in Width: 922 mm / 36.3 in (incl. mirrors) Height: 1225 mm / 48.2 in (ecxl. mirrors)
Wheelbase:	1559 mm / 61.4 in
Seat Height:	815 mm / 32 in - OE suspension lowering kit: 770 mm / 30.3 in - OE low seat: 790 mm / 31.1 in - OE comfort seat: 830 mm / 32.6 in
Wet Weight:	227 kg / 500 lbs
Fuel Capacity:	15 Litres / 4.0 US gal
