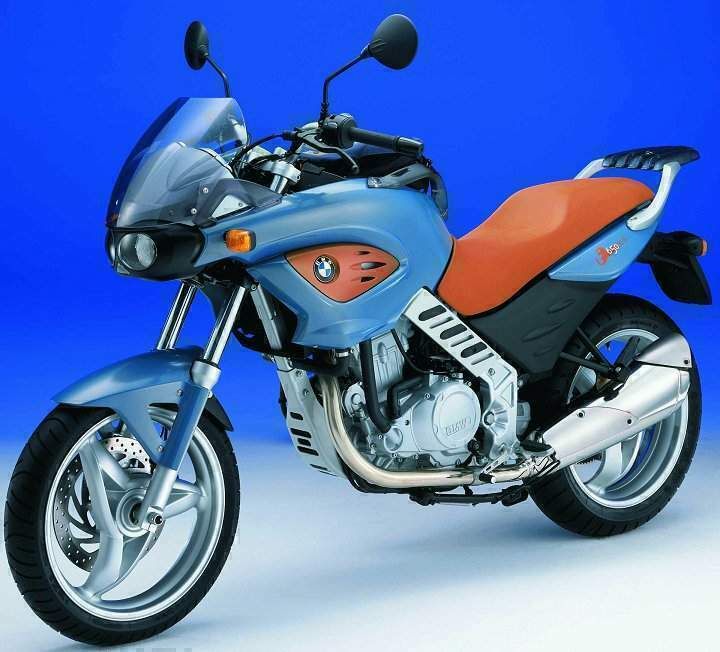

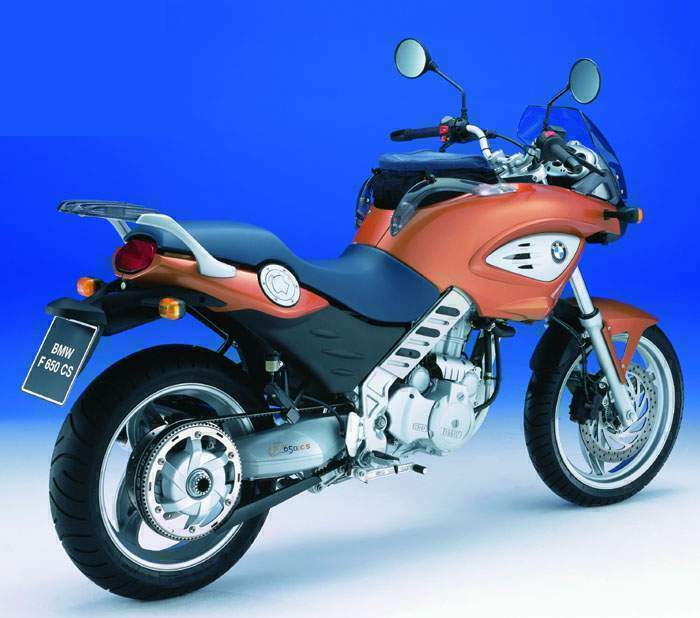

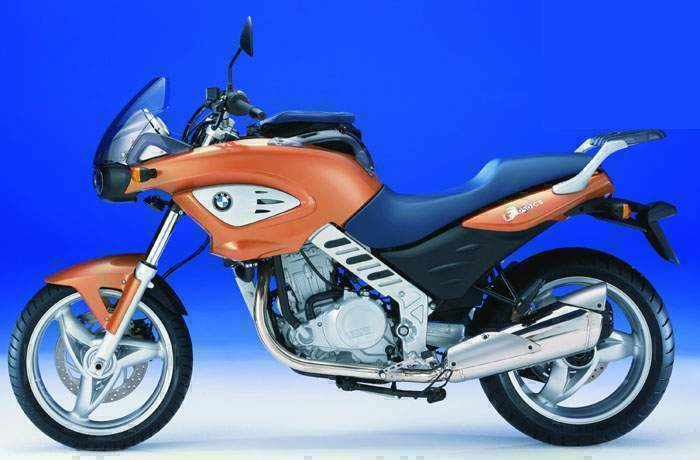

BMW F 650CS Scarver (2002) technical specifications

BMW F 650CS Scarver is produced in 2002. Engine is Four stroke, single cylinder, DOHC, 4 valves per cylinder, displacement 652 cc / 39.8 cub. in. , produces power 37.3 kW / 50 hp @ 6800 rpm and 62.3 Nm / 6.4 kgf-m / 46 ft-lbs @ 5500 rpm. BMW F 650CS Scarver top speed is 175 km/h / 108.7 mph. BMW F 650CS Scarver weighs 170 kg / 374 lbs. BMW F 650CS Scarver has 4 photos.

Technical specifications

+ Add to 'Compare list'

Model:	F 650CS Scarver
Years:	2002
Engine:	Four stroke, single cylinder, DOHC, 4 valves per cylinder
Capacity:	652 cc / 39.8 cub. in.
Bore x Stroke:	100 x 83mm
Compression Ratio:	11.5:1
Cooling:	Liquid cooled
Induction:	Electronic intake / BMW engine management
Ignition:	Electronic ignition integrated with fuel management
Starting:	Electric
Clutch:	Multi disc in oil bath
Max Power:	37.3 kW / 50 hp @ 6800 rpm
Max Torque:	62.3 Nm / 6.4 kgf-m / 46 ft-lbs @ 5500 rpm
Transmission:	5 Speed
Final Drive:	Belt
Gear Ratios:	1st 2.75 / 2nd 1.75 / 3rd 1.31 / 4th 1.05 / 5th 0.84:1
Frame:	Bridging consisting of steel profiles.
Front Suspension:	∅41mm Telescopic fork with integral brace
Front Wheel Travel:	125 mm / 4.9 in.
Rear Suspension:	Steel swingarm with progressive shock linkage
Rear Wheel Travel:	120 mm / 4.7 in.
Front Brakes:	Single ∅300mm disc 2 piston caliper
Rear Brakes:	Single ∅240mm disc 1 piston caliper
Wheels:	Die cast aluminium
Front Rim:	3.0 x 17
Rear rim:	4.5 x 17
Front Tyre:	110/70 ZR17
Rear Tyre:	160/60 ZR17
Steering Head Angle:	86°
Trail:	116 mm / 4.6 in.
Dimensions:	Length: 2142 mm / 84.3 in Width: 915 mm / 36 in. (incl. mirrors) Height: 1158 mm / 45.6 in. (excl. mirrors)
Wheelbase:	1493 mm / 58.8 in.
Seat Height:	780 mm / 30.7 in.
Dry Weight:	170 kg / 374 lbs
Wet Weight:	187 kg / 412 lbs
Fuel Capacity:	15 Liters / 4 US gal.
Consumption Average:	4.5 l/100 km / 62 US mpg.
Tank Range:	333 kms / 207 miles
Standing ¼ Mile:	13.5 sec
Top Speed:	175 km/h / 108.7 mph
