BMW CE-02 (2024) technical specifications

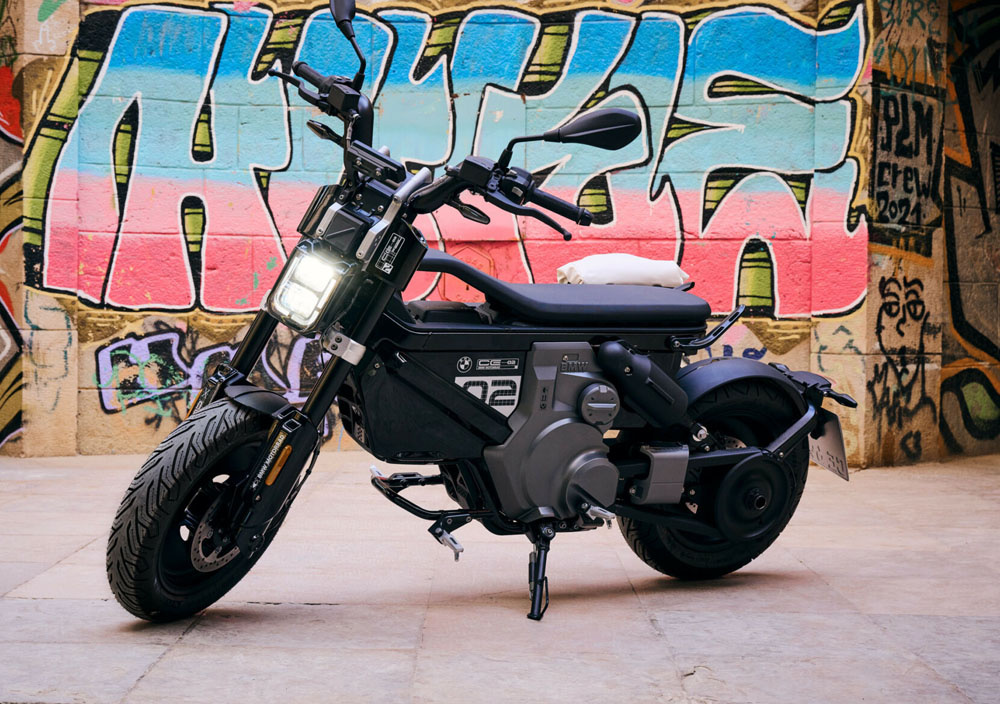

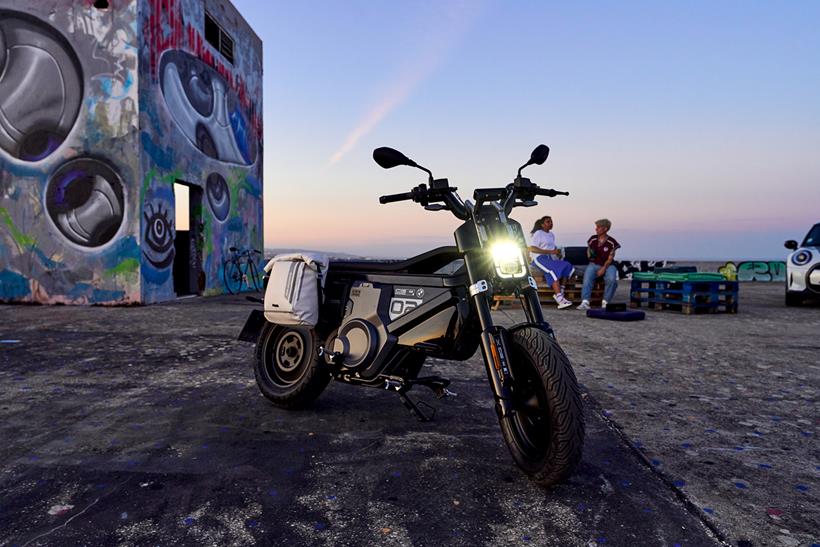

BMW CE-02 is produced in 2024. , produces power 11.2 kW / 15 hp @ 5000 rpm and 55 Nm / 40.6 lb-ft @ 0 - 1000 rpm. BMW CE-02 has 2 photos.

Technical specifications

Model:	CE-02
Years:	2024
Motor:	2 x 1.96 kW Lithium-ion batteries, 48v
Cooling System:	Air cooled
Starting:	Electric
Max Power:	11.2 kW / 15 hp @ 5000 rpm
Max Torque:	55 Nm / 40.6 lb-ft @ 0 - 1000 rpm
Range:	90 km / 56 miles
Generator:	DC/DC converter 215 W
Final Drive:	Belt
Total Gear Ratio:	7.8
Frame:	Double loop tubular steel frame with single-sided swingarm
Front Suspension:	37 mm Telescopic forks, ASC (Automatic Stability Control) and RSC (Recuperative Stability Control)
Front Wheel Travel:	117 mm / 4.6 in
Rear Suspension:	Single sided swingarm with spring and shock
Rear Wheel Travel:	117 mm / 4.6 in
Front Brakes:	240 mm Disc with 2-piston floating caliper
Rear Brakes:	220 mm Disc with single piston floating caliper
ABS System:	BMW ABS (front wheel only)
Wheels:	Light cast alloy wheels
Front Rim:	2.5 - 14
Rear Rim:	3.5 - 14
Front Tyre:	120/80 - 14
Rear Tyre:	150/70 - 14
Trail:	91.4 mm / 3.6 in
Dimensions:	Length 1971 mm / 77.6 in Width 846 mm / 33.3 in (34.5 in with mirrors) Height 1140 mm / 44.9 in
Wheelbase:	1354 mm / 53.3 in
Seat Height:	749 mm / 29.5 in
Weight:	132 kg / 291 lbs
Charging:	0.9 kW charger and 1.5kW quick charger (Hi-line model)
Charging Time:	20 - 80% = 2h 50m and 2h20m with 1.5 kW charger

★ ★ ★ ★ ★
