Technical specifications
|

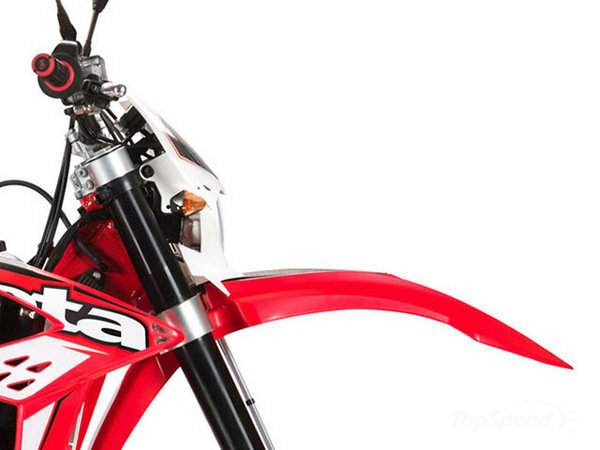

| Model: |
RS 500 |
| Years: |
2015 |
|
Engine:
|
Four stroke, single cylinder, 4 valve
|
|
Capacity:
|
478 cc / 29.2 cu in
|
|
Bore x Stroke:
|
100 x 60.8 mm
|
|
Cooling System:
|
Liquid cooled
|
|
Compression Ratio:
|
12.1:1
|
|
Induction:
|
Keihin FCR-MX 39mm
|
|
Lubrication:
|
Twin oil pumps with cartridge oil filter. Separate oil for engine and clutch
|
|
Engine Oil Capacity:
|
0.8 L / 0.2 US gal
|
|
Ignition:
|
DC-CDI with variable ignition timing, Kokusan.
|
|
Electrical:
|
Trail Tech Voyager GPS unit.
|
|
Starting:
|
Electric & Kick
|
|
Spark Plug:
|
NGK LKAR8A-9
|
|
Clutch:
|
Wet multi-disc
|
|
Gearbox Oil Capacity:
|
0.8 L / 0.2 US gal
|
|
Transmission:
|
6 Speed
|
|
Final Drive:
|
O-ring chain, DID
|
|
Primary Ratio:
|
31:73
|
|
Final Ratio:
|
15:48
|
|
Frame:
|
Lighter Molybdenum steel with double cradle split above exhaust port. Quick Air filter access from the side
|
|
Front Suspension:
|
Sachs USD fork, Ø 48 mm, adjustable compression and rebound, TFX technology,
|
|
Front Wheel Travel:
|
290 mm / 11.4 in
|
|
Rear Suspension:
|
Aluminum Body Sachs shock w/adjustable rebound and hi/low speed compression
|
|
Rear Wheel Travel:
|
290 mm / 11.4 in
|
|
Front Brakes:
|
Single Ø 260 mm disc, 2 piston caliper
|
|
Rear Brakes:
|
Single Ø 240mm disc, 1 piston caliper
|
|
Front Tyre:
|
90/90 -21
|
|
Rear Tyre:
|
140/80 -18
|
|
Wheelbase:
|
1475 mm / 58.1 in
|
|
Ground Clearance:
|
320 mm / 12.6 in
|
|
Seat Height:
|
934.7 mm / 36.8 in
|
|
Dry Weight:
|
111.5 kg / 246 lbs
|
|
Fuel Capacity:
|
7.9 L / 2.1 US gal
|
