Technical specifications
|
| Model: |

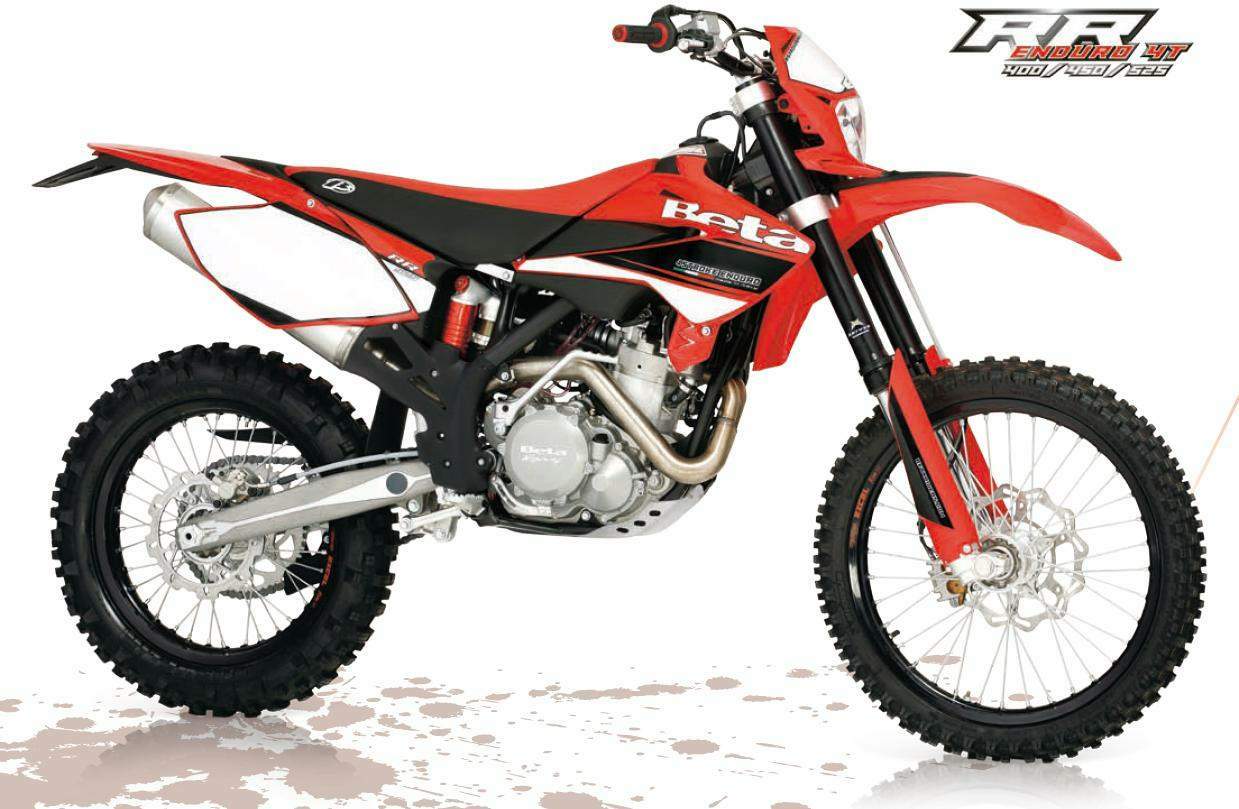

RR 450 Enduro |
| Years: |
2007-08 |
|
Engine:
|
Four stroke, single cylinder, DOHC, 4 valves
|
|
Capacity:
|
448 cc / 27.3 cu in
|
|
Bore x Stroke:
|
89 x 72 mm
|
|
Compression Ratio:
|
11.0:1
|
|
Cooling System:
|
Liquid cooled
|
|
Lubrication System:
|
Forced, 2 oil pumps
|
|
Induction:
|
Keihin FCR-MX 39
|
|
Ignition:
|
DC-CDI without trembler with variable ignition timing, Kokusan type
|
|
Starting:
|
Kick
|
|
Transmission:
|
6 Speed
|
|
Final Drive:
|
Chain
|
|
Frame:
|
Molybdenum steel with double cradle split above the exhaust port
|
|
Front Suspension:
|
Hydraulic USD fork, Ø 45mm
|
|
Front Wheel Travel:
|
290 mm / 11.2 in
|
|
Rear Suspension:
|
Monoshock with progressive compound lever
|
|
Rear Wheel Travel:
|
300 mm / 11.8 in
|
|
Front Brakes:
|
Single Ø 255mm disc, 2 piston floating caliper
|
|
Rear Brakes:
|
Single Ø 240 mm disc, 1 piston floating caliper
|
|
Front Wheel:
|
1.60 x 21
|
|
Front Tyre:
|
90/90 - 21
|
|
Rear Wheel:
|
2.15 x 18
|
|
Rear Tyre:
|
140/80 - 18
|
|
Dimensions:
|
Length: 2270 mm / 89.4 in Width: 813 mm / 32.0 in Height: 1255 mm / 49.4 in
|
|
Wheelbase:
|
1500 mm / 59.1 in
|
|
Seat Height:
|
940 mm / 37 in
|
|
Ground Clearance:
|
320 mm / 12.6 in
|
|
Dry Weight:
|
117 kg / 258 lbs
|
|
Fuel Capacity:
|
8.5 L / 2.2 US gal
|
|
Fuel Reserve:
|
1 L / 0.3 US gal
|
