Benelli Tornado Tre 1130 (2006-07) technical specifications

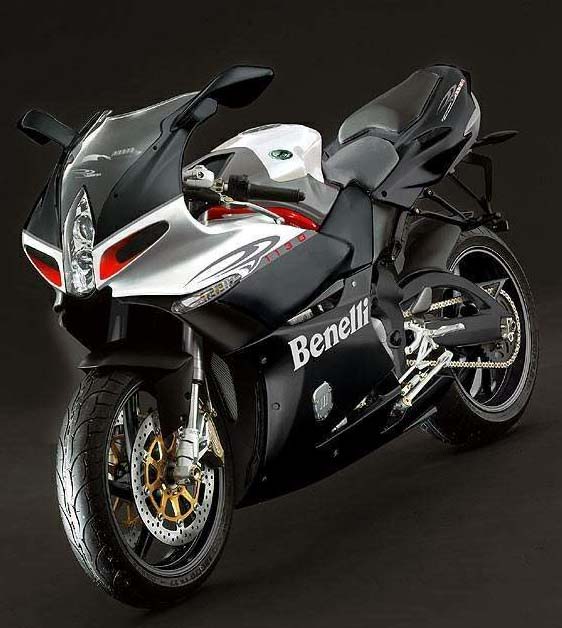

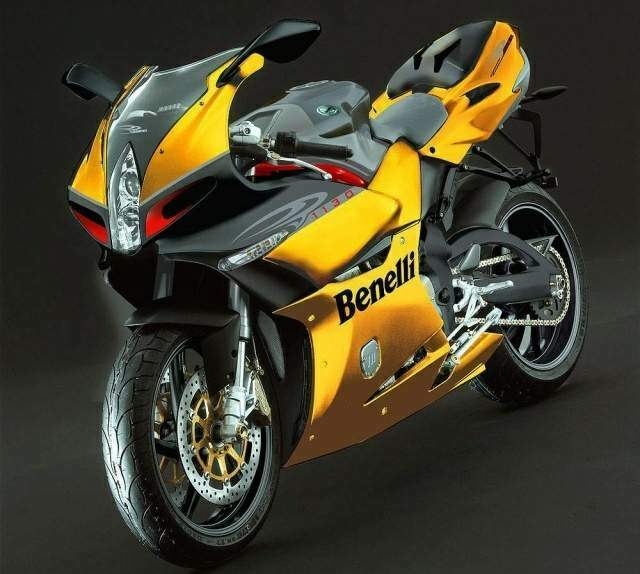

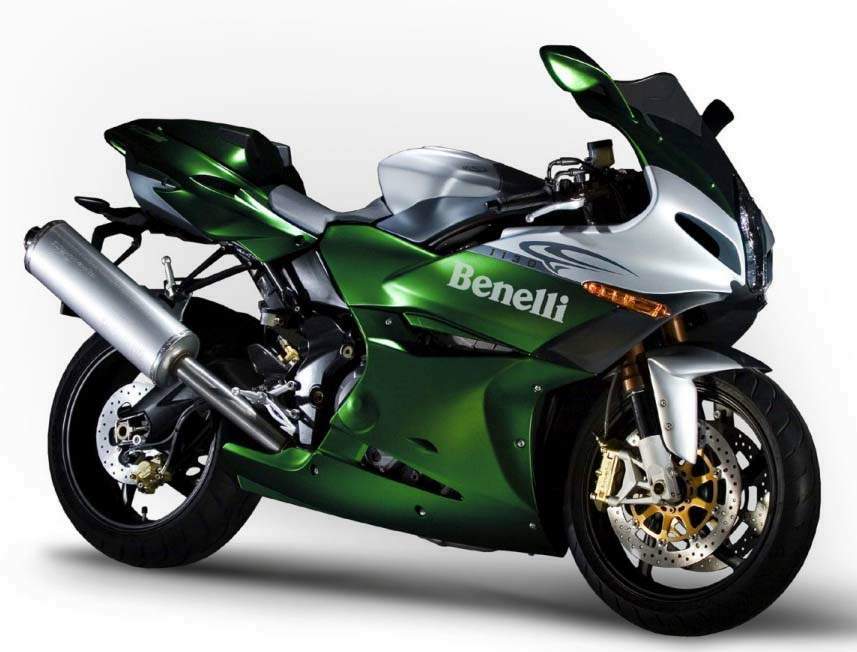

Benelli Tornado Tre 1130 is produced in 2006-07. Engine is Four stroke, transverse three cylinder, DOHC, 4 valves per cylinder, displacement 1130 cc / 69 cu in , produces power 120 kW / 163 hp @ 10500 rpm and 124 Nm / 12.6 kgf-m / 91.45 lb-ft @ 8000 rpm. Benelli Tornado Tre 1130 weighs 195 kg / 430 lbs. Benelli Tornado Tre 1130 has 3 photos.
Technical specifications
+ Add to 'Compare list'| Model: | Tornado Tre 1130 |
| Years: | 2006-07 |
| Engine: | Four stroke, transverse three cylinder, DOHC, 4 valves per cylinder |
| Capacity: | 1130 cc / 69 cu in |
| Bore x Stroke: | 88 x 62 mm |
| Cooling System: | Liquid cooled |
| Compression Ratio: | 11.5:1 |
| Lubrication: | Wet sump |
| Induction: | Electronic injection with 1 injector per cylinder |
| Exhaust: | With catalytic converter and oxygen sensor |
| Spark Plug: | NGK CR9E |
| Ignition: | Electronic injection |
| Electric: | Electric |
| Max Power: | 120 kW / 163 hp @ 10500 rpm |
| Max Torque: | 124 Nm / 12.6 kgf-m / 91.45 lb-ft @ 8000 rpm |
| Clutch: | Wet clutch with hydraulic command |
| Transmission: | 6 Speed |
| Final Drive: | Chain drive, ratio 16:37 |
| Primary Drive: | 44/79 |
| Gear Ratio: | 1st 14/39 / 2nd 18/35 / 3rd 21/32 / 4th 23/30 / 5th 24/28 / 6th 26/27 |
| Frame: | Mixed solution. Front: ASD steel tube trellis, fastened to boxed rear section, aluminium alloy castings. Subframe: aluminium die-cast. |
| Front Suspension: | Marzocchi “upside down” stanchion fork Ø 50mm, adjustable in compression and extension with spring pre-load |
| Rear Suspension: | Asymmetric swingarm, composed of cast aluminium and pressed in aluminium alloy, with Extreme Technology single shock absorber adjustable in compression, dual regulation for low and high speed damping andextension and spring pre-load. |
| Front Brakes: | 2 x 320mm Ø discs, 4 piston caliper |
| Rear Brakes: | Single 240 mm Ø disc, 2 piston caliper |
| Front Tyre: | 120/70-17 |
| Rear Tyre: | 190/50-17 |
| Wheelbase: | 1419 mm / 55.9 in |
| Seat Height: | 807 mm / 31.8 in |
| Ground Clearance: | 140 mm / 5.7 in |
| Dry Weight: | 195 kg / 430 lbs |
| Fuel Capacity: | 20.8 Litres / 5.5 gal |
