Benelli 304 (1984-88) technical specifications

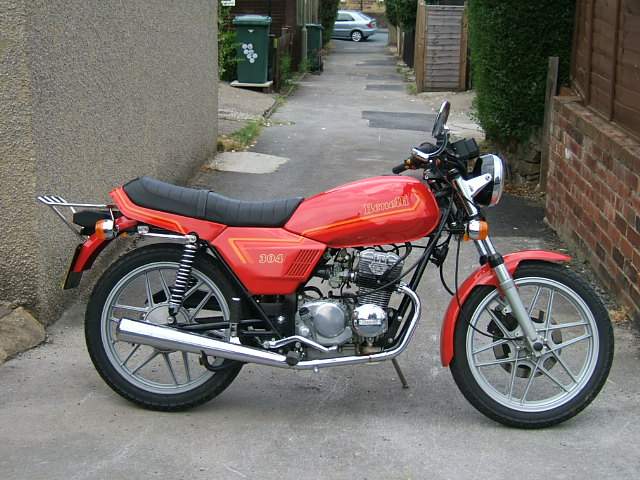

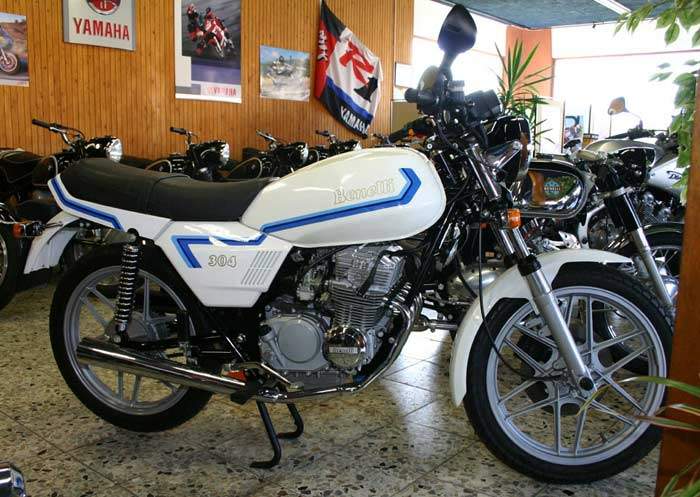

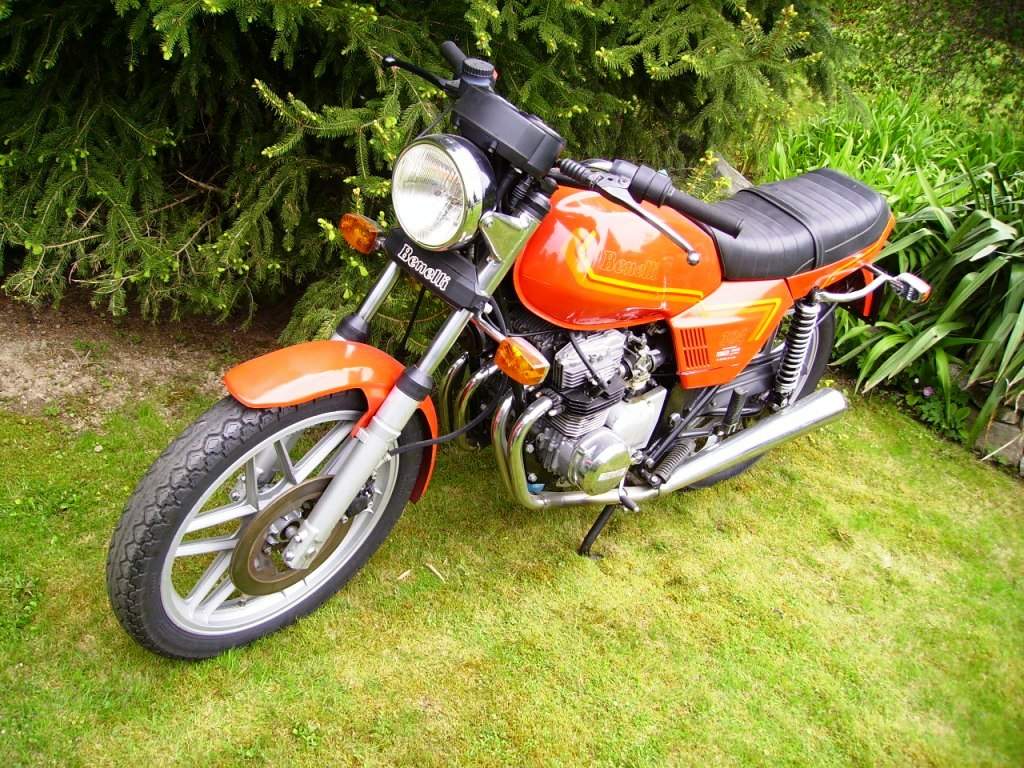

Benelli 304 is produced in 1984-88. Engine is Four stroke, transverse four cylinder, OHV, 2 valves per cylinder, displacement 231.4 cc / 14.1 cu in , produces power 20.1 kW / 27.8 hp @ 10500 rpm and 18.8 Nm / 1.92 kgf-m / 13.86 lbs-ft @ 9000 rpm. Benelli 304 top speed is 150 km/h / 934 mph. Benelli 304 weighs 134 kg / 295 lbs. Benelli 304 has 3 photos.
Technical specifications
+ Add to 'Compare list'Model: | 304 |
Years: | 1984-88 |
Engine: | Four stroke, transverse four cylinder, OHV, 2 valves per cylinder |
Capacity: | 231.4 cc / 14.1 cu in |
Bore x Stroke: | 44 x 38 mm |
Compression Ratio: | 10.5:1 |
Cooling System: | Air cooled |
Oil Capacity: | 2.5 L / 2.6 US qts |
Exhaust: | 4-into-2 |
Induction: | 4 x Dell'Orto PHBG 18 B carburetors |
Ignition: | Coil, distributor |
Starting: | Electric (kick start optional) |
Max Power: | 20.1 kW / 27.8 hp @ 10500 rpm |
Max Torque: | 18.8 Nm / 1.92 kgf-m / 13.86 lbs-ft @ 9000 rpm |
Transmission: | 5 Speed |
Final Drive: | Chain |
Frame: | Open tubular frame, load bearing engine |
Front Suspension: | Hydraulic forks, 30 mm Ø |
Rear Suspension: | Swinging arm with hydraulic shocks |
Front Brakes: | Single 260 mm disc |
Rear Brakes: | 158 mm Drum |
Front Tyre: | 3.75 -18 |
Rear Tyre: | 3.00 -18 |
Dimensions: | Length: 1940 mm / 76.4 in Width: 710 mm / 28.0 in Height: 950 mm / 37.4 in |
Wheelbase: | 1270 mm / 50.0 in |
Dry Weight: | 134 kg / 295 lbs |
Fuel Capacity: | 11 Litres / 2.9 US gal |
Top Speed: | 150 km/h / 934 mph |
