Technical specifications
|
| Model: |
125 Sport Special |
| Years: |
1968-73 |
|

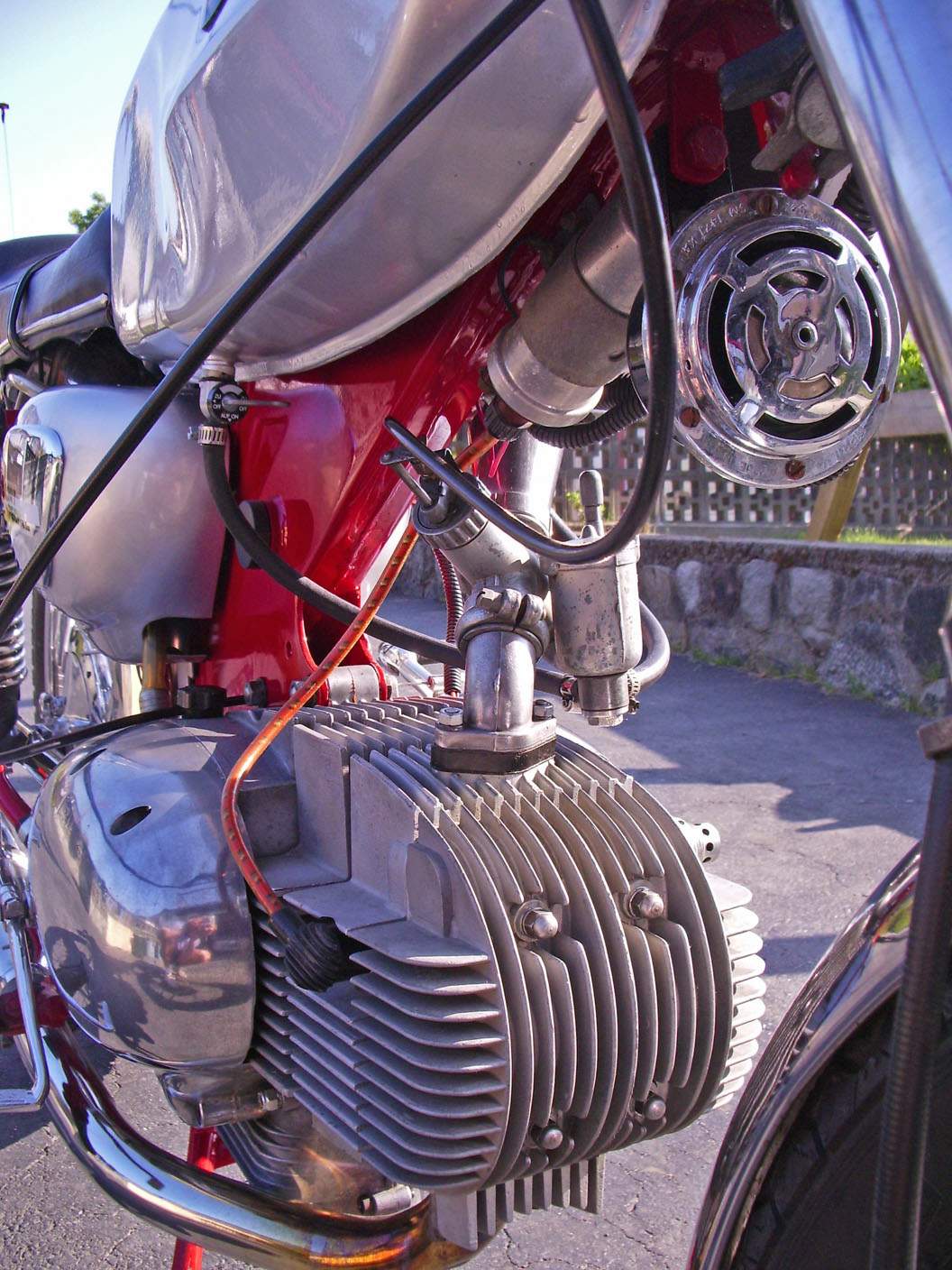

Engine:
|
Horizontal single cylinder, 4-stroke
|
|
Capacity:
|
123.6 cc / 7.54 cu in
|
|
Bore x Stroke:
|
54 x 54 mm
|
|
Compression Ratio:
|
9.2:1
|
|
Lubrication:
|
Forced with gear pump
|
|
Oil Capacity:
|
2 L / 2.1 US qts
|
|
Induction:
|
Dell'Orto UB 22BS carburetor
|
|
Ignition:
|
Flywheel with HV coil outer
|
|
Starting:
|
Kick start
|
|
Max Power:
|
9.3 kW / 12.5 hp @ 8500 rpm
|
|
Clutch:
|
Multi disc in oil bath
|
|
Transmission:
|
5 Speed
|
|
Final Drive:
|
Chain
|
|
Frame:
|
Single tube, open cradle, steel
|
|
Front Suspension:
|
Telescopic fork
|
|
Rear Suspension:
|
Swinging arm, hydraulic shock absorbers
|
|
Front Brakes:
|
Drum, 175 mm Ø
|
|
Rear Brakes:
|
Drum, 125 mm Ø
|
|
Wheels:
|
Steel, laced wire spokes
|
|
Front Tyre:
|
2.75-18
|
|
Rear Tyre:
|
2.75-18
|
|
Dimensions:
|
Length: 1940 mm / 76.4 in Width: 830 mm / 32.7 in Height: 970 mm / 38.2 in
|
|
Wheelbase:
|
1260 mm / 49.6 in
|
|
Ground Clearance:
|
150 mm / 5.9 in
|
|
Seat Height:
|
710 mm / 30.0 in
|
|
Dry Weight:
|
103 kg / 227 lbs
|
|
Fuel Capacity:
|
12.5 L / 3.3 US gal
|
|
Consumption Average:
|
2.6 L/100 km / 38.5 km/l / 90 US mpg
|
|
Top Speed:
|
130 km/h / 81 mph
|
