Technical specifications
|
| Model: |

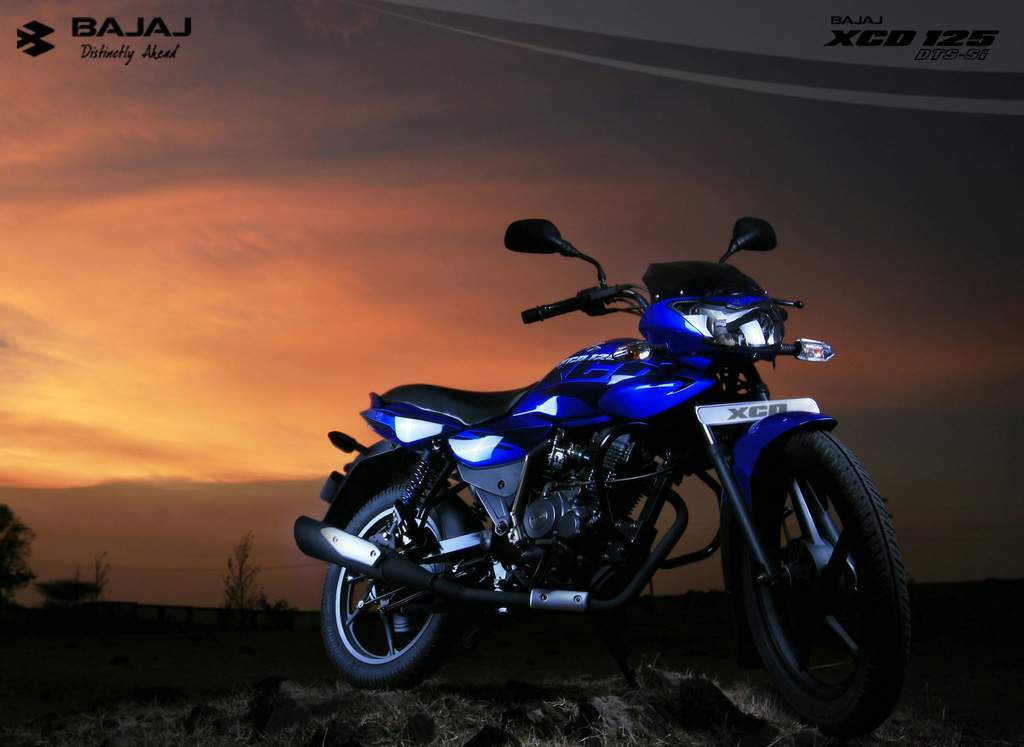

XCD 125 DTS-Si |
| Years: |
2008-10 |
|
Engine:
|
Four stroke, single cylinder, SOHC, 2 valve
|
|
Capacity:
|
124.5 cc / 7.6 cu in
|
|
Bore x Stroke:
|
54 x 54.4 mm
|
|
Compression System:
|
9.5:1
|
|
Cooling System:
|
Air/oil cooled
|
|
Lubrication System:
|
Wet sump, forced
|
|
Exhaust:
|
Exhaust-TEC
|
|
Induction:
|
Carburetor, side draught, UCSL Mikuni VM16
|
|
Ignition:
|
Microprocessor controlled Digital CDI
|
|
Battery:
|
12V, 5Ah
|
|
Starting:
|
Electric & Kick start
|
|
Max Power:
|
7.0 kW / 9.4 hp @ 7000 rpm
|
|
Max Torque:
|
10.8 Nm / 1.1 kgf-m / 8.0 ft. lbs @ 6500 rpm
|
|
Clutch:
|
Wet, multiplate
|
|
Transmission:
|
4 Speed, constant mesh
|
|
Final Drive:
|
Chain
|
|
Frame:
|
Single down tube with engine as stress member
|
|
Dimensions:
|
Length: 1980 mm / 78.0 in Width: 760 mm / 29.9 in Height: 1200 mm / 47.2 in
|
|
Wheelbase:
|
1275 mm / 50.2 in
|
|
Ground Clearance:
|
170 mm / 6.7 in
|
|
Front Suspension:
|
Telescopic forks
|
|
Front Wheel Travel:
|
125 mm / 4.9 in
|
|
Rear Suspension:
|
Trailing arm with dual SNS type springs with hydraulic shock absorbers, adjustable
|
|
Rear Wheel Travel:
|
105 mm / 4.1 in
|
|
Front Brakes:
|
130 mm drum
|
|
Rear Brakes:
|
130 mm drum
|
|
Wheels:
|
Aluminium alloy, 6-spoke
|
|
Front Wheel:
|
2.75-17
|
|
Rear Wheel:
|
3.00-17
|
|
Dry Weight:
|
112 kg / 247 lbs
|
|
Fuel Capacity:
|
8 L / 2.1 US gal
|
|
Fuel Reserve:
|
1.8 L / 0.48 US gal
|
|
Top Speed:
|
90 km/h / 56 mph
|
