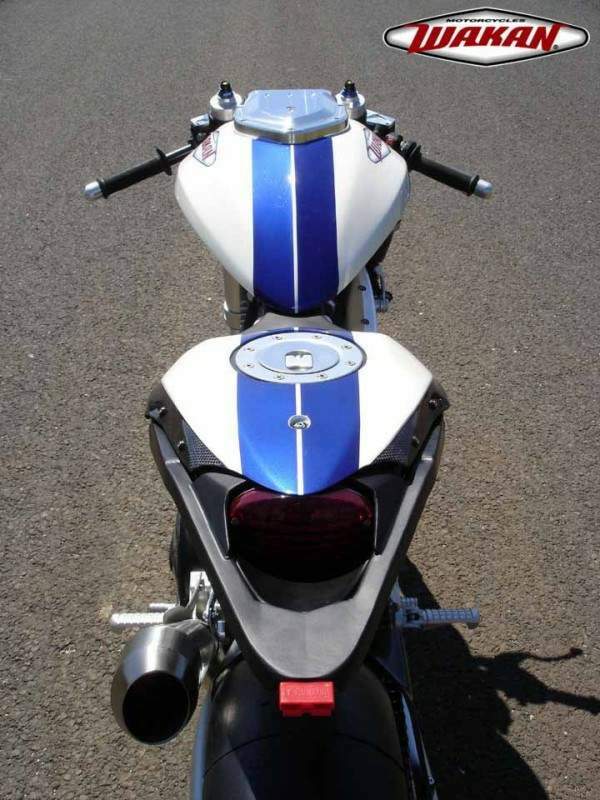

Avinton / Wakan Wakan 1640 (2006) technical specifications
Avinton / Wakan Wakan 1640 is produced in 2006. Engine is Four stroke, 45°V-twin. OHV, 4 can pushrod., displacement 1640 cc / 100 cu-in , produces power 120 hp / 89.5 kW @ 6250 rpm and 120 ft-lb / 165 Nm @ 4250 rpm. Avinton / Wakan Wakan 1640 weighs 177 kg / 390 lbs. Avinton / Wakan Wakan 1640 has 3 photos.
Technical specifications
+ Add to 'Compare list'| Model: | Wakan 1640 |
| Years: | 2006 |
| Engine: | Four stroke, 45°V-twin. OHV, 4 can pushrod. |
| Capacity: | 1640 cc / 100 cu-in |
| Bore x Stroke: | 101.6 x 101.0 mm |
| Cooling System: | Air cooled |
| Compression Ratio: | 10.3:1 |
| Induction: | Single 42mm Keihin FCR flatside downdraft |
| Ignition: | CDI |
| Starting: | Electric |
| Max Power: | 120 hp / 89.5 kW @ 6250 rpm |
| Max Torque: | 120 ft-lb / 165 Nm @ 4250 rpm |
| Transmission: | 5 Speed |
| Final Drive: | Belt |
| Frame: | TIG welded chrome-moly steal tubular backbone frame with integrated oil tank. |
| Front Suspension: | 46mm Cariani Italy inverted fully adjustable forks |
| Rear Suspension: | Extruded aluminum swinging arm with Sachs shocks |
| Front Brakes: | Single 340mm disc 6 piston caliper |
| Rear Brakes: | Single 220mm disc 2 piston caliper |
| Front Tyre: | 120/70 ZR17 |
| Rear Tyre: | 180/55 ZR17 |
| Seat Height: | 790 mm / 31.1 in |
| Dry Weight: | 177 kg / 390 lbs |
| Fuel Capacity: | 13 Litres / 3.4 US gal |
