Technical specifications
|
| Model: |

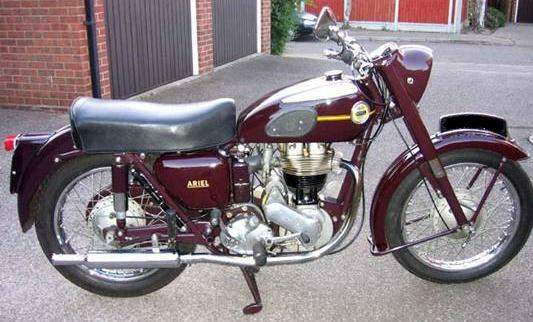

NH 350 Red Hunter |
| Years: |
1945-59 |
|
Engine:
|
Four stroke, single cylinder, OHV
|
|
Capacity:
|
346 cc / 21.1 cu in
|
|
Bore x Stroke:
|
72 x 85 mm
|
|
Cooling System:
|
Air cooled
|
|
Compression Ratio:
|
6.2:1 (after 1957: 7.5:1)
|
|
Exhaust:
|
1-into-1
|
|
Induction:
|
Carburetor
|
|
Ignition:
|
Magneto/flywheel
|
|
Battery:
|
6V
|
|
Starting:
|
Kick start
|
|
Max Power:
|
14.2 kW / 19.4 hp @ 5800 rpm
|
|
Clutch:
|
Dry, multiplate
|
|
Transmission:
|
4-Speed
|
|
Final Drive:
|
Chain
|
|
Gear Ratios:
|
(20T sprocket) 1st 15.3 / 2nd 10.1 / 3rd 7.3 / 4th 5.7:1 (19T sprocket) 1st 16.1 / 2nd 10.6 / 3rd 7.7 / 4th 6.0:1 (18T sprocket) 1st 17.0 / 2nd 11.2 / 3rd 8.2 / 4th 6.4:1 (17T sprocket) 1st 18.0 / 2nd 11.9 / 3rd 8.7 / 4th 6.8:1
|
|
Frame:
|
Semi-double cradle
|
|
Front Suspension:
|
Telescopic fork, hydraulic
|
|
Rear Suspension:
|
Plungers
|
|
Front Brakes:
|
Drum
|
|
Rear Brakes:
|
Drum
|
|
Wheels:
|
Steel, laced wire spokes
|
|
Front Rim:
|
3.00 x 20
|
|
Rear Rim:
|
3.25 x 19
|
|
Dimensions:
|
Length: 2180 mm / 85.8 in Width: 640 mm / 25.2 in
|
|
Dry Weight:
|
159 kg / 350.5 lbs
|
|
Fuel Capacity:
|
11 L / 2.9 US gal
|
|
Top Speed:
|
117 km/h / 72.7 mph
|
