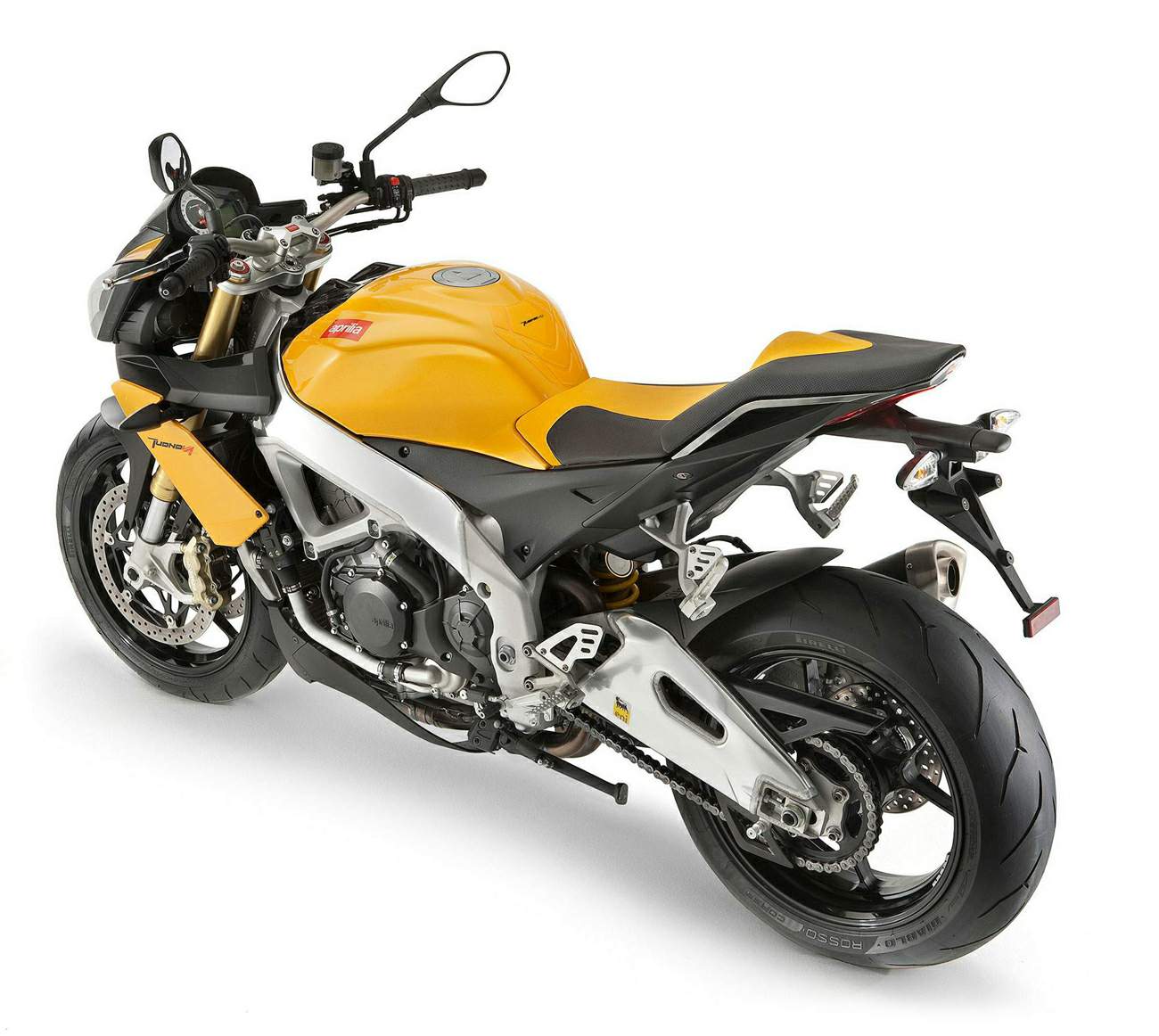

Aprilia Tuono V4 R APRC (2013) technical specifications

Aprilia Tuono V4 R APRC is produced in 2013. Engine is Four stroke, longitudinal 65° V four , DOHC, 4 valves per cylinder, displacement 998,9 cc / 60.9 cu-in , produces power 124.7 kW / 167.3 hp@ 11500 rpm and 111.5 Nm / 11.4 kgf-m 82.2 lb/ft @ 9500 rpm. Aprilia Tuono V4 R APRC weighs 183 kg / 403.4 lbs. Aprilia Tuono V4 R APRC has 5 photos.

Technical specifications

+ Add to 'Compare list'

Model:	Tuono V4 R APRC
Years:	2013
Engine:	Four stroke, longitudinal 65° V four , DOHC, 4 valves per cylinder
Capacity:	998,9 cc / 60.9 cu-in
Bore x Stroke:	78 x 52.3 mm
Cooling System:	Liquid cooled
Compression Ratio:	13.0:1
Induction:	Airbox with front dynamic air intakes; 4 Weber-Marelli Ø48-mm throttle bodies with 4 injectors and latest generation Ride-by-Wire engine management.
Engine Maps:	Choice of three different engine maps selectable by the rider with bike in motion: T (Track), S (Sport), R (Road)
Ignition:	Magneti Marelli digital electronic ignition system integrated in engine control system, with one spark plug per cylinder and stick-coil type coils
Starting:	Electric
Exhaust:	4 into 2 into 1 layout, single oxygen sensor, lateral single silencer with ECU-controlled bypass valve and integrated trivalent catalytic converter (Euro 3)
Alternator:	Flywheel mounted 450W alternator with rare earth magnets
Lubrication:	Wet sump lubrication system with oil radiator and two oil pumps (lubrication and cooling)
Max Power:	124.7 kW / 167.3 hp@ 11500 rpm
Max Torque:	111.5 Nm / 11.4 kgf-m 82.2 lb/ft @ 9500 rpm
Clutch:	Multiplate wet clutch
Transmission:	6 Speed
Gear Ratio:	1st: 39:15 (2,600) / 2nd: 33:16 (2.063) / 3rd: 34:20 (1,700) / 4th: 32:22 (1,455) / 5th: 34:26 (1,308) / 6th: 33:27 (1,222); Gear lever with Aprilia Quick Shift electronic system (aQS)
Primary Drive:	Straight cut gears and integrated flexible coupling, drive ratio: 73:44 (1,659)
Final Drive:	Chain, drive ratio: 42:16 (2,625)
Traction Management::	APRC System (Aprilia Performance Ride Control), which includes Traction Control (aTC), Wheelie Control (aWC), Launch Control (aLC), all of which can be configured and deactivated independently.
Frame:	Aluminum dual beam chassis with pressed and cast sheet elements. Steering Damper: Sachs
Front Suspension:	Sachs upside-down one by one fork, stanchions 43 mm. Forged aluminum feet for radial calliper mounting; Completely adjustable spring preload and hydraulic compression and rebound damping;
Front Wheel Travel:	120 mm / 4.7 in
Rear Suspension:	Double braced aluminum swingarm; mixed low thickness and sheet casting technology; Sachs piggy back monoshock with completely adjustable: spring preload and hydraulic compression and rebound damping. APS progressive linkage;
Rear Wheel Travel:	130 mm / 5.1 in
Front Brakes:	2 x Ø320 mm floating stainless steel discs with lightweight stainless steel rotor with 6 studs. Brembo monobloc radial callipers M432 with 4 horizontally opposed Ø32 mm pistons. Sintered pads. Axial pump master cylinder and metal braided brake hoses.
Rear Brakes:	Single Ø220 mm diameter disc, Brembo floating calliper with two Ø32 mm isolated pistons. Sintered pads. Pump with integrated tank and metal braided hose.
ABS:	Bosch 9MP, adjustable on 3 maps, featuring RLM strategy and disconnectable.
Wheels:	Cast aluminum wheels with 3 split spoke design
Front Wheel:	3.50 x 17
Rear Wheel:	6.00 x 17
Front Tyre:	120/70 ZR17
Rear Tyre:	190/55 ZR 17 (alternative: 190/50 ZR 17; 200/55 ZR 17)
Rake:	25.0°
Trail:	106.6 mm / 4.2 in
Dimensions:	Length: 2065 mm / 81.2 in Width: 800 mm / 31.4 in (at the handlebar) Height : 1090 mm / 42.9 in
Wheelbase:	1435 mm / 56.8 in
Seat Height:	833 mm / 32.8 in
Ground Clearance:	125 mm / 4.9 in
Dry Weight:	183 kg / 403.4 lbs
Fuel Capacity:	17 Liters / 4.5 gal
