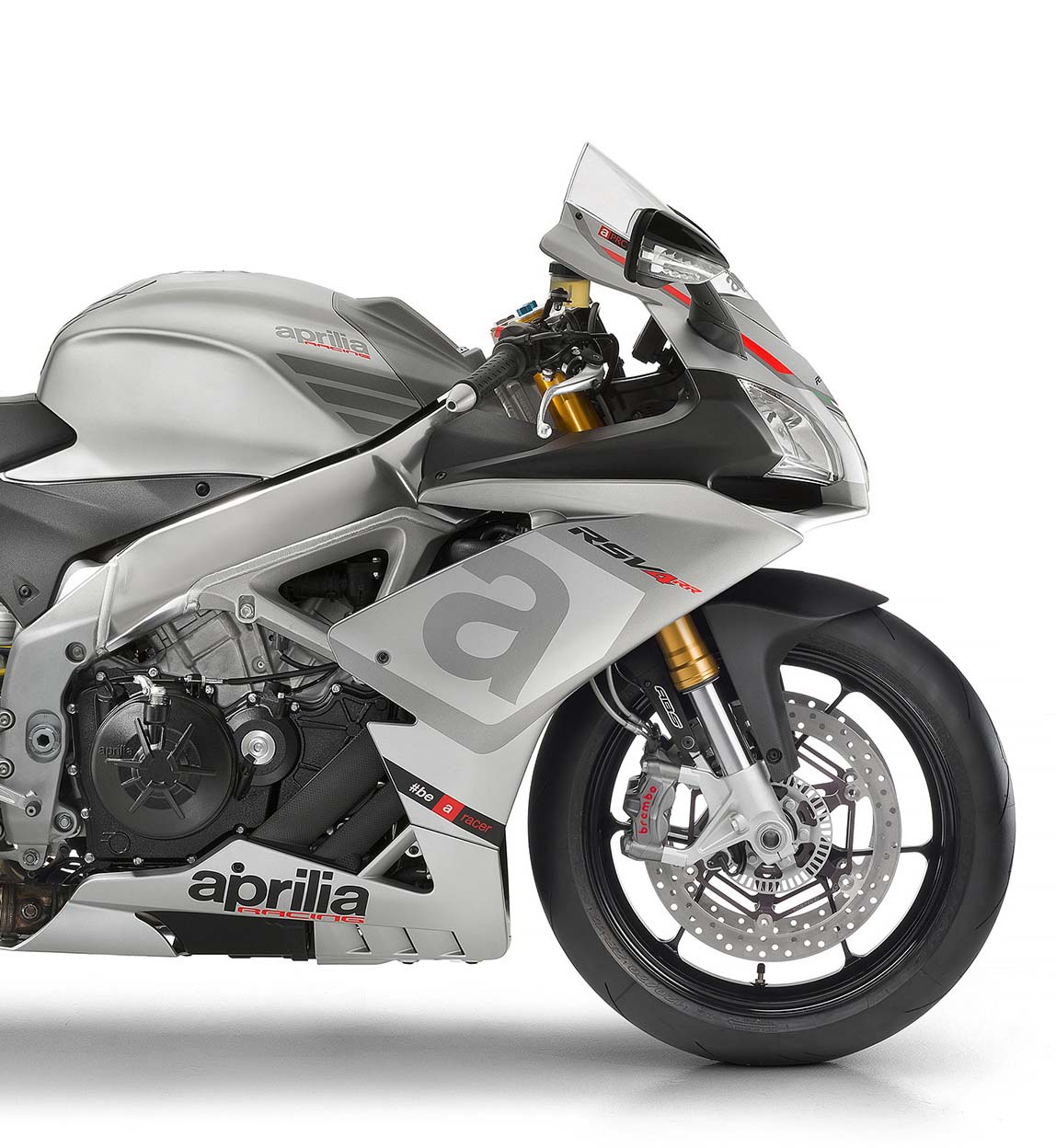

Aprilia RSV-4 RR (2016) technical specifications

Aprilia RSV-4 RR is produced in 2016. Engine is Four stroke, longitudinal 65° V four , DOHC, 4 valves per cylinder, displacement 999.6 cc / 61.0 cu-in , produces power 148 kW / 201 hp @ 13000 rpm and 117 Nm / 11.9 kgf-m / 86.2 lb-ft @ 10500 rpm. Aprilia RSV-4 RR top speed is 291.2 km/h / 180.9 mph. Aprilia RSV-4 RR weighs 182 kg / 401 lbs. Aprilia RSV-4 RR has 6 photos.

Technical specifications

+ Add to 'Compare list'

Model:	RSV-4 RR
Years:	2016
Engine:	Four stroke, longitudinal 65° V four , DOHC, 4 valves per cylinder
Capacity:	999.6 cc / 61.0 cu-in
Bore x Stroke:	78 x 52.3 mm
Cooling System:	Liquid cooled
Compression Ratio:	13.6:1
Induction:	Airbox with front dynamic air intakes. Variable length intake ducts controlled via ECU. 4 Marelli 48-mm throttle bodies with 8 injectors and latest generation Ride-by-Wire engine management. Choice of three different engine maps selectable by the rider with bike in motion: T (Track), S (Sport), R (Road) Magneti Marelli digital electronic ignition system integrated in engine control system, with one spark plug per cylinder and "stick-coil"-type coils
Ignition:	Electronic digital ignition integrated in the fuel management system.
Starting:	Electric
Exhaust:	4 into 2 into 1 layout, two oxygen sensor, lateral single silencer with engine control unit-controlled butterfly valve and integrated trivalent catalytic converter (Euro 3) Flywheel mounted 420W alternator with rare earth magnets
Alternator:	Flywheel mounted 420W alternator with rare earth magnets
Lubrication:	Wet sump. Two pumps (lubrication and cooling). Oil cooler.
Max Power:	148 kW / 201 hp @ 13000 rpm
Max Torque:	117 Nm / 11.9 kgf-m / 86.2 lb-ft @ 10500 rpm
Clutch:	Multi-disc oil bath with mechanical slipper system
Transmission:	6 Speed gearbox cassette type
Final Drive:	Chain
Gear Ratio:	1st: 39:15 (2.6) / 2nd: 33:16 (2,063) / 3rd: 34:20 (1.7) / 4th: 31:21 (1,476) / 5th: 31:23 (1,348) / 6th: 34:27 (1,259)
Primary drive:	Straight cut gears and integrated flexible coupling, drive ratio: 73:44 (1,659)
Secondary drive:	Secondary drive Chain: Drive ratio: 42:16 (2.625)
Frame:	Dual aluminium beam chassis with pressed and cast sheet elements
Front Suspension:	Sachs upside-down fork, 43-mm stanchions (with Tin surface treatment). Low profile forged aluminium radial caliper mounting bracket. Adjustable spring preload, hydraulic compression and rebound damping
Front Wheel Travel:	120 mm / 4.7 in
Rear Suspension:	Twin sided aluminium swingarm; mixed low thickness and sheet casting technology. Sachs monoshock adjustable: spring preload, wheelbase and hydraulic compression and rebound damping. APS progressive linkages.
Rear Wheel Travel:	130 mm / 5.1 in
Front Brakes:	2 x Ø320 mm diameter floating stainless steel disc with lightweight stainless steel rotor and aluminium flange with 6 pins. Brembo monobloc radial calipers with 4 x Ø30 mm opposing. Sintered pads. Radial pump and metal braided brake hose
Rear Brakes:	Single Ø220 mm diameter disc, Brembo floating caliper with two Ø32 mm isolated pistons. Pump with integrated tank and metal braided hose
Front Wheel:	3.5 x 17
Rear Wheel:	6.0 x 17
Front Tyre:	120/70 ZR17
Rear Tyre:	200/55 ZR 17 (alternative: 190/50 ZR 17; 190/55 ZR17)
Steering Angle:	24.5°
Trail:	105 mm / 4.1 in
Dimensions:	Length: 2040 mm / 80.3 in Width: 735 mm / 28.9 in (at the handlebar) Height : 1120 mm / 44.0 in
Ground Clearance:	130 mm / 5.1 in
Seat Height:	845 mm / 33.2 in
Dry Weight:	182 kg / 401 lbs
Fuel Capacity:	18.5 Liters / 4.9 US gal
Fuel Reserve:	4 Liters / 1.1 US gal
Standing ¼ Mile:	10.5 sec
Top Speed:	291.2 km/h / 180.9 mph
