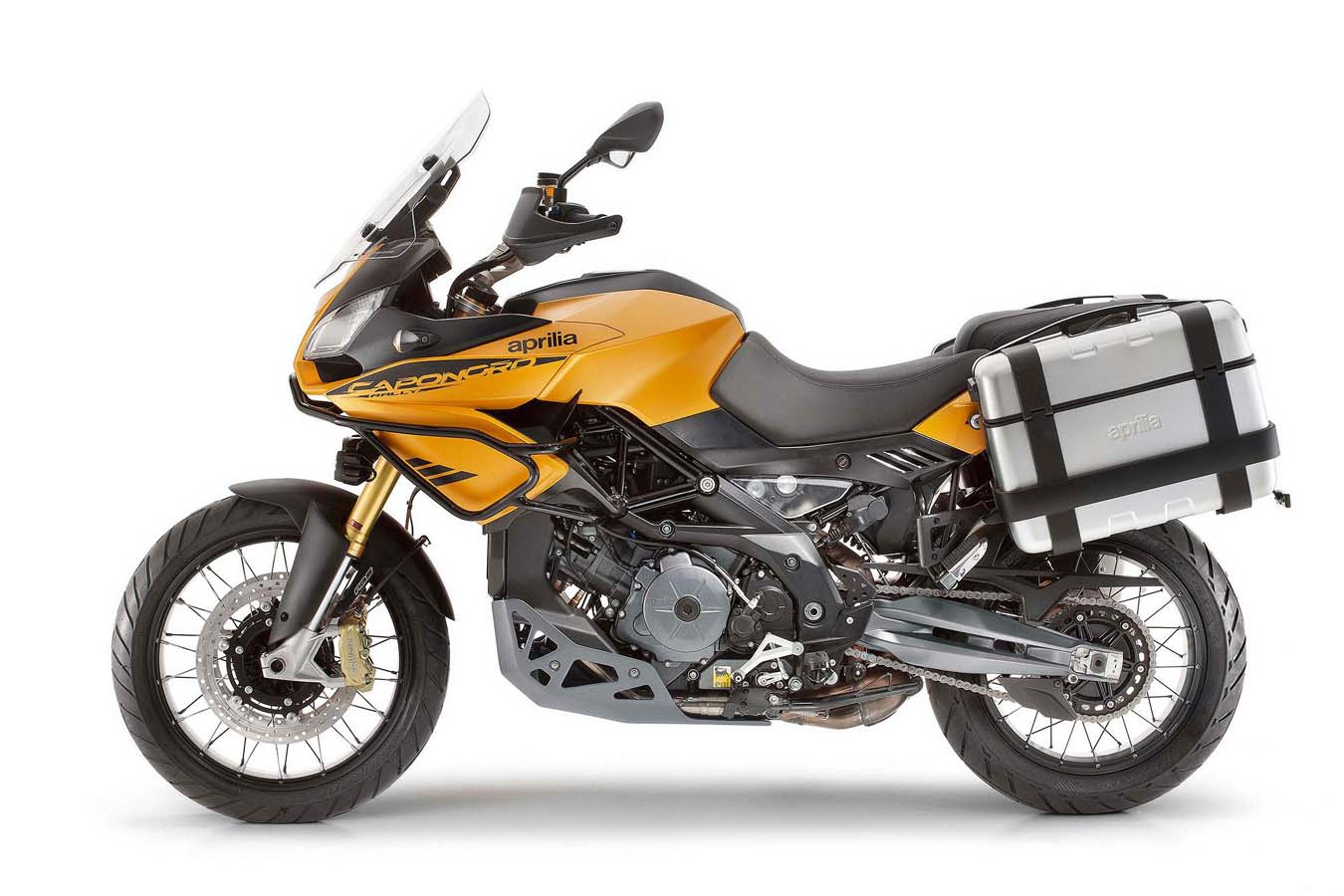

Aprilia Caponord 1200 Rally (2015) technical specifications

Aprilia Caponord 1200 Rally is produced in 2015. Engine is Four stroke, longitudinal 90°V twin, DOHC with mixed gear/chain timing system, 4 valves per cylinder Twin Spark, displacement 1197 cc / 73.0 cu in , produces power 125 hp / 91.9 kW @ 8500 rpm and 114 Nm / 11.6 kgf-m / 84.6 lb/ft @ 6500 rpm. Aprilia Caponord 1200 Rally weighs 214 kg / 471.7 lbs 228kg / 502 lbs Travel Pack. Aprilia Caponord 1200 Rally has 5 photos.

Technical specifications

+ Add to 'Compare list'

Model:	Caponord 1200 Rally
Years:	2015
Engine:	Four stroke, longitudinal 90°V twin, DOHC with mixed gear/chain timing system, 4 valves per cylinder Twin Spark
Capacity:	1197 cc / 73.0 cu in
Bore x Stroke:	106 x 67.8 mm
Cooling System:	Liquid cooled
Compression Ratio:	12.0 ± 0.5 : 1
Lubrication:	Wet sump
Exhaust:	2 into 1 exhaust system in 100% stainless steel with three-way catalytic converter and lambda probe
Induction:	Integrated engine management system. Injection with triple map Ride by Wire throttle management: Sport (S), Touring (T), Rain (R)
Ignition:	Digital electronic, integrated with the injection, two spark plugs per cylinder
Alternator:	690 W/6000 rpm
Starting:	Electric
Max Power:	125 hp / 91.9 kW @ 8500 rpm
Max Torque:	114 Nm / 11.6 kgf-m / 84.6 lb/ft @ 6500 rpm
Clutch:	Multiple discs in oil bath, hydraulically operated
Transmission:	6 Speed
Final Drive:	Chain.
Drive Ratio:	17/42
Gear Ratio:	1st 14:36 / 2nd 17/:32 / 3rd 20:30 / 4th 22:28 / 5th 23:26 / 6th 24:25
Frame:	Modular tubular steel frame fastened to aluminum side plates by high strength bolts. Removable steel rear
Front Suspension:	Sachs Ø43 mm upside-down front fork with fully adjustable compression and rebound damping and spring preload.
Front Wheel Travel:	167 mm / 6.5 in
Rear Suspension:	Sachs hydraulic shock absorber with adjustable rebound and preload
Rear Wheel Travel:	150 mm / 5.9 in
Front Brakes:	2x Ø320 mm stainless steel floating discs. Brembo four-piston radial callipers. Metal braided brake hoses.
Rear Brakes:	Single Ø240 mm stainless steel disc. Single piston Brembo caliper. Metal braided brake hose. Continental two channel ABS system and Aprilia Traction Control (ATC).
Wheels:	Lightweight aluminium alloy with laced wire spokes
Front Tyre:	120/70 -R19
Rear Tyre:	170/60 -R17
Rake:	26.1°
Trail:	125 mm / 4.9 in
Dimensions:	Length 2245 mm / 88.3 in Height 1440 mm / 56.6 in
Wheelbase:	1564.6 mm / 61.6 in
Seat height:	840 mm / 33.0 in
Dry Weight:	214 kg / 471.7 lbs 228kg / 502 lbs Travel Pack
Fuel Capacity:	24 Liters / 6.34 US gal
Fuel Reserve:	5 Litres / 1.3 US gal
