Technical specifications
|
| Model: |

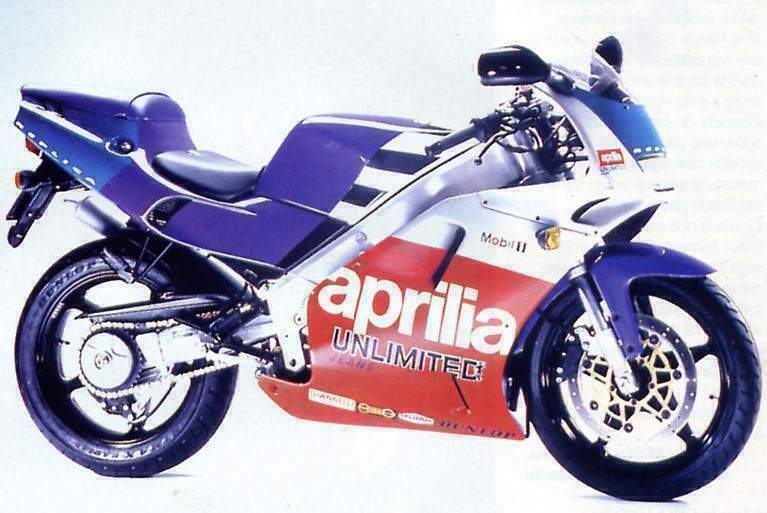

AF1 125 Reggiani Replica |
| Years: |
1991 |
|
Engine:
|
Two stroke, single cylinder light alloy and barrel with GILNISIL surface coating
|
|
Capacity:
|
124.7 cc / 7.6 cu in
|
|
Bore x Stroke:
|
54 x 54.5 mm
|
|
Compression Ratio:
|
13.6:1
|
|
Cooling System:
|
Liquid cooled
|
|
Induction:
|
Dell'Orto Ø 34mm flat slide carburetor
|
|
Ignition:
|
Electronic
|
|
Starting:
|
Electric
|
|
Max Power:
|
22.3 kW / 30 hp @ 8800 rpm
|
|
Max Torque:
|
19.6 Nm / 2.0 kgf-m / 14.5 lb-ft @ 10000 rpm
|
|
Transmission:
|
6 Speed
|
|
Final Drive:
|
Chain
|
|
Front Suspension:
|
Upside down fork, Ø 38 mm
|
|
Rear Suspension:
|
Aprilia Progressive System with hydraulic single shock-absorber, 1120mm wheel travel
|
|
Rear Wheel Travel:
|
120 mm / 4.7 in
|
|
Front Brakes:
|
Single Ø 320 mm disc, 4 piston caliper
|
|
Rear Brakes:
|
Single Ø 240 mm disc, 2 piston caliper
|
|
Front Tyre:
|
100/80 -17
|
|
Rear Tyre:
|
140/70 -17
|
|
Seat Height:
|
800 mm / 31.5 in
|
|
Dry Weight:
|
114 kg / 251 lbs
|
|
Wet Weight:
|
140 kg / 309 lbs
|
|
Fuel Capacity:
|
14.5 Litres / 3.8 US gal
|
|
Consumption Average:
|
5.9 L/100 km / 17 km/l / 40 US mpg
|
|
Braking 60 km/h / 37 mph - 0:
|
13.6 m / 44.6 ft
|
|
Braking 100 km/h / 62 mph - 0:
|
37.1 m / 122 ft
|
|
Standing ¼ Mile:
|
14.5 sec / 144.2 km/h / 90 mph
|
|
Top Speed:
|
168.2 km/h / 104.5 mph
|
