Technical specifications
|
| Model: |

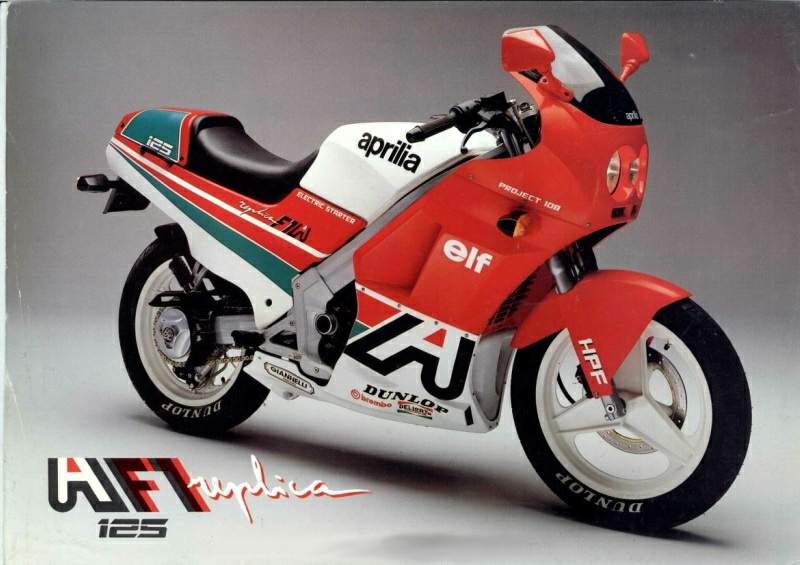

AF1 125 Project 108 Replica |
| Years: |
1988 |
|
Engine:
|
Two stroke, single cylinder, light alloy, barrel with Gilnisil coating
|
|
Capacity:
|
124.7 cc / 7.6 cu in
|
|
Bore x Stroke:
|
54 x 54.5 mm
|
|
Compression Ratio:
|
15.5:1
|
|
Cooling System:
|
Liquid cooled
|
|
Induction:
|
Dell'Orto carburetor, Ø 28 mm
|
|
Ignition:
|
Electronic
|
|
Starting:
|
Electric
|
|
Max Power:
|
21.6 kW / 29 hp @10500 rpm
|
|
Max Torque:
|
18.6 Nm / 1.9 kgf-m / 13.7 lb-ft @ 10000 rpm
|
|
Transmission:
|
6 Speed
|
|
Final Drive:
|
Chain
|
|
Front Suspension:
|
Telescopic fork, Ø 40 mm, 4-way anti-drive adjustable
|
|
Front Wheel Travel:
|
120 mm / 4.7 in
|
|
Rear Suspension:
|
Aprilia progressive mono shock system
|
|
Rear Wheel Travel:
|
120 mm / 4.7 in
|
|
Front Brakes:
|
Single Ø 320 mm disc, 4 piston caliper
|
|
Rear Brakes:
|
Single Ø 240mm disc, 2 piston caliper
|
|
Front Tyre:
|
100/80-17
|
|
Rear Tyre:
|
120/80-17
|
|
Seat Height:
|
800 mm / 31.5 in
|
|
Dry Weight:
|
120 kg / 265 lbs
|
|
Wet Weight:
|
134.6 kg / 297 lbs
|
|
Fuel Capacity:
|
20 L / 5.3 US gal
|
|
Consumption Average:
|
4.7 L/100 km / 21.5 km/l / 51 US mpg
|
|
Braking 60 km/h / 37 mph - 0:
|
13.3 m / 43.6 ft
|
|
Braking 100 km/h / 62 mph - 0:
|
37.6 m / 123 ft
|
|
Standing ¼ Mile:
|
15.1 sec / 141.8 km/h / 88.1 mph
|
|
Top Speed:
|
169.1 km/h / 105.1 mph
|
|
Colours:
|
Red/white
|
