Aprilia AF1 125 Project 108 Replica (1988) technical specifications

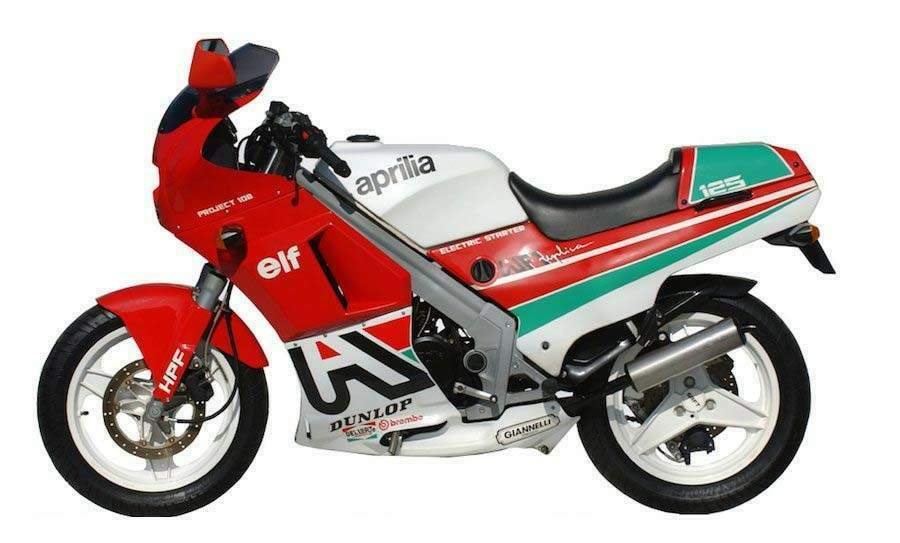

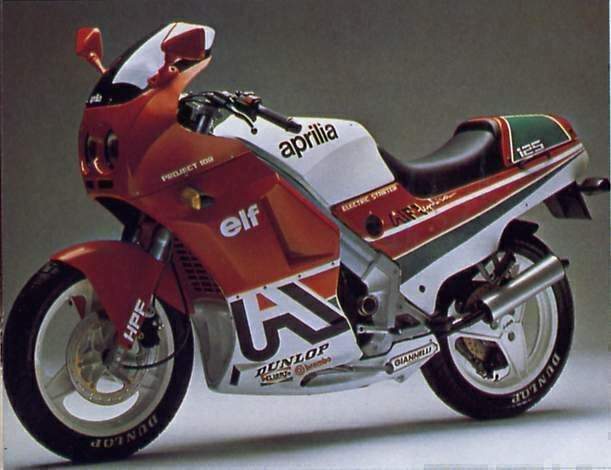

Aprilia AF1 125 Project 108 Replica is produced in 1988. Engine is Two stroke, single cylinder, light alloy, barrel with Gilnisil coating, displacement 124.7 cc / 7.6 cu in , produces power 21.6 kW / 29 hp @10500 rpm and 18.6 Nm / 1.9 kgf-m / 13.7 lb-ft @ 10000 rpm. Aprilia AF1 125 Project 108 Replica top speed is 169.1 km/h / 105.1 mph. Aprilia AF1 125 Project 108 Replica weighs 120 kg / 265 lbs. Aprilia AF1 125 Project 108 Replica has 3 photos.
Technical specifications
+ Add to 'Compare list'| Model: | AF1 125 Project 108 Replica |
| Years: | 1988 |
| Engine: | Two stroke, single cylinder, light alloy, barrel with Gilnisil coating |
| Capacity: | 124.7 cc / 7.6 cu in |
| Bore x Stroke: | 54 x 54.5 mm |
| Compression Ratio: | 15.5:1 |
| Cooling System: | Liquid cooled |
| Induction: | Dell'Orto carburetor, Ø 28 mm |
| Ignition: | Electronic |
| Starting: | Electric |
| Max Power: | 21.6 kW / 29 hp @10500 rpm |
| Max Torque: | 18.6 Nm / 1.9 kgf-m / 13.7 lb-ft @ 10000 rpm |
| Transmission: | 6 Speed |
| Final Drive: | Chain |
| Front Suspension: | Telescopic fork, Ø 40 mm, 4-way anti-drive adjustable |
| Front Wheel Travel: | 120 mm / 4.7 in |
| Rear Suspension: | Aprilia progressive mono shock system |
| Rear Wheel Travel: | 120 mm / 4.7 in |
| Front Brakes: | Single Ø 320 mm disc, 4 piston caliper |
| Rear Brakes: | Single Ø 240mm disc, 2 piston caliper |
| Front Tyre: | 100/80-17 |
| Rear Tyre: | 120/80-17 |
| Seat Height: | 800 mm / 31.5 in |
| Dry Weight: | 120 kg / 265 lbs |
| Wet Weight: | 134.6 kg / 297 lbs |
| Fuel Capacity: | 20 L / 5.3 US gal |
| Consumption Average: | 4.7 L/100 km / 21.5 km/l / 51 US mpg |
| Braking 60 km/h / 37 mph - 0: | 13.3 m / 43.6 ft |
| Braking 100 km/h / 62 mph - 0: | 37.6 m / 123 ft |
| Standing ¼ Mile: | 15.1 sec / 141.8 km/h / 88.1 mph |
| Top Speed: | 169.1 km/h / 105.1 mph |
| Colours: | Red/white |
